Systeme Electric
ArtGallery 16A socket with grounding and shutters, quick-clamp terminal, basalt mechanism base SE GAL001445S Systeme Electric
SKU: GAL001445S
ETIM: EC000125
785 ₽
Get back 7 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse

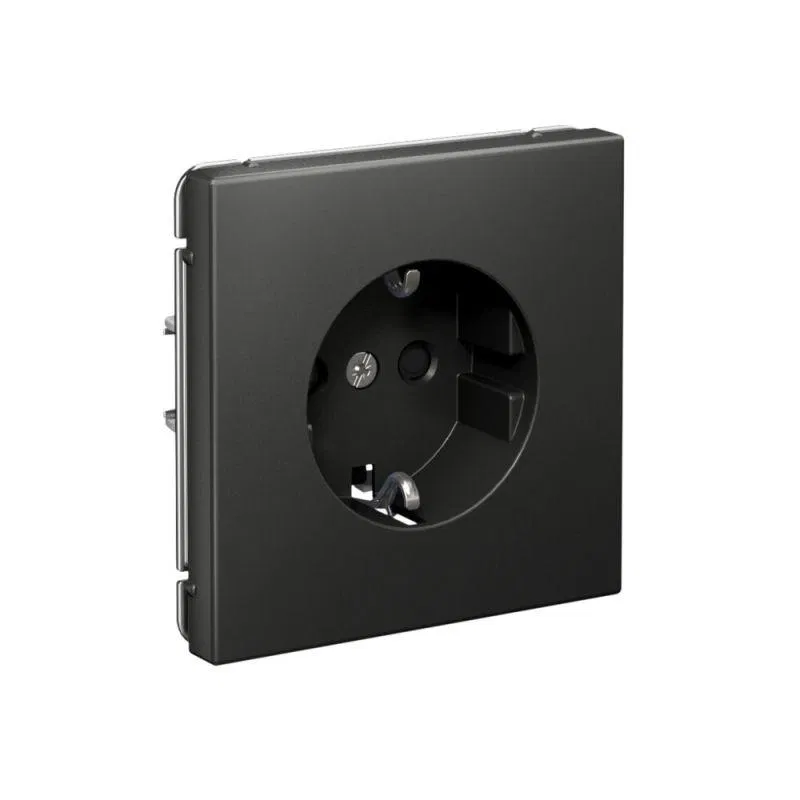

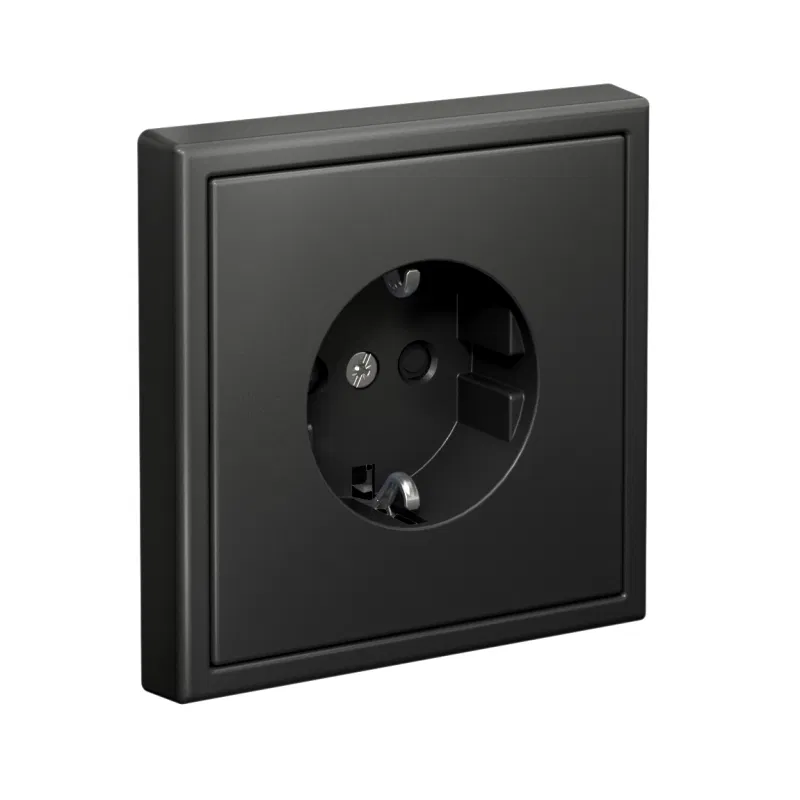

Systeme Electric ArtGallery series mechanism with quick-connect terminals in basalt color, single socket with grounding and shutters, suitable for 250 V networks, 16 A current.
A solution for connoisseurs of matte surfaces in interiors, which are pleasant to touch.
New quick-connect terminal technology allows to speed up installation by 25%.
Front parts are made of high-quality ABS plastic, resistant to scratches and UV radiation.
Best industrial design (based on the Minpromtorg 2023 award).
Special power supply
No special power supply required
RAL number (similar)
7021
Antibacterial
No
Supplied with plug (connector)
No
Material type/grade
Thermoplastic

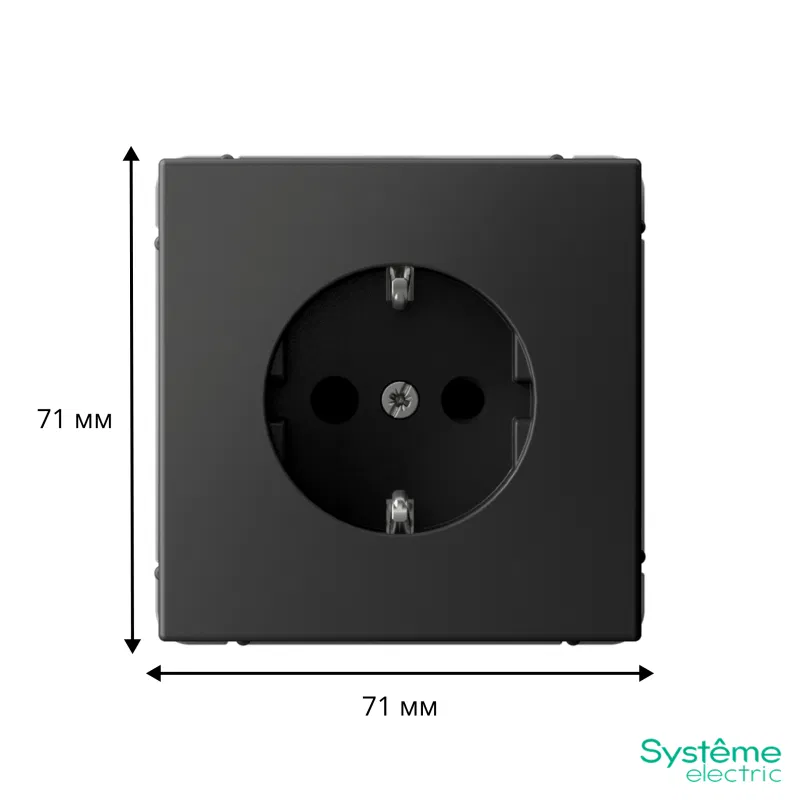

Device height
71 мм
Device depth
43.5 мм
Differential current protection
No
For heavy duty (per VDE)
No
Contact protection
Yes
Overvoltage protection
No
Protective surface coating
Untreated
Round protective grounding contact (pin)
Yes
Insulated installation
Yes
Design
With SCHUKO earthing contact
Number of active contacts (round)
2
Number of active contacts (flat)
0
Number of seats
1
Number of modules (modular system)
0
Number of switchable outlets
0
Number of phases
1
Material
Plastic
Extraction mechanism
No
Minimum depth of recessed mounting box
45 мм
Halogen-free
Yes
Rated voltage
250 В
Rated current
16 А
Rated leakage current
0 мА
Labelling surface
No
Suitable for ingress protection IP
IP20
Transparent
No
With built-in USB charger
No
With power switch
No
With lock
No
With orientation lighting
No
With hinged cover
No
With illumination (mains voltage indication)
No
With signal lamp
No
With low-current fuse
No
With through-channel function
No
With central insert
No
Symbols/indication
Without marking
With shutters (touch protection)
Yes
Mounting method
Flush-mounted
Connection method
Pluggable terminal
Fastening type
Clamp mounting/Screw mounting
Surface type
Matte
Impact resistance
IK03
Color
Black
Frequency at
60 Гц
Frequency from
50 Гц
Device width
71 мм
