Systeme Electric

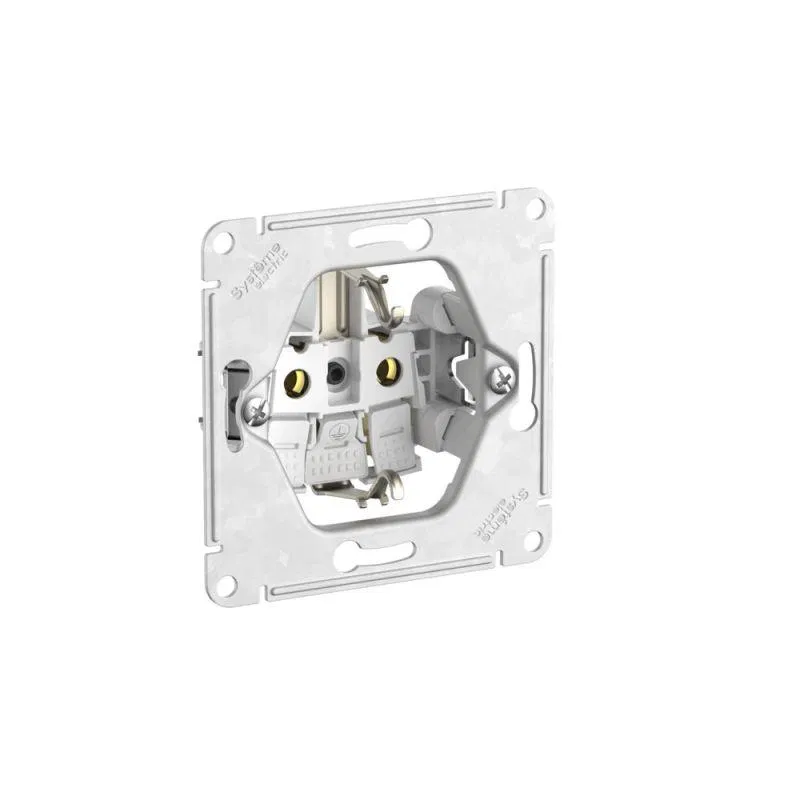

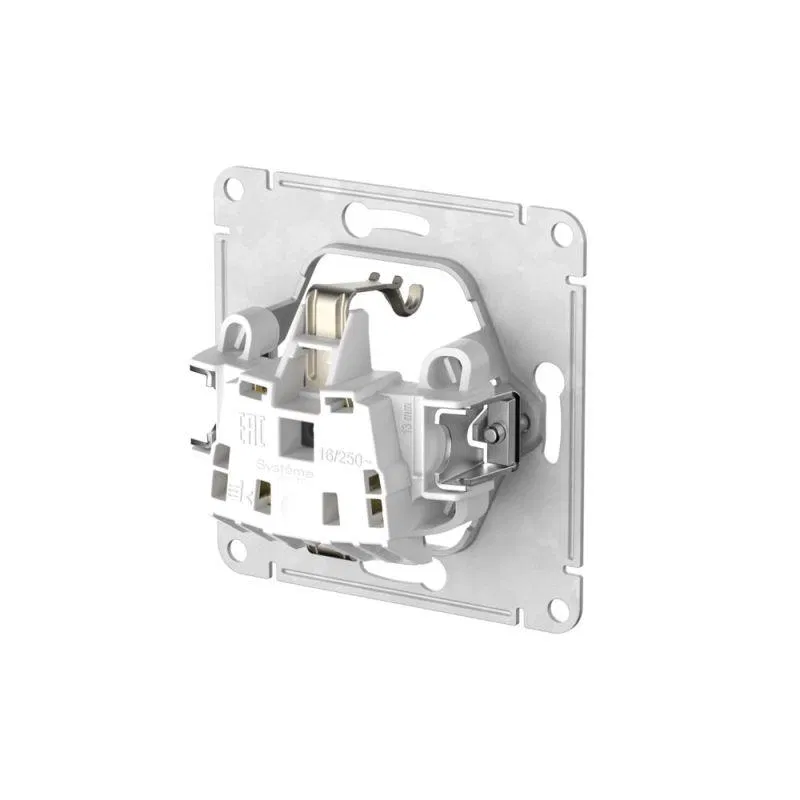

AtlasDesign Socket 16A with grounding shutters quick-clamp terminals pearl mechanism SE ATN000445S Systeme Electric
SKU: ATN000445S
ETIM: EC000125
390 ₽
Analogues by specifications
Stock by warehouse
Systeme Electric (formerly Schneider Electric) AtlasDesign series quick-connect terminal mechanism, pearl color, single socket with grounding and shutters, suitable for 250 V networks, 16 A current. With the new quick-connect terminals, the installation of sockets and switches has become much faster. Now connection does not require a screwdriver. Faceplates are made of high-quality ABS plastic, resistant to scratches and UV radiation.
Special power supply
No special power supply required
Antibacterial
No
Supplied with plug (connector)
No
Material type/grade
Thermoplastic
Device height
71 мм
Device depth
40.2 мм
Differential current protection
No
For heavy duty (per VDE)
No
Contact protection
Yes
Overvoltage protection
No
Protective surface coating
Untreated
Round protective grounding contact (pin)
Yes
Insulated installation
Yes
Design
With SCHUKO earthing contact
Number of active contacts (round)
2
Number of seats
1
Number of phases
1
Material
Plastic
Extraction mechanism
No
Minimum depth of recessed mounting box
44 мм
Halogen-free
Yes
Rated voltage
250 В
Rated current
16 А
Labelling surface
No
Suitable for ingress protection IP
IP20
Transparent
No
With built-in USB charger
No
With power switch
No
With lock
No
With orientation lighting
No
With hinged cover
No
With illumination (mains voltage indication)
No
With signal lamp
No
With low-current fuse
No
With through-channel function
No
With central insert
No
Symbols/indication
Without marking
With shutters (touch protection)
Yes
Mounting method
Flush-mounted
Connection method
Pluggable terminal
Fastening type
Clamp mounting/Screw mounting
Surface type
Matte
Impact resistance
IK01
Color
White
Frequency at
50 Гц
Frequency from
50 Гц
Device width
71 мм
