DKC
Modular socket, 2P+E, with shutter, Avanti, white cloud, 2 modules 4400002 DKC
SKU: 4400002
ETIM: EC000125
355 ₽
Price list (incl. VAT):
338 ₽
Available August 4
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
|
Transit warehouse
Available
|
2603 | шт | August 4 | August 4 | |
|
Manufacturer warehouse
Available
|
59938 | шт | August 5 | August 5 |
Select a warehouse to order

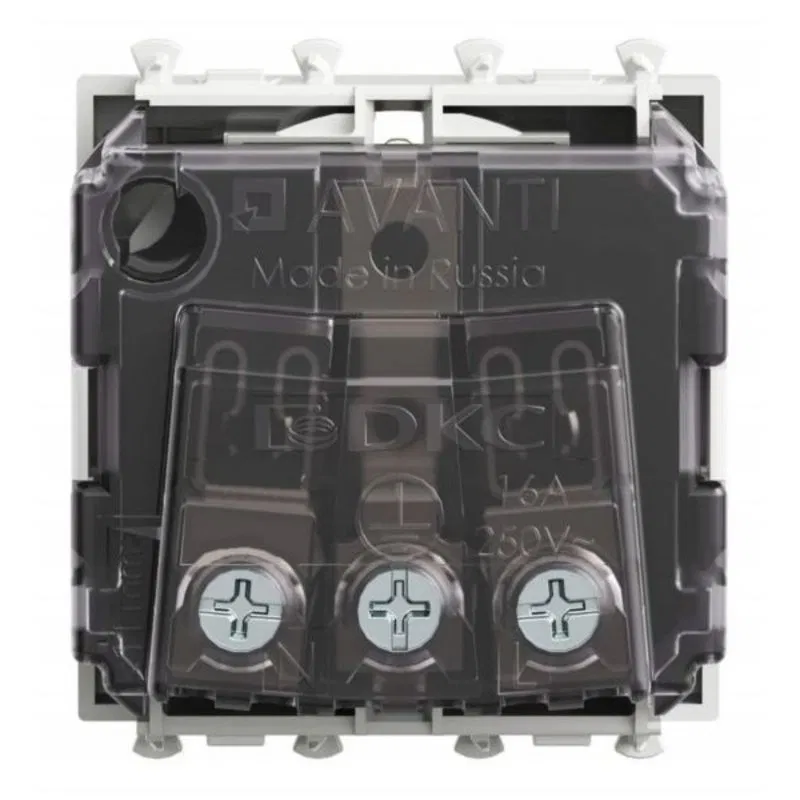

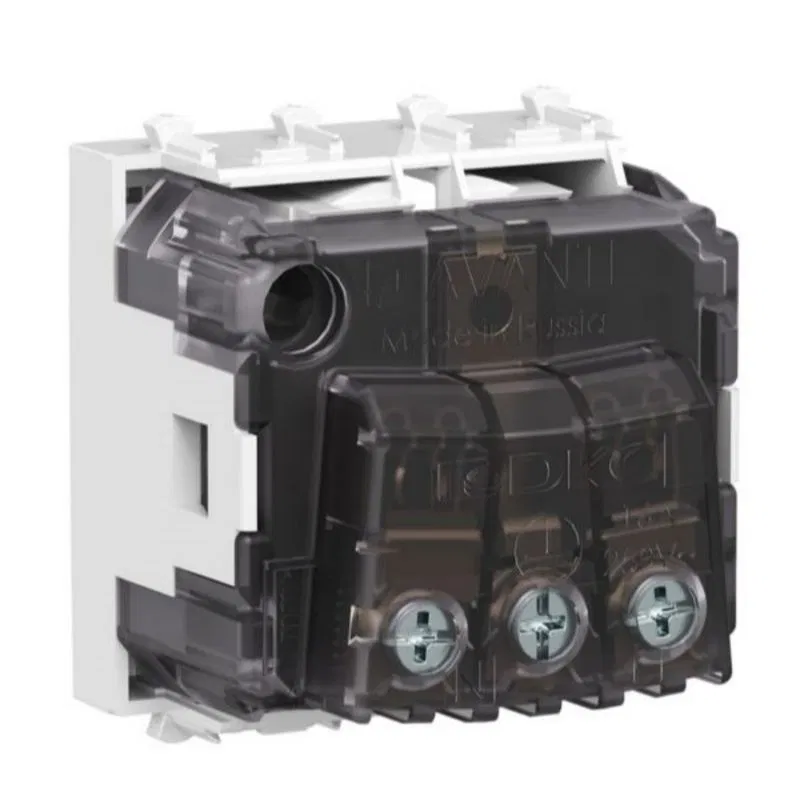

Electrical socket with grounding, with shutters and backlight capability, modular. Designed for installation in the "In-liner Front" plastic trunking system and the "Sotto" workstation organization system using support frames and "Avanti" frames (code 4400912, etc.). Characteristics: cable entry hole diameter — 3 mm (2 holes per terminal); screw terminals; protective shutters; cable stripping template — 11 mm; rated current — 16 A; rated voltage — 230 V; fixation in back boxes with a depth of at least 45 mm using a frame with lugs (code 4400802) and self-tapping screws. 2 modules. Color: "White Cloud". The manufacturer reserves the right to make changes to the appearance of the product that do not affect its functionality, safety, and reliability.
| Special power supply | No special power supply required |
| Antibacterial | Yes |
| Material type/grade | Thermoplastic |
| Device height | 44.9 мм |
| Device depth | 39.9 мм |
| Differential current protection | No |
| Overvoltage protection | No |
| Protective surface coating | Decorative |
| Design | With SCHUKO earthing contact |
| Number of seats | 1 |
| Number of modules (modular system) | 2 |
| Material | Plastic |
| Modular design | Yes |
| Halogen-free | Yes |
| Rated voltage | 230 В |
| Rated current | 16 А |
| Labelling surface | No |
| Suitable for ingress protection IP | IP20 |
| With power switch | No |
| With orientation lighting | Yes |
| With hinged cover | No |
| With illumination (mains voltage indication) | No |
| Symbols/indication | Without marking |
| With shutters (touch protection) | Yes |
| Mounting method | Surface mounting |
| Connection method | Screw terminal |
| Old URL | https://sissol.ru/shop/24391-rozetka-modulnaya-2pe-s-z-sh-avanti-beloe-oblako-2-modulya.html |
| Fastening type | Screw mounting |
| Surface type | Shiny |
| Color | White |
| Colour | White |
| Device width | 44.9 мм |
