EKF

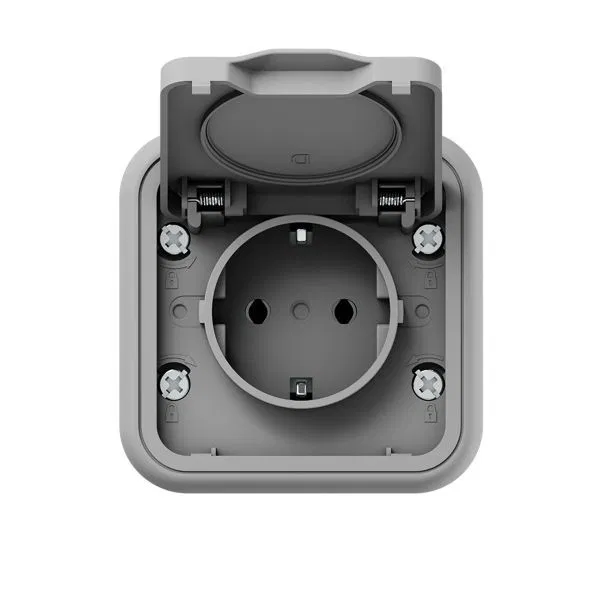

Socket outlet, 1-gang, surface-mounted, screw terminals grey, Bronto EKF BT1-SOG-111
SKU: BT1-SOG-111
ETIM: EC000125
458 ₽
Get back 4 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
Single-gang socket EKF Bronto collection is a reliable solution for lighting control in harsh conditions. IP55 protection rating protects against dust and water, and the housing material is resistant to UV radiation and mechanical damage. Screw terminals and airtight membrane entries ensure fast and reliable installation without extra effort — for both concealed and surface mounting.
Special power supply
No special power supply required
Antibacterial
No
Wireless local area network
No
Supplied with plug (connector)
No
Material type/grade
Thermoplastic
Device height
80 мм
Device depth
58 мм
Differential current protection
No
For heavy duty (per VDE)
No
Contact protection
Yes
Overvoltage protection
No
Protective surface coating
Untreated
Design
With earthing contact
Number of seats
1
Number of phases
1
Material
Plastic
Extraction mechanism
No
Minimum depth of recessed mounting box
45 мм
Modular design
No
Cable trunking installation
No
Halogen-free
Yes
Rated voltage
230 В
Rated current
16 А
Support ring
Yes
Palette
Grey
Labelling surface
No
Suitable for ingress protection IP
IP55
Transparent
No
With built-in USB charger
No
With power switch
No
With lock
No
With orientation lighting
No
With hinged cover
Yes
With illumination (mains voltage indication)
No
With signal lamp
No
With low-current fuse
No
With through-channel function
No
With central insert
No
Symbols/indication
Without marking/printing
With shutters (touch protection)
Yes
Mounting method
Surface mounting
Connection method
Screw clamp/terminal
Configuration type
Assembled with housing/frame
Fastening type
By expansion (tabs) and screws
Surface type
Matte
Impact resistance
IK01
Color
Grey
Frequency at
60 Гц
Frequency from
50...60 Гц
Device width
80 мм
