EKF

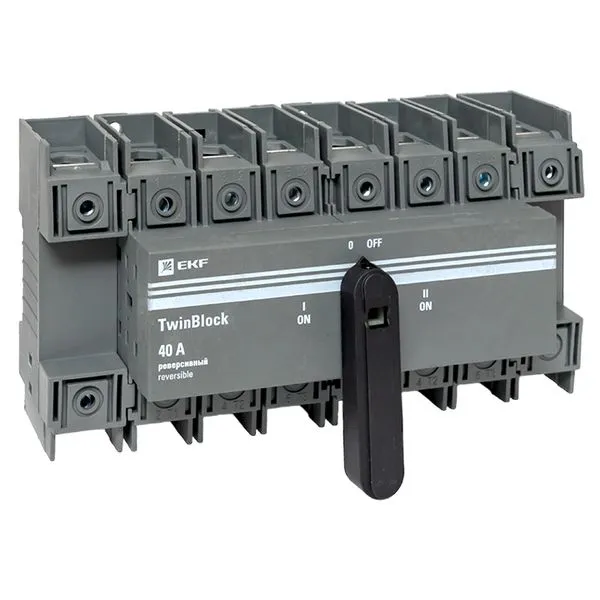

Reverser Switch 40A 4P with handle for direct installation TwinBlock EKF tb-s-40-4p-rev
SKU: tb-s-40-4p-rev
ETIM: EC000216
8,633 ₽
Get back 86 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
TwinBlock series switches are designed for passing rated currents, switching electrical circuits with a rated voltage of up to 690 V AC at frequencies of 50 and 60 Hz in electrical power distribution devices. TwinBlock series switch-disconnectors (models 40-800 A) have the option to connect an additional fourth pole. TwinBlock series reversing switches are designed for switching the load to a standby line with power disconnection (position indication on the switch I-0-II). The electrical characteristics of TwinBlock series reversing switches allow for switching under load between two power sources, even with currents having a high inductive component and motor starting currents.
Design as auxiliary/maintenance switch
Yes
Version as main switch
Yes
Design as protective switch
No
Version as emergency switching-off device
Yes
Number of auxiliary NO contacts
0
Number of auxiliary break contacts
0
Number of poles
4
Design
Mounting in distribution board
Maximum rated operational voltage Ue AC
690 В
Motor drive optional
No
Rated voltage at
690 В
Rated voltage from
400...690 В
Rated short-time withstand current Icw
.5 кА
Rated continuous current Iu
40 А
Suitable for base mounting
No
Suitable for intermediate mounting
Yes
Suitable for distribution board
Yes
Reversing design
Yes
Ingress protection (IP) of front side
IP20
Ingress protection (NEMA)
4
Product/component type
Load-break switch disconnector
Main electrical circuit connection type
Bolted connection
Control element type
Rotary button/knob
Conditional rated short-circuit current Iq
6.5 кА
Colour of control elements
Other
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
