EKF

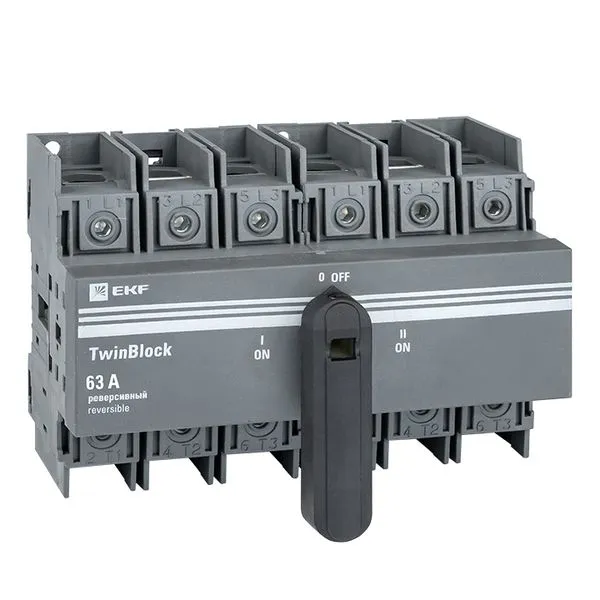

Reversing switch 63A 3P with handle for direct installation TwinBlock EKF tb-s-63-3p-rev
SKU: tb-s-63-3p-rev
ETIM: EC000216
7,181 ₽
Get back 71 ₽ in points
Analogues by specifications
Stock by warehouse
TwinBlock series switches are designed for passing rated currents, switching electrical circuits with a rated voltage of up to 690 V AC at frequencies of 50 and 60 Hz in electrical power distribution devices. TwinBlock series switch-disconnectors (models 40-800 A) have the option to connect an additional fourth pole. TwinBlock series reversing switches are designed for switching the load to a standby line with power disconnection (position indication on the switch I-0-II). The electrical characteristics of TwinBlock series reversing switches allow for switching under load between two power sources, even with currents having a high inductive component and motor starting currents.
Built-in motor drive
No
Design as auxiliary/maintenance switch
Yes
Version as main switch
Yes
Design as protective switch
No
Version as emergency switching-off device
Yes
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
0
Number of poles
3
Design
Mounting in distribution board
Maximum rated operational voltage Ue AC
690 В
Motor drive optional
No
Independent trip unit
No
Rated power in AC-23 operating mode, 400 V
39 кВт
Rated voltage at
690 В
Rated voltage from
400...690 В
Rated short-time withstand current Icw
1 кА
Rated continuous current Iu
63 А
Suitable for base mounting
No
Suitable for intermediate mounting
Yes
Suitable for distribution board
Yes
Reversing design
Yes
With interlock
Yes
Ingress protection (IP) of front side
IP00
Ingress protection (NEMA)
4
Product/component type
Load-break switch disconnector
Main electrical circuit connection type
Screw connection
Control element type
Swivel lever
Conditional rated short-circuit current Iq
13 кА
Colour of control elements
Other
