2,082 ₽
Analogues by specifications
MS modular switches are designed for manual switching on and off of low-voltage AC electrical circuits with a frequency of 50 Hz. They are intended for use in input-distribution devices of residential and public buildings, and in control points for individual loads. They can be used for switching circuits under load. Modular switches comply with GOST IEC 60947-3-2016.
Built-in motor drive
No
Design as auxiliary/maintenance switch
Yes
Version as main switch
Yes
Design as protective switch
No
Version as emergency switching-off device
Yes
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
0
Number of switches/changeover switches
1
Number of poles
3
Design
Mounting in distribution board
Maximum rated operational voltage Ue AC
400 В
Motor drive optional
No
Independent trip unit
No
Rated power in AC-23 operating mode, 400 V
71.8 кВт
Rated voltage at
690 В
Rated voltage from
400...690 В
Rated short-time withstand current Icw
1 кА
Rated continuous current Iu
63 А
Suitable for base mounting
No
Suitable for intermediate mounting
Yes
Suitable for distribution board
Yes
Reversing design
No
With interlock
No
Ingress protection (IP) of front side
IP20
Ingress protection (NEMA)
4
Product/component type
Load-break switch disconnector
Main electrical circuit connection type
Screw connection
Control element type
Swivel lever
Conditional rated short-circuit current Iq
6 кА
Colour of control elements
Black
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
586121 ₽
EKF ATS Device TSR1 2000A 3P EKF ats-tsr1-2000A-3p-pro
SKU: ats-tsr1-2000A-3p-pro
8083 ₽
Электрофидер Disconnector RPS-S-4/1 (copper left) Elektrofider 1915626A
SKU: 1915626А
71974 ₽

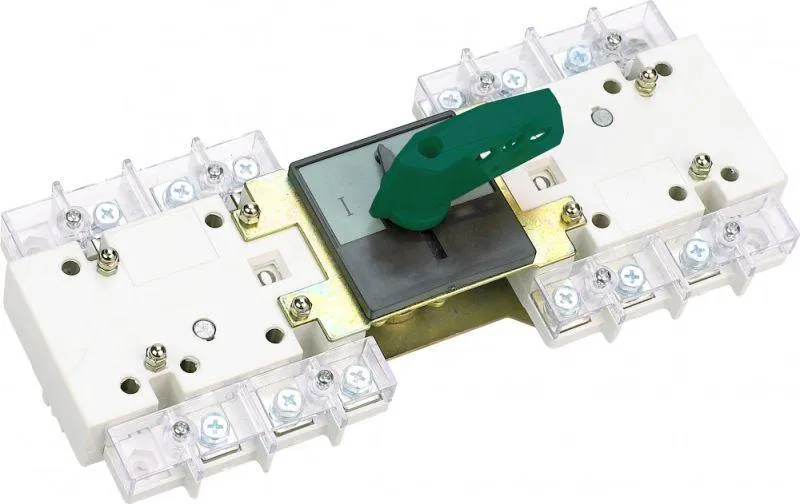

DEKraft Switch-disconnector 3p 500A VR-101 two directions symmetric DEKraft 40210DEK
