49 ₽
Get back 1% in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 20 шт
From our own stock you can buy 190 шт in any quantity. Above that — supply on order, in multiples of 20 шт.
Analogues by specifications
Stock by warehouse
Designed for introducing wires and cables into electrical switchgear to protect conductors from mechanical damage and protect the assembly itself from the penetration of dust and moisture at the entry point.
The cable gland consists of a body (1), a seal (2), a sealing nut (3), a washer (4) and a locknut (5). The seal and washer are made of neoprene.
The body, sealing nut and locknut are made of nylon. The installation of the cable gland is performed using a pipe (gas) wrench.
Glass fibre reinforced
No
Explosion-proof verified
No
Material type/grade
Polyamide
Box hole diameter
30
Thread length
12.3 мм
For armoured cable
Yes
For gas explosion hazardous areas
No
For cable diameter to
18 мм
For cable diameter from
12...18 мм
For dust explosion protection zone (EU ATEX directives)
No
Kink protection
No
Protective surface coating
Untreated
Design
Str./straight
Flat cable gland
No
Material
Plastic
Sealing ring material
Neoprene
Nominal thread size in inches NPT/Gas pipe thread
Other
Nominal metric/PG thread size
28.3
With locknut
Yes
IP protection rating
IP54
Resistance to ignition
650
Operating temperature to
80 град.C
Operating temperature from
-15...80 град.C
Thread type
PG
Sealing type
O-ring
Impact-resistant
No
Color
Grey
Colour
Grey
Thread pitch
1.59 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
694 ₽

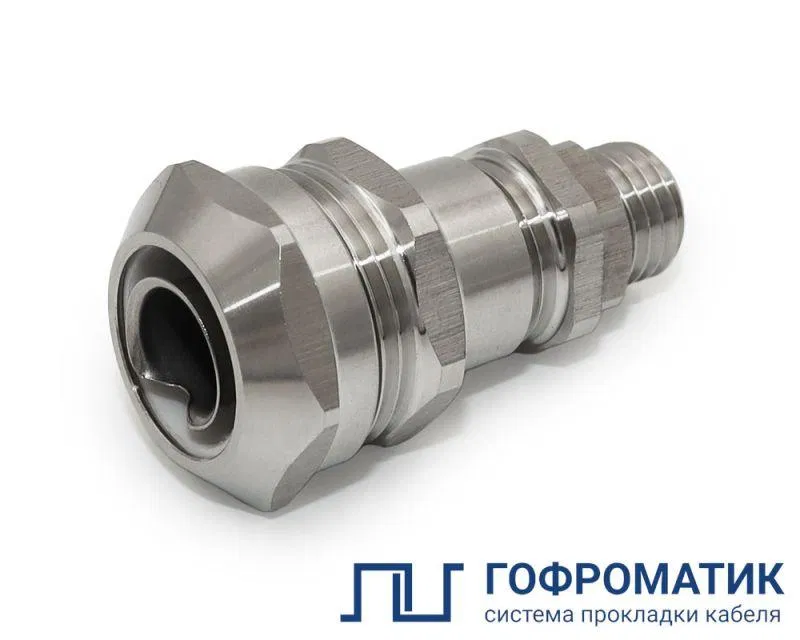

ГОФРОМАТИК Cable entry VKÉ1-LR-M32-25-L10 IP66/IP67/IP68 GOFROMATIK zeta34713
