IEK
Neutral busbar N on stand-type DIN insulator ShNI-6x9-12-S-S IEK YNN10-69-12P-K07
SKU: YNN10-69-12P-K07
ETIM: EC000485
1,900 ₽
Get back 19 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 10 шт
Analogues by specifications
Stock by warehouse
Busbars with insulator type SHNI are designed for electrical and mechanical connection of neutral, protective, and phase conductors. Structurally, SHNI busbars are made of a brass busbar mounted on a plastic insulator or in an insulator made of self-extinguishing plastic.
Normal operating conditions for the busbars are:
- ambient temperature from –40 to +50 C;
- average relative humidity not more than 90%.
Fastening screws
M4
Height
29.6 мм
Depth
22.5 мм
Design
Other
Number of cable outlets
12
Number of busbars
1
Maximum conductor cross-section
10 кв.мм
Material
Brass
Busbar purpose
N-neutral
Rated voltage
400 В
Rated current In
100 А
Working length of guide bar
85 мм
Busbar cross-section
6x9
Mounting method
On DIN rail
Operating temperature from
-40...50 град.C
Surface type
Untreated
Type version
DIN - post type insulator
Insulator colour
Blue
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
199 ₽
IEK Busbar N "zero" on two angle insulators with nickel coating ШНИ-6х9-10-У2-С IEK YNN10-10-C2-K07-N
SKU: YNN10-10-C2-K07-N
187 ₽

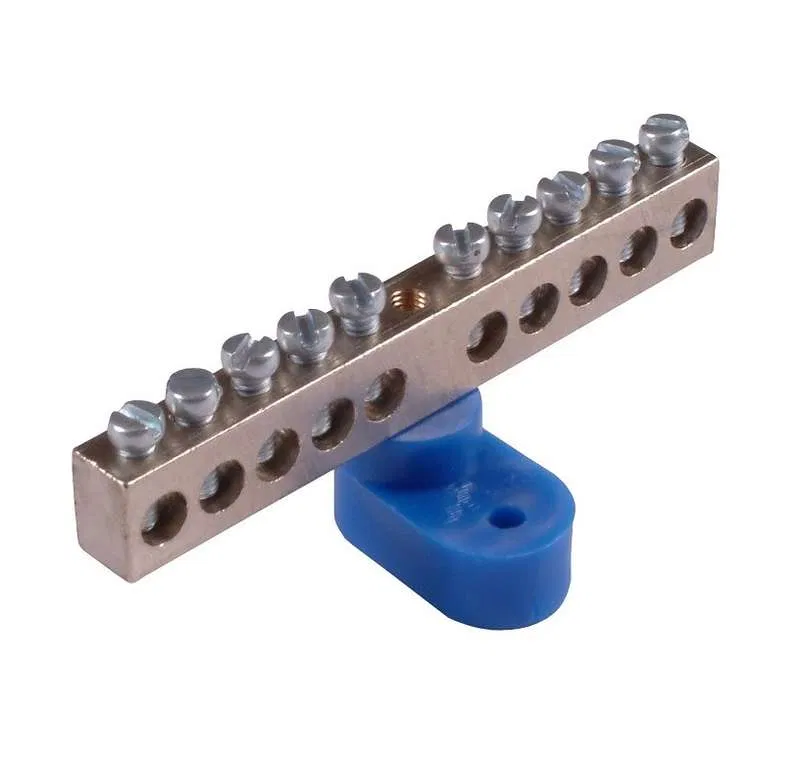

HEGEL Busbar "N" for 10 connections 63A on 2 insulators HEGEL Busbar _N_ 63.10.2
