Rexant
Floor telecommunications cabinet 19-inch 47U 600x600mm front door glass door rear metal collapsible grey RAL7035 Rexant 04-2304
SKU: 04-2304
ETIM: EC002501
107,117 ₽
Get back 1,071 ₽ in points
Analogues by specifications

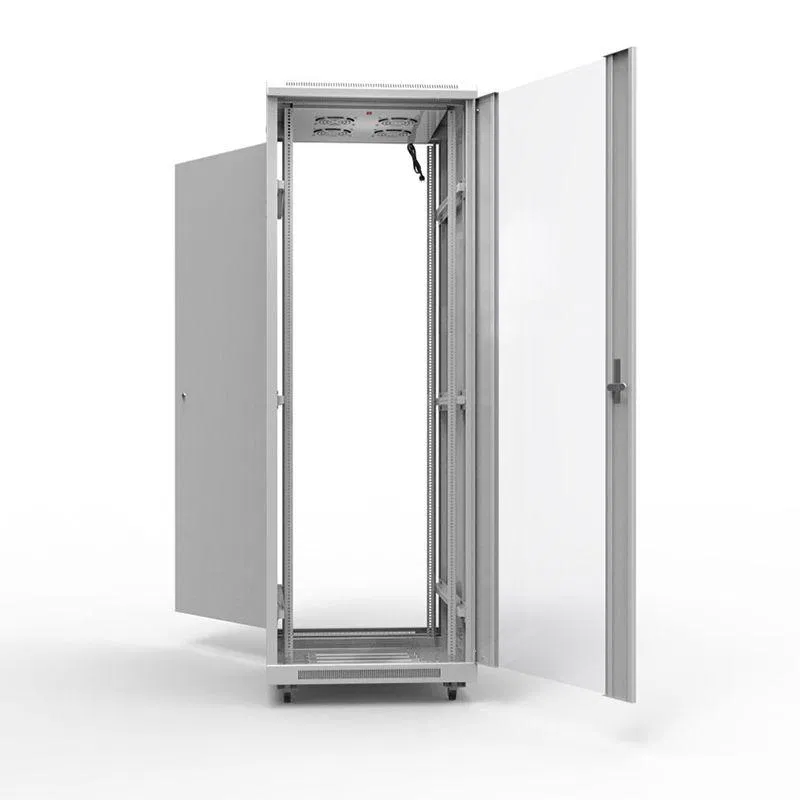

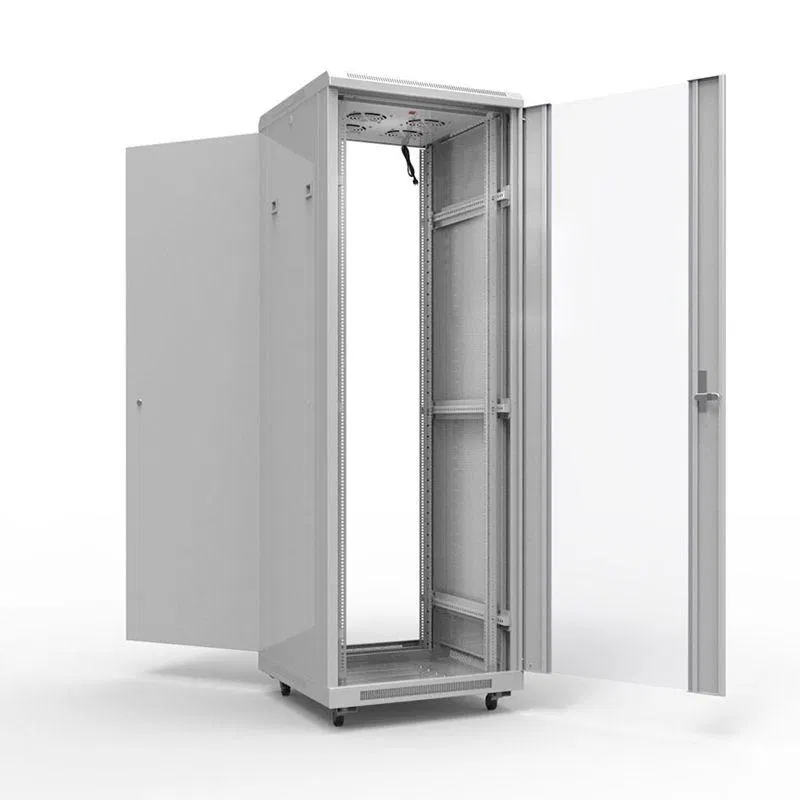

REXANT 47U floor cabinet is used for mounting active and passive 19" equipment, which can be installed on two or four mounting profiles. Supplied disassembled, consists of 2 parts.
The front door is made of 5 mm tinted impact-resistant glass in a metal frame.
The metal rear door is equipped with a lock with a folding handle. Doors can be installed to open to either the left or right side.
The top cover is equipped with removable panels for installing a fan module and for cable entry. The bottom also features removable panels for cable entry.
Removable side panels with latches provide convenient access to the equipment.
Doors, bottom, and top are made of 1.2 mm sheet steel; the frame is 2 mm.
Two pairs of 19” mounting rails are adjustable in depth and have markings in units (U).
Adjustable feet are included in the standard configuration.
Design characteristics:
Supplied disassembled in a convenient for transport corrugated cardboard box - (2 places);
Cabinet width - 600 mm;
Cabinet depth - 600 mm;
Cabinet height - 2277 mm;
Usable depth - 520 mm;
Color standard Ral7035;
Maximum load up to 800 kg;
Protection degree IP20;
Frame is made of 2 mm sheet steel, doors, bottom, and top are 1.2 mm;
Front door is made of 5 mm tinted impact-resistant glass in a metal frame;
Lock with a folding handle;
Door can be installed to open to the left or right side;
Rear door with a lock, side panels are removable with latches;
Two pairs of 19' rails are adjustable in installation depth;
Top cover is equipped with removable panels for installing a fan module;
Bottom and top are equipped with removable panels for cable entry.
Height
2277 мм
Depth
600 мм
Extended temperature range design
No
Material
Steel
RAL colour number
7035
Dismountable
Yes
With side walls
No
With rear door
No
With metal roof
No
With front door
No
IP protection rating
IP20
Surface type
Powder-coated
Color
Grey
Width
600 мм
