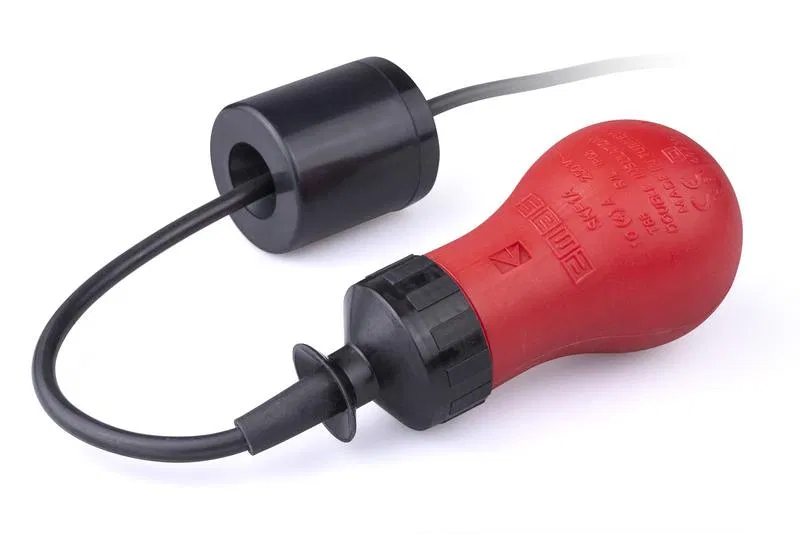

Level switch float. double. isol. not subject to wave influence 15m EMAS SKF1A-15

Float level switch "lamp", cable 15 m, IP68 Product: float level switch Type: lamp-shaped Feature: with standard weight Cable: 15 m Number of phases: 1 phase Contact current (Ie) 6 A (250 V AC) Utilization category AC15 Mechanical service life (min. cycles) 30,000 Electrical service life (min. cycles) 10,000 Operating frequency (on/off per hour) mech. 120 El. 120 Insulation voltage (Ui) 660 V Impulse withstand voltage (Uimp) 2.75 kV Dielectric strength (housing–contact) 2750 V AC Dielectric strength (contact–contact) 1890 V AC Insulation resistance 10 MOhm MIN. (500 V DC) Operating temperature: -15 / +80 °C Protection class: IP68 Contact material: AgNi Cable connection cross-section: 3*1 mm cable Series: SKF1 Cable type – PVC CABLE Easy installation and convenience of use Ability to adjust the required operating distance using a weight Thanks to the original design, it is fully isolated from water Contact structure with microswitch Possibility to supply products with different cable lengths
