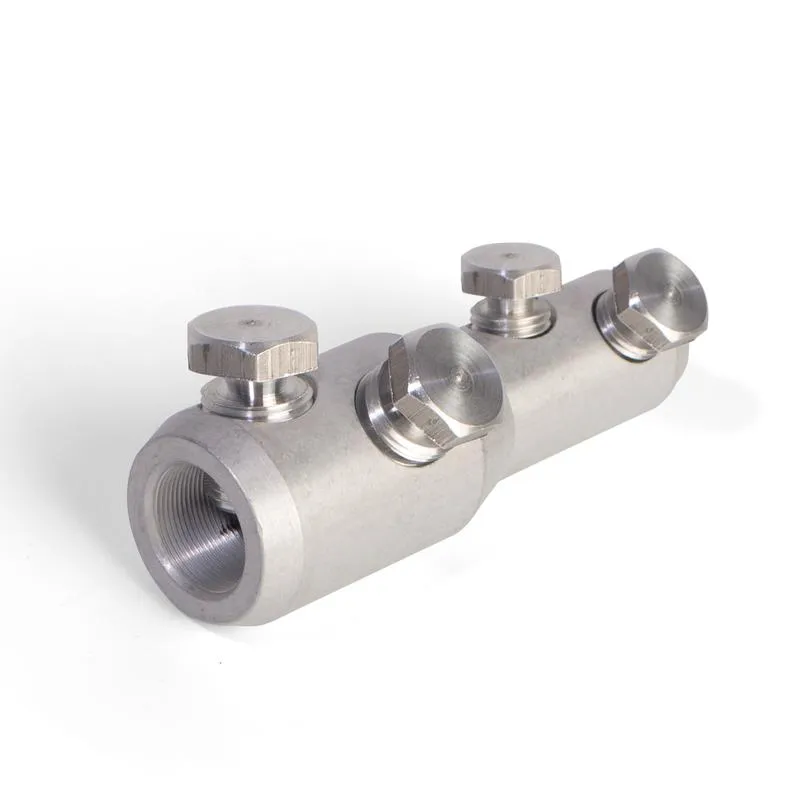

Bolted connector 4SB-150/240 65815 KVT

• Designed for connecting any type of cable conductors: aluminum and copper, round and sector, single-core and multi-wire • Each bolt connector is multi-size and designed for a range of cable cross-sections • Row arrangement of bolts on the connector body • Eccentric hole for the cable conductor in the connector body • Operating voltage: up to 1/10 kV • Housing and bolt material: special aluminum alloy • Coating: uncoated • Fastening to the conductor is carried out by tightening bolts with a breakaway head. The bolt heads break off upon reaching the set torque, ensuring optimal mechanical and electrical properties of the contact connection • The bolt design has several grooves — breakaway "necks", allowing the head to break off flush with or below the connector surface • Connectors have an internal structural partition that determines the depth of the cable conductor entry • Knurling on the internal surface of the cylindrical part of the connectors increases the area and mechanical strength of the contact connection • Each connector is embossed with marking indicating the nominal range of cable cross-sections and the manufacturer's logo • Installation tool: NMB-6 (KVT) kit • Recommended for installing heat-shrinkable sleeves and equipping repair and emergency services • The application ranges of bolt terminals and connectors coincide with the ranges of heat-shrinkable cable sleeves, making them an ideal addition for cable sleeve kit assembly
