IEK

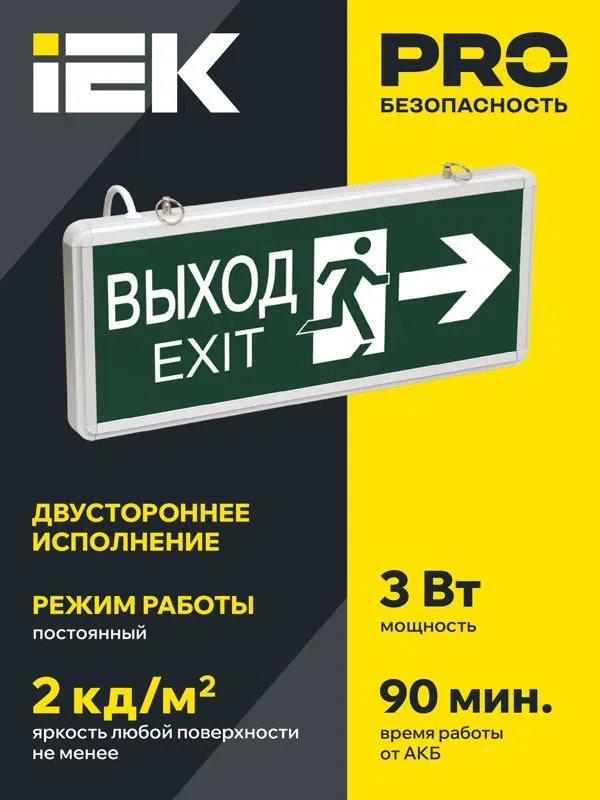

LED luminaire SSA 1003 "EXIT-EXIT" arrow/figure 3W emergency double-sided IEK LSSA-1003-003-K03
SKU: LSSA0-1003-003-K03
ETIM: EC000479
29,853 ₽
Get back 298 ₽ in points
Order multiple: 20 шт
Analogues by specifications
Stock by warehouse
Used to indicate emergency exits, as well as for various information purposes in rooms with high moisture and dust content.
Compliant with GOST R IEC 60598-1, GOST R IEC 60598-2-22.
Supplied with lamp
Yes
Weight
0.66 кг
Emergency operating time to
1.5 ч
Emergency operation time from
1.5 ч

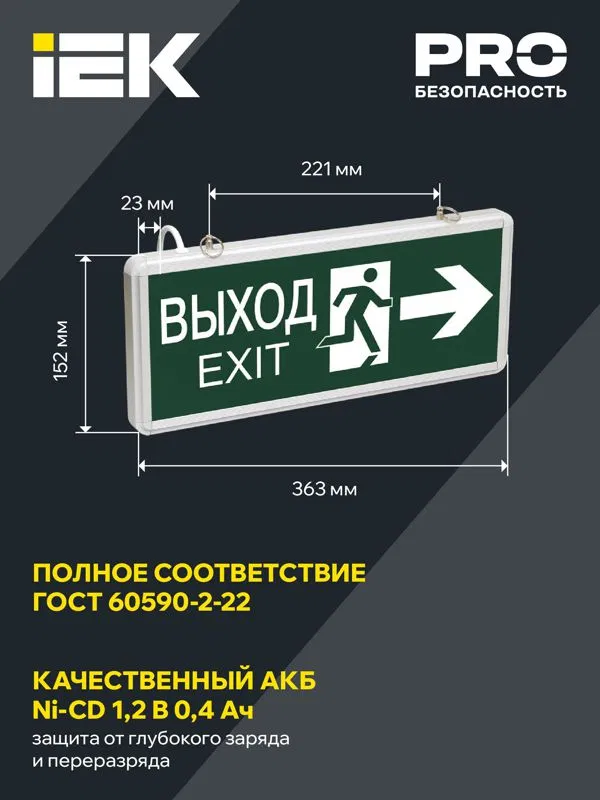

Height/depth
23.0 мм
Overall luminance
230
Length
363 мм
Length
363 мм
Starting current duration
35
Battery capacity
0.4 А.ч
Colour rendering index
60-69 (class 2B)
Electric shock protection class
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Light distribution class
P
Climatic version
UKhL3.1
Number of LEDs
6
Max. battery charging time
24
Maximum power
3.0 Вт
Housing material
Aluminum
Housing material
Aluminum
Diffuser/lampshade material
Clear glass (light-transmitting)
Lamp power
3.0 Вт
Rated battery voltage
1.2
Rated fuse current
1
Rated emergency operating time
1.50 ч
Rated voltage up to
230 В
Rated voltage from
230 В
Rated luminous flux
40 лм
Suitable for number of light sources
8
Power consumption
3.0 кВт
Suitable for marking
Other
Inrush current
0.007
Recognition distance
24 м
Luminous flux
40 лм
Luminous flux in emergency mode
40 %
Power supply system
Self-contained (individual battery)
Mounting method
Suspended
IP protection rating
IP20
Operating temperature from
-10...40 град.C
KSS type
D
Battery type
NiCd battery (nickel-cadmium)
Lamp type
LED light source
Lamp type
LED light source
Marking type
Single-/double-sided
Luminaire type
Double-sided
Connection diagram type
Maintained
Monitoring device
TEST Button
Control device
Electronic ballast
Housing color
Grey
Lamp base (holder)
No
Frequency (Hz)
50 Hz
Width
152.0 мм
