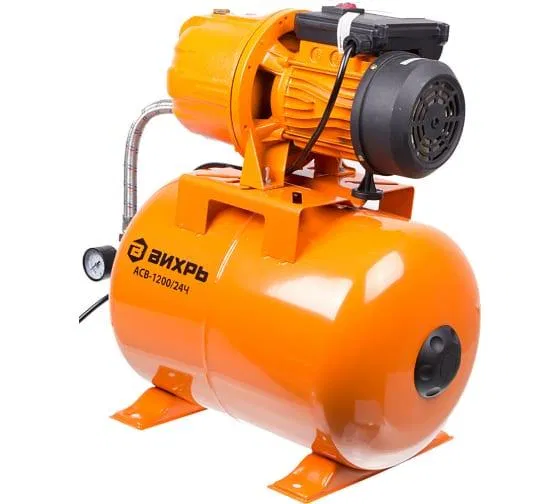

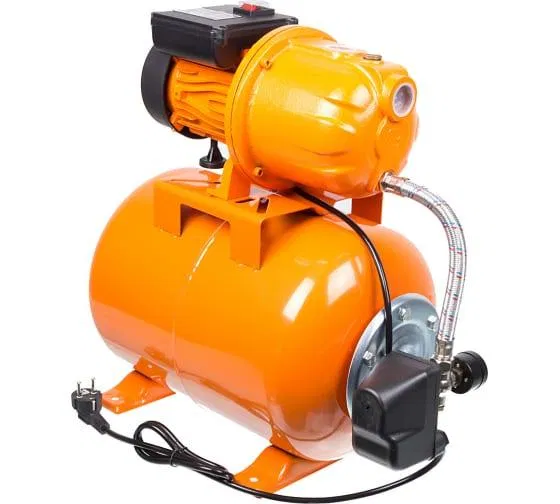

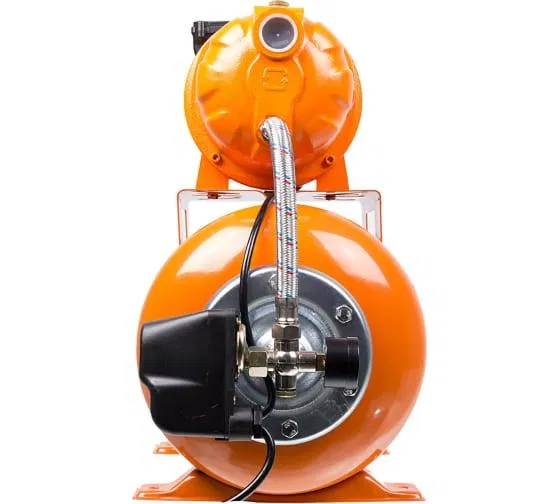

Autonomous water supply station ASV-1200/24CH Vikhr 68/1/9

POWER, W - 1200 TYPE - Surface NETWORK VOLTAGE, V - 220 FREQUENCY, HZ - 50 MAX. WATER TEMPERATURE, °C - 35 MAX. SUCTION DEPTH, M - 9 CAPACITY, L/MIN - 70 DIMENSIONS, CM - 76 x 41 x 62 PRESSURE TANK CAPACITY, L - 24 WEIGHT WITHOUT PACKAGING - 13.34 kg WEIGHT IN PACKAGE - 14.76 kg INLET PIPE DIAMETER, INCH - 1 MATERIAL - Cast iron OUTLET DIAMETER, INCH - 1 CURRENT CONSUMPTION, A - 5.5 HEAD HEIGHT, M - 45 The VIKHR ASV-1200/24CH pumping station is designed for uninterrupted water supply to cottages, summer houses, and farms. It maintains the required pressure in the water supply system in automatic mode, turning on and off independently as water is consumed. This model has sufficient power of 1200 W, a maximum suction depth of 9 meters, and a maximum water flow of 70 liters per minute. The pressure tank is spacious, with a capacity of 24 liters. The difference between the ASV-1200/24CH model and the ASV-1200/24N and ASV-1200/24 is that the ASV-1200/24N body is made of cast iron, and the maximum water head is higher - 45 meters. The electric motor of the pumping station is asynchronous, single-phase with a squirrel-cage rotor. The pump with a built-in ejector combines the advantages of centrifugal pumps with the practicality of self-priming pumps. The pump housing is made of glass-filled polypropylene with brass inserts for rigidity, as well as cast iron and stainless steel. To prevent wear of the threaded connections, the inlet and outlet openings have metal threads. The unit's pressure tank serves to accumulate water under pressure and smooth out water hammer effects. It consists of a steel reservoir with a replaceable membrane and has a pneumatic valve for charging compressed air. Advantages: Thermal protection included. In case of water supply failure or prolonged use at maximum load, the protective automation will de-energize the pump. Automatic start-up (pressure drop in ASV to 1.5 atm) and shut-off (pressure in the tank reaches 3 atm). Special ASV mountings for additional stability. Built-in internal ejector with a Venturi tube system allows pumping water with lower requirements for water purity and dissolved gases compared to conventional centrifugal pumps, and also provides a self-priming function. Presence of metal threads on the inlet and outlet openings.
