Emergency luminaire DPA 5044-3 continuous/non-continuous action compatible with UDTU 3h IP65 IEK LDPA4-5042-3-65-K01
SKU: LDPA4-5042-3-65-K01
ETIM: EC001957
13,945 ₽
Get back 139 ₽ in points
Analogues by specifications
Stock by warehouse

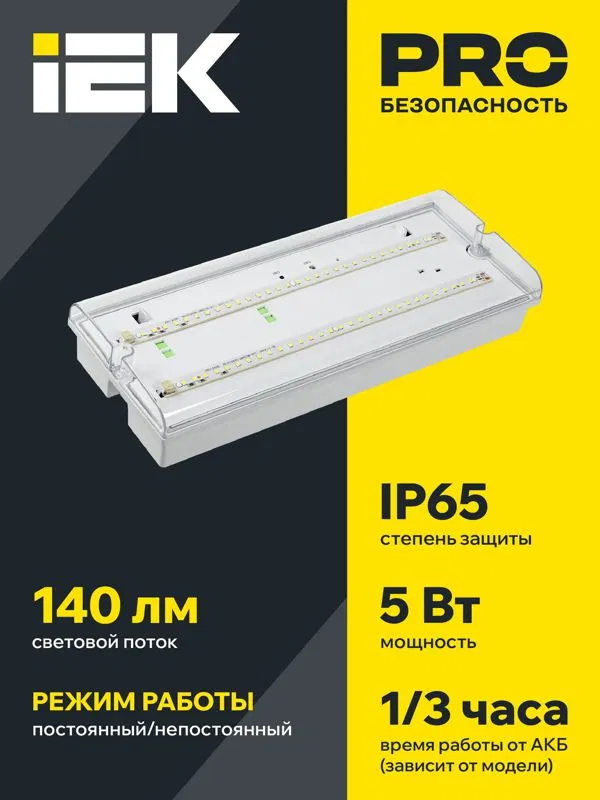

DPA 5044 emergency light is used to mark evacuation exits, as well as for various information purposes in premises with a high level of moisture and dust.

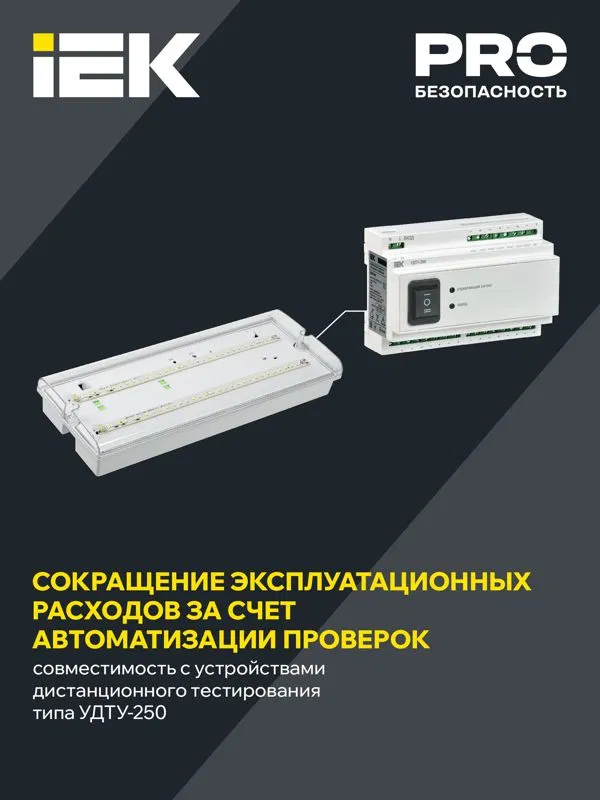

Used for lighting evacuation routes, corridors, passages, and emergency doors. Compatible with a remote testing and emergency lighting control device (UDTU), and is also equipped with a "Test" button for individual testing of the luminaire's functionality. Has universal connection (constant and non-constant action - depends on the circuit). Recognition range 16 m, power consumption during charging - 5 W. Complies with the requirements of GOST R IEC 60598-2-22 for emergency lighting.
Supplied with lamp
Yes
Emergency operating time to
3 ч
Emergency operation time from
3.0 ч

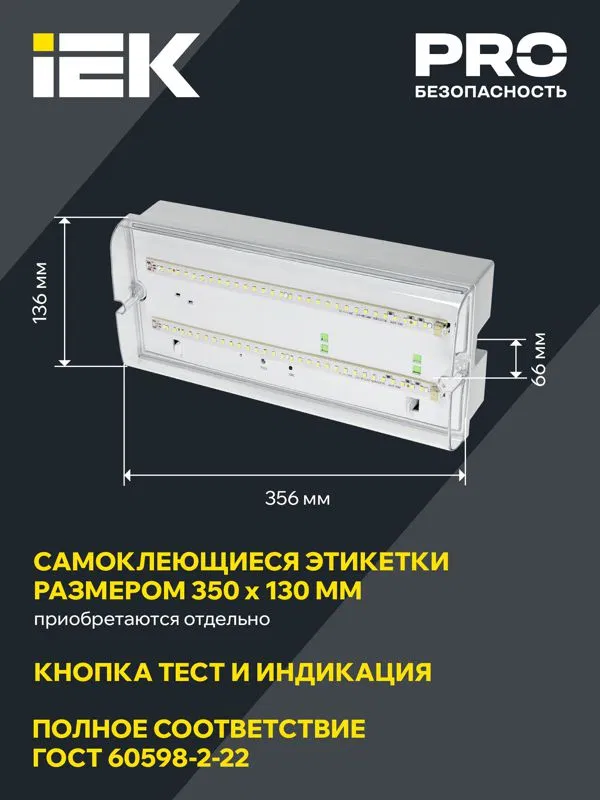

Height/depth
66.0 мм
AC operating voltage range
198...253
Length
356 мм
Length
356 мм
Battery capacity
1.8 А.ч
Protection against mechanical impact (ball impact)
No
Electric shock protection class
Please provide the text you would like me to translate. I am ready to translate your product data from Russian to English following all your specified rules.
Climatic version
UKhL3.1
Number of LEDs
60
Power factor
0.50
Max. battery charging time
24
Maximum power
5.0 Вт
Housing material
Plasticized PVC
Housing material
Plasticized PVC
Diffuser/lampshade material
Other
Lamp power
5.0 Вт
Rated battery voltage
4.8
Rated emergency operating time
3.00 ч
Rated voltage up to
230 В
Rated voltage from
230 В
Rated luminous flux
140 лм
Suitable for number of light sources
60
Power consumption
5.0 кВт
Suitable for marking
Sticker/label
Recognition distance
24 м
With connection to remote switch panel
Yes
Luminous flux
140 лм
Luminous flux in emergency mode
140 %
Luminous flux in emergency mode
100 лм
Power supply system
Self-contained (individual battery)
Mounting method
Surface-mounted/portable
IP protection rating
IP65
Operating temperature from
-10...35 град.C

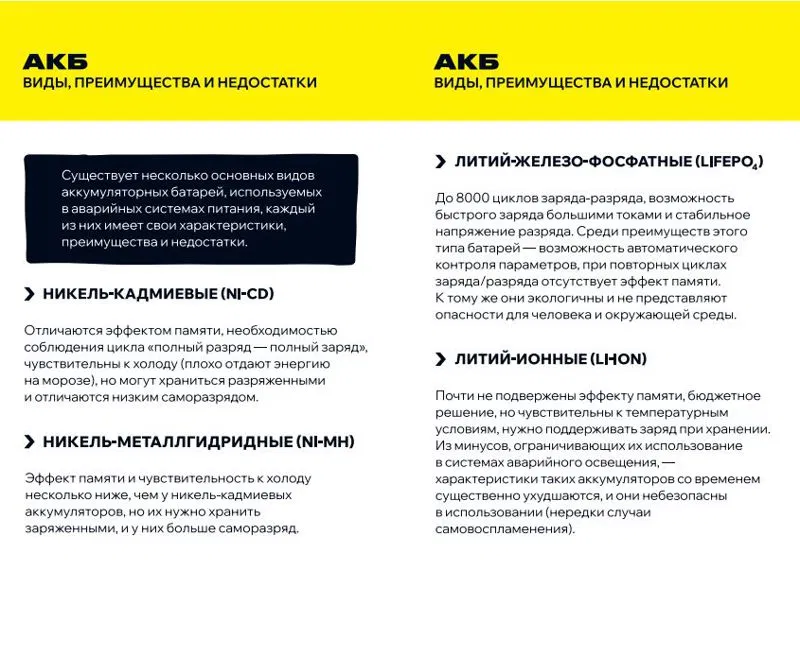

Battery type
NiMH battery (nickel-metal hydride)
Lamp type
LED light source
Lamp type
LED light source
Marking type
Single-sided only
Luminaire type
Single-sided
Connection diagram type
Combined

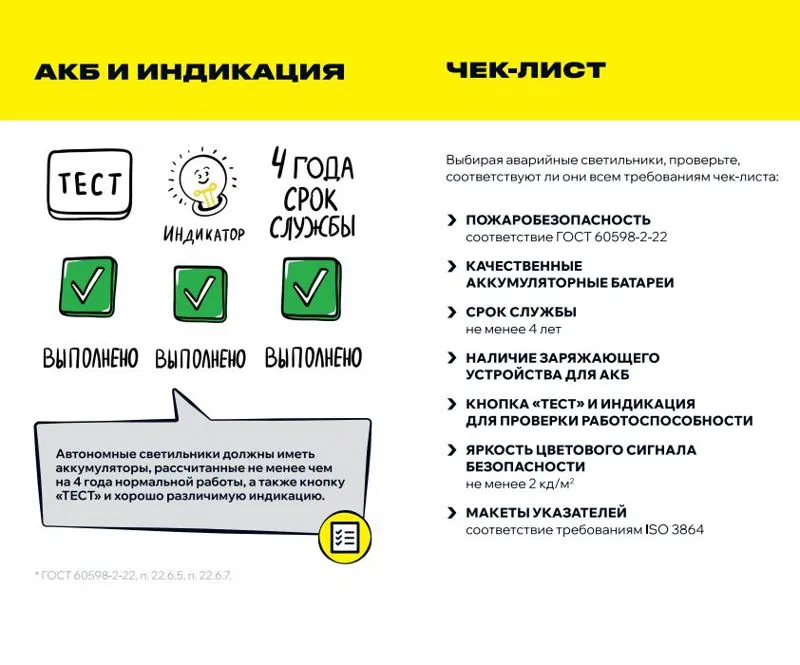

Monitoring device
TEST button and remote testing
Control device
Electronic ballast
Housing color
White
Colour temperature from
6500 К
Lamp base (holder)
No
Frequency (Hz)
50 Hz
Width
136.0 мм
