LEDEL

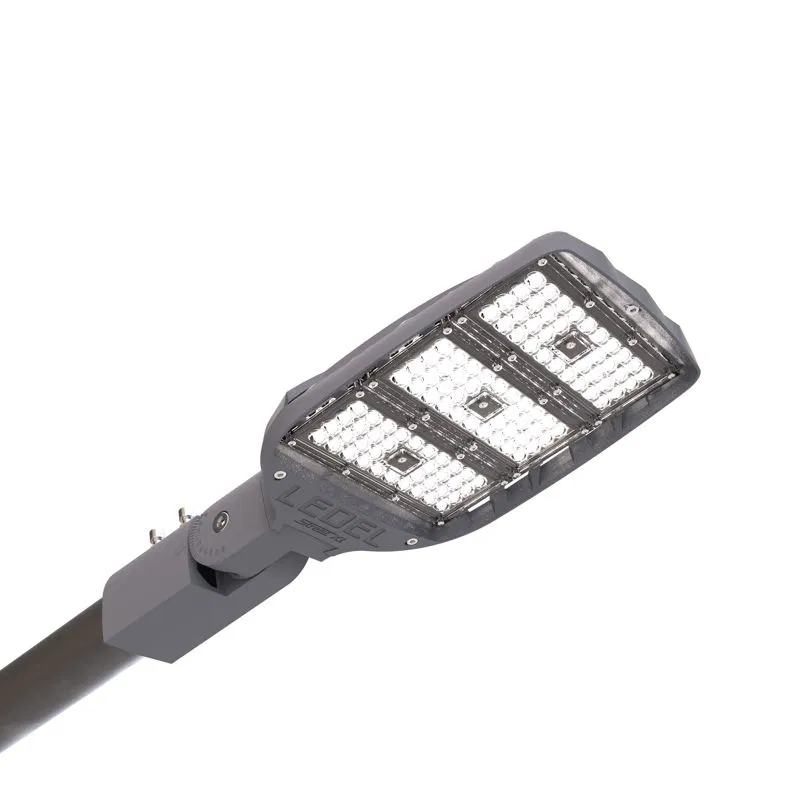

Street luminaire X1/113/Ш8M/740/R6/MT-KM/SKX-02/230AC IP66 LEDEL X113-84115-523-128
SKU: X113-84115-523-128
ETIM: EC000062
37,576 ₽
Get back 375 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Without dimming
Yes
Supplied with lamp
No
Diffuser material type/grade
PMMA (polymethyl methacrylate)
Height
93.0 mm
Height
93.0 mm
Height/depth
93 mm
Diameter
- mm
Operating voltage range
165...430
0-10 V dimming
No
1-10V dimming
No
DALI dimming
No
DMX dimming
No
Voltage modulation dimming
No
Remote control
No (without)
Length
406.0 mm
Length
406.0 mm
Cable length
0.3 m
Ignitor
Not required
Protective surface coating
Powder coating
Colour rendering index
70-79 (class 2A)
Electric shock protection class
I
Power factor
≥ 0.95
Maximum power
113 W
Maximum lamp power
113 W
Housing material
Aluminum
Housing material
Aluminum
Diffuser/lampshade material
Clear glass (light-transmitting)
Rated voltage up to
230 V
Rated voltage from
230 V
Rated luminous flux
18080 lm
Ballast included
No
Suitable for lamp power to
113 W
Suitable for lamp power from
- W
Suitable for upper cut size to
59 mm
Suitable for top-cut size from
48...59 mm
Suitable for number of light sources
3
Power consumption
113 W
Power consumption
113 kW
Programmable dimming
No
Fire protection "d"
No
Radio-controlled
No
Adjustable optics
No
Current type
Alternating current (AC)
With programmable light control
No
With connecting cable
No
Luminous flux
18080 lm
Touch dimming
No
Core cross-section
1 mm²
Mounting method
Bracket type
Connection method
Screw terminal
IP protection rating
IP66
Ambient temperature up to
40 °C
Ambient temperature from
-60 °C
Operating temperature from
-60...40 °C
Lamp type
LED light source
Lamp type
LED light source
Connection type
Terminating
Diffuser type
Multi-lens
Impact resistance
IK08
Control device
LED driver
Housing color
Black
Light color
White
Color temperature at
4000 K
Colour temperature from
4000 K
Lamp base (holder)
Other
Width
210.0 mm
Power supply energy efficiency (ballast, driver, transformer)
A2 BAT
Luminaire efficiency
160 lm/W
