Innolux

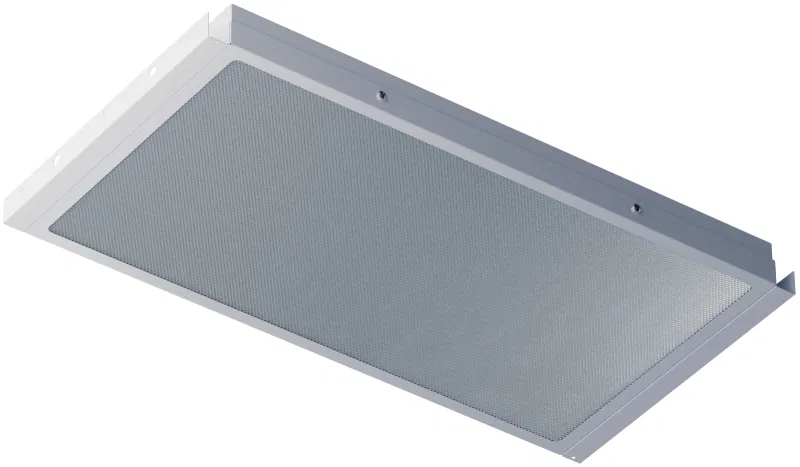

LED luminaire 92 795 DVO-19-P-18-4K-IP54-CLIP-IN-SNR Innolux 92795
SKU: 92795
ETIM: EC002892
9670 ₽
Preorder
Construction.
All-metal welded housing_x000D_
made of sheet steel, coated with_x000D_
white powder paint. A silicone seal is fixed around the perimeter_x000D_
of the diffuser frame, ensuring_x000D_
IP54 protection degree. It has a convenient_x000D_
push-in terminal block for connection.
Optical part.
Prismatic or opal diffusers, made of lighting polymer material, provide uniform soft light.
Installation.
Mounted in suspended ceilings with_x000D_
a concealed CLIP-IN suspension system.
Light source.
HONGLI 2835 high-efficiency LEDs.
Areas of use.
Medical institutions, industrial enterprises, clean rooms.
Additional information.
The luminaire is equipped with an adjustable microwave sensor._x000D_
Illuminance (LUX) is adjustable from 3 to 2000 lux. _x000D_
Operating time after activation (TIME) is adjustable from 10 sec. to 12 min. _x000D_
Detection range (SENS) 0–8 m, adjustable detection range 1–8 m.
| Height/depth | 48 мм |
| Length | 600 мм |
| Colour rendering index | 80-89 (class 1B) |
| Electric shock protection class | It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. |
| Energy efficiency class | A+ |
| Power factor | .95 |
| Maximum power | 18 Вт |
| Housing material | Steel |
| Diffuser/lampshade material | Structured plastic |
| Rated voltage up to | 264 В |
| Rated voltage from | 176 В |
| Rated luminous flux | 2050 лм |
| Suitable for ceiling fastening | No |
| Suitable for wall mounting | No |
| Suitable for suspended mounting | No |
| Suitable for emergency lighting | No |
| Designed for flush mounting | Yes |
| Current type | Alternating current (AC) |
| With motion sensor | Yes |
| IP protection rating | IP54 |
| Ambient temperature up to | 40 град.C |
| Ambient temperature from | -20 град.C |
| Lamp type | Non-replaceable LED |
| Control device | LED driver (LED power supply) |
| Housing color | White |
| Color temperature at | 4000 К |
| Colour temperature from | 4000 К |
| Lamp base (holder) | No (without) |
| Width | 300 мм |
