Innolux

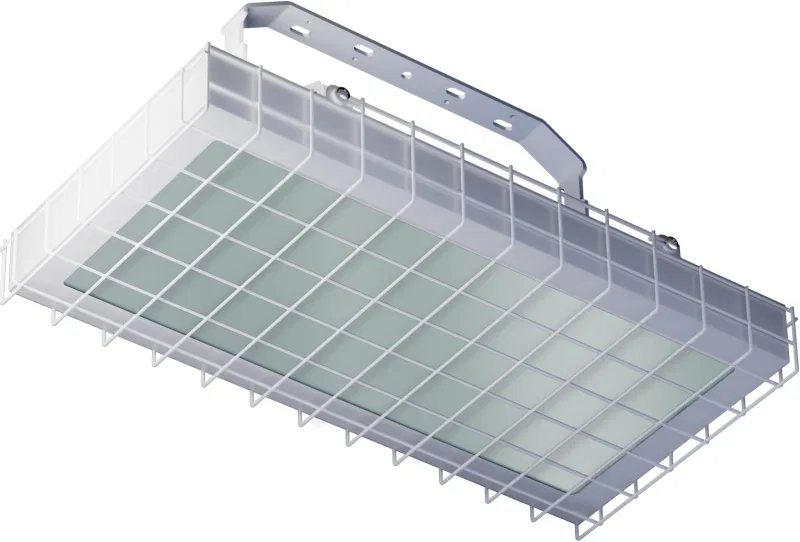

LED luminaire 99 504 DSP-115-10-SR-30-4K-IP65 30W 4000K IP65 CRI90 Innolux 99504
SKU: 99504
ETIM: EC002892
20,012 ₽
Get back 200 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Design.

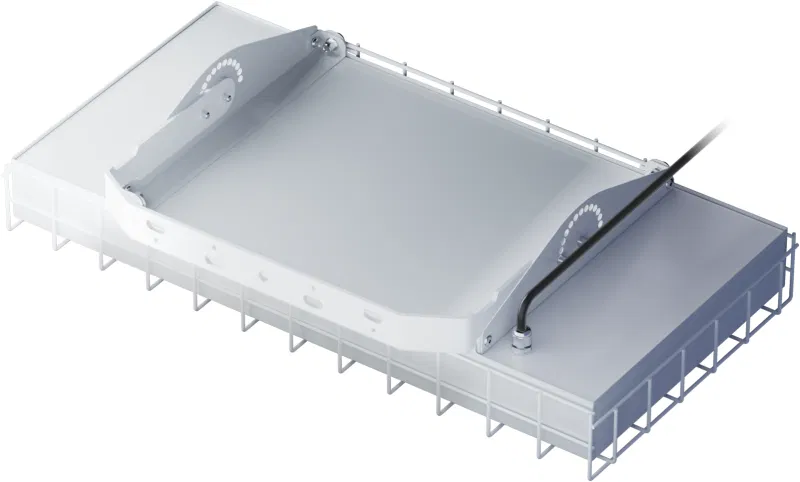

All-metal airtight welded housing made of sheet steel, coated with white powder paint; the mounting of the diffuser on a silicone seal and sealant ensures an IP65 ingress protection level. Convenient connection without disassembly via an external wire. The housing design allows adjusting the tilt angle of the luminaire from 0° to 180° with a 15° step.
Installation.
Mounted on a support surface using a swivel yoke.
Optical part.
Diffusers are made of tempered frosted glass.
Light source.
High-efficiency HONGLI 2835 LEDs with a color rendering index >90 are used.
Areas of use.
Industrial and sports facilities. Suitable for premises with fire hazard category P-IIa.
Additional information.

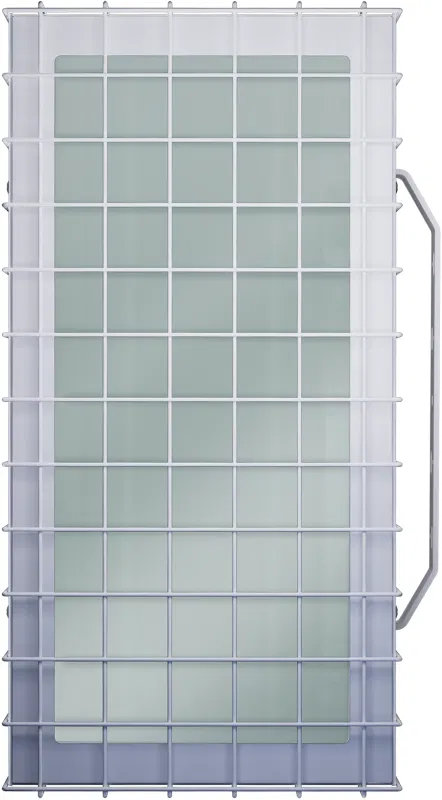

For additional protection, there are modifications with a protective grille._x000D_
Models available: with an emergency power supply unit
Without dimming
Yes
Supplied with lamp
Yes
Height/depth
75 мм
Length
615 мм
Colour rendering index
90-100 (class 1A)
Electric shock protection class
I
Power factor
.97
Maximum power
30 Вт
Housing material
Steel
Diffuser/lampshade material
Matte/satin glass
Highest energy efficiency class of replaceable luminaire
A+
Rated voltage up to
264 В
Rated voltage from
176 В
Rated luminous flux
3700 лм
Rated current from
130 мА
Ballast included
Yes
Suitable for ceiling fastening
Yes
Suitable for wall mounting
Yes
Suitable for surface mounting
Yes
Suitable for suspended mounting
No
Suitable for number of light sources
8
Suitable for emergency lighting
No
Designed for flush mounting
No
Current type
Alternating current (AC)
With motion sensor
No
With protective grille/mesh/screen
Yes
Light output
Straight
Light distribution
Symmetrical
IP protection rating
IP65
Ambient temperature up to
40 град.C
Ambient temperature from
-20 град.C
Lamp type
Non-replaceable LED
Light beam angle
Extra wide beam > 80 deg
Impact resistance
IK08
Control device
LED driver (LED power supply)
Housing color
White
Colour temperature from
4000 К
Lamp base (holder)
No (without)
Width
312 мм
Luminaire efficiency
123 лм/Вт
