Innolux
LED luminaire 99 530 DSP-115-10-SR-75-4K-IP65-A3 75W 4000K IP65 CRI90 Innolux 99530
SKU: 99530
ETIM: EC001957
30675 ₽
Preorder
Construction.

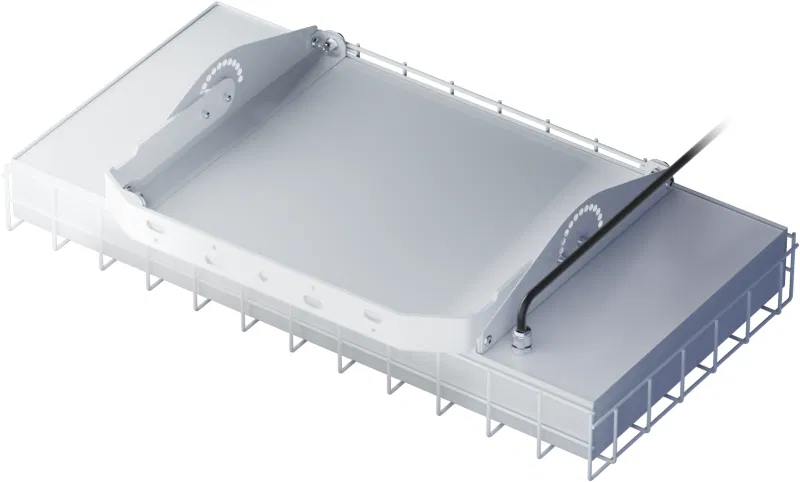

All-metal airtight welded housing made of sheet steel, coated with white powder paint; the attachment of the diffuser on a silicone seal and sealant ensures an IP65 ingress protection level. Convenient connection without disassembly via a lead-out wire. The housing design allows adjusting the tilt angle of the luminaire from 0° to 180° with a 15° step.
Installation.
Mounted on a supporting surface using a swivel yoke.
Optical part.
Diffusers are made of tempered frosted glass.
Light source.
High-efficiency HONGLI 2835 LEDs with a color rendering index >90 are used.
Areas of use.
Industrial and sports facilities. Suitable for premises with fire hazard category P-IIa.
Additional information.

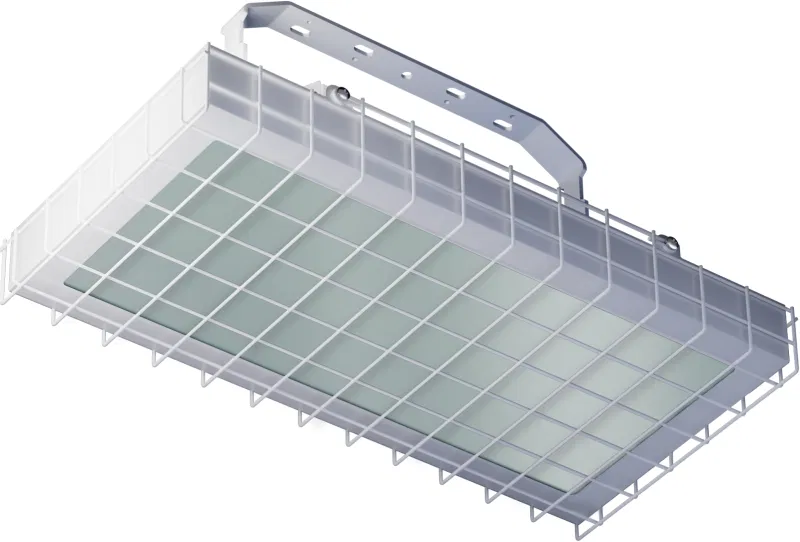

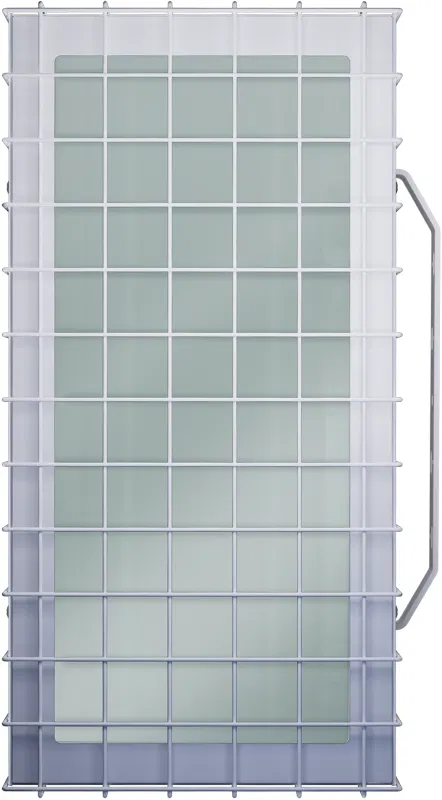

For additional protection, modifications with a protective grid are available._x000D_
The luminaire is equipped with an emergency power supply unit.
| Supplied with lamp | Yes |
| Emergency operating time to | 3 ч |
| Emergency operation time from | 3 ч |
| Height/depth | 75 мм |
| Length | 615 мм |
| Electric shock protection class | It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. |
| Number of LEDs | 144 |
| Power factor | .98 |
| Maximum power | 75 Вт |
| Housing material | Steel |
| Diffuser/lampshade material | Matte/satin glass |
| Rated voltage up to | 264 В |
| Rated voltage from | 176 В |
| Rated luminous flux | 9300 лм |
| Suitable for number of light sources | 8 |
| Current type | Alternating current (AC) |
| Luminous flux in standby mode | 251 лм |
| Power supply system | Decentralized (individual battery) |
| Mounting method | Wall mounting/ceiling mounting |
| IP protection rating | IP65 |
| Ambient temperature up to | 30 град.C |
| Ambient temperature from | 0 град.C |
| Battery type (by chemical composition) | Lithium-ion |
| Lamp type | Non-replaceable LED |
| Connection diagram type | Maintained |
| Impact resistance | IK08 |
| Monitoring device | Test button |
| Control device | Voltage-controlled LED control gear |
| Housing color | White |
| Colour temperature from | 4000 К |
| Lamp base (holder) | No (without) |
| Width | 312 мм |
