JazzWay
LED luminaire PHB 06 PRO-5 150W 5000K IP65 60deg. DSP for high bays Pro+ JazzWay 5064058
SKU: 5064058
ETIM: EC001716
Price on request
Analogues by specifications

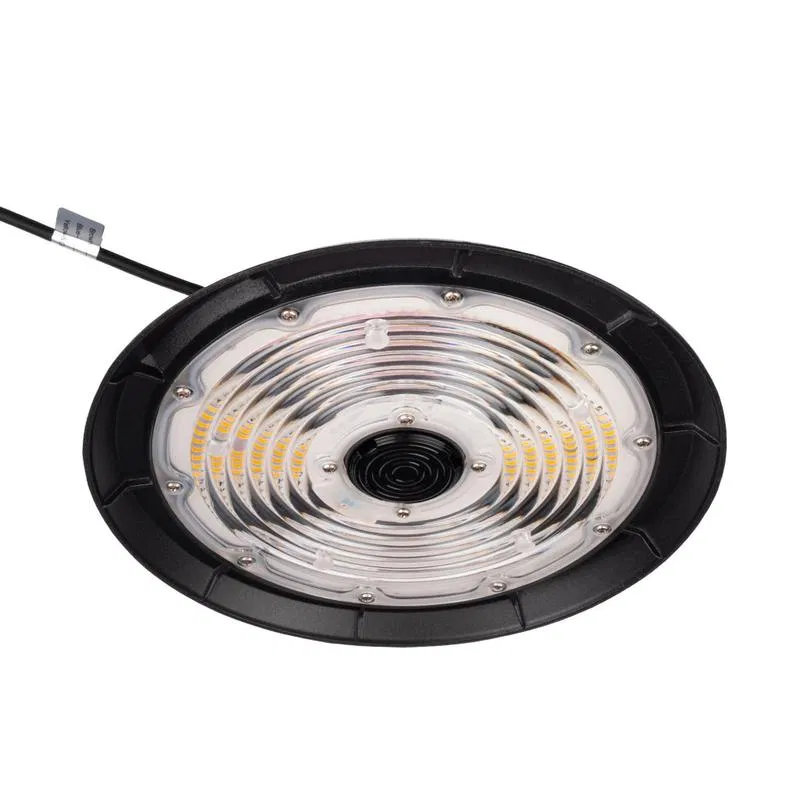

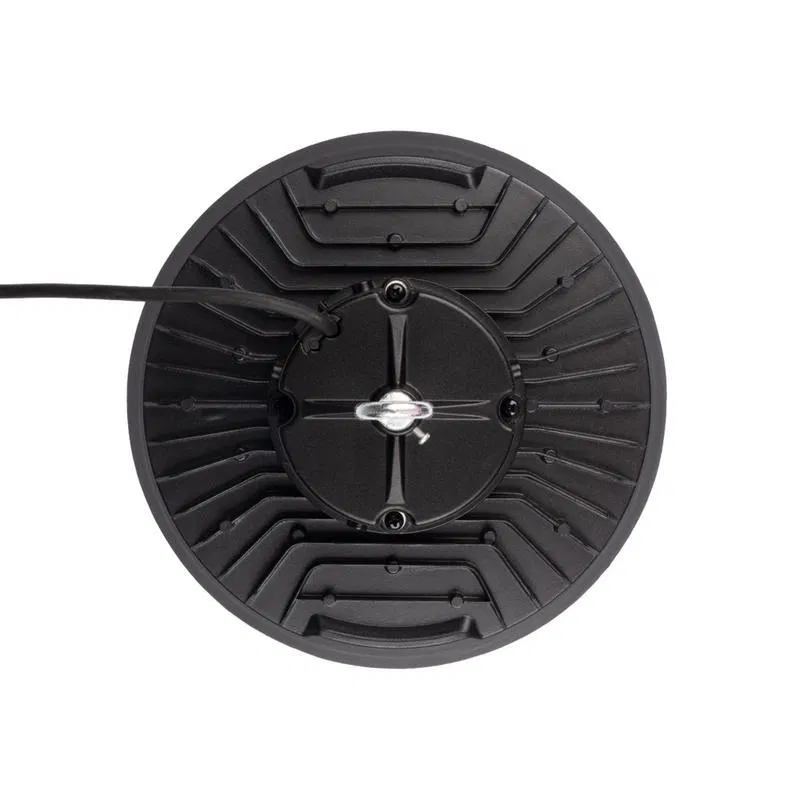

PHB 04 LED luminaire is designed for indoor lighting, specifically for lighting retail, exhibition, industrial and warehouse premises, production and agricultural complexes, and hangars.

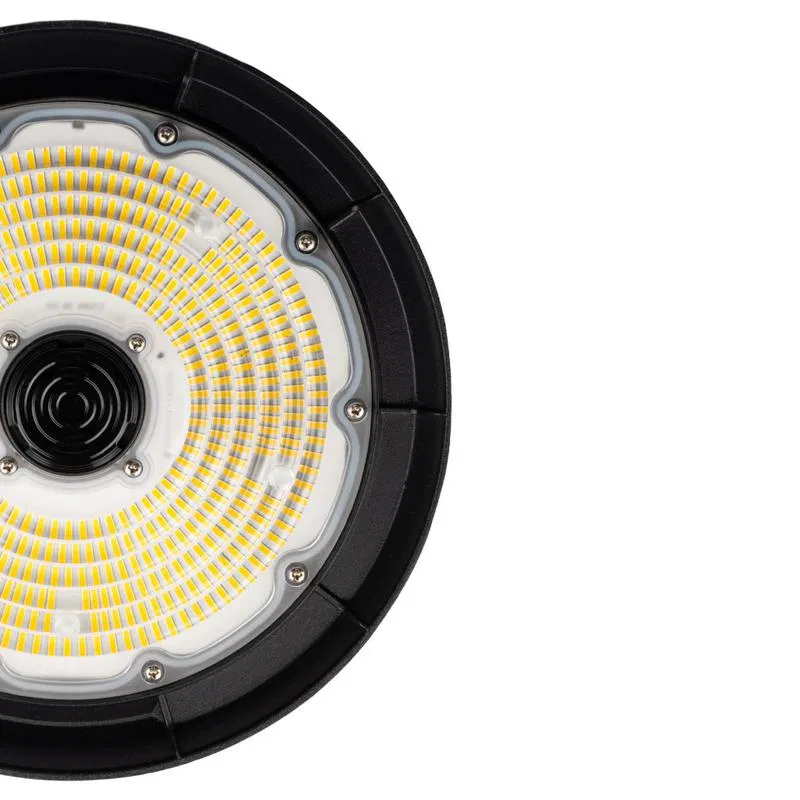

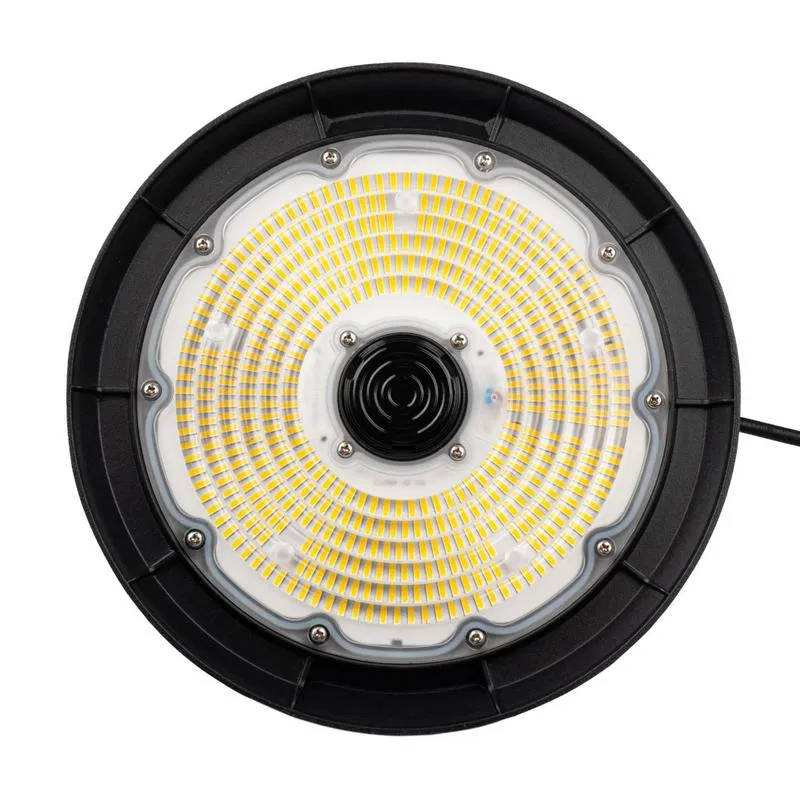

The luminaire is designed to operate from an AC network ~100-253V/50-60Hz. SMD2835 LEDs are used as light sources in the luminaire.
The luminaire complies with protection class I against electric shock, impact resistance IK08, climatic execution U2 according to GOST 15150-69, lower threshold operating temperature -35°C, upper +40°C.

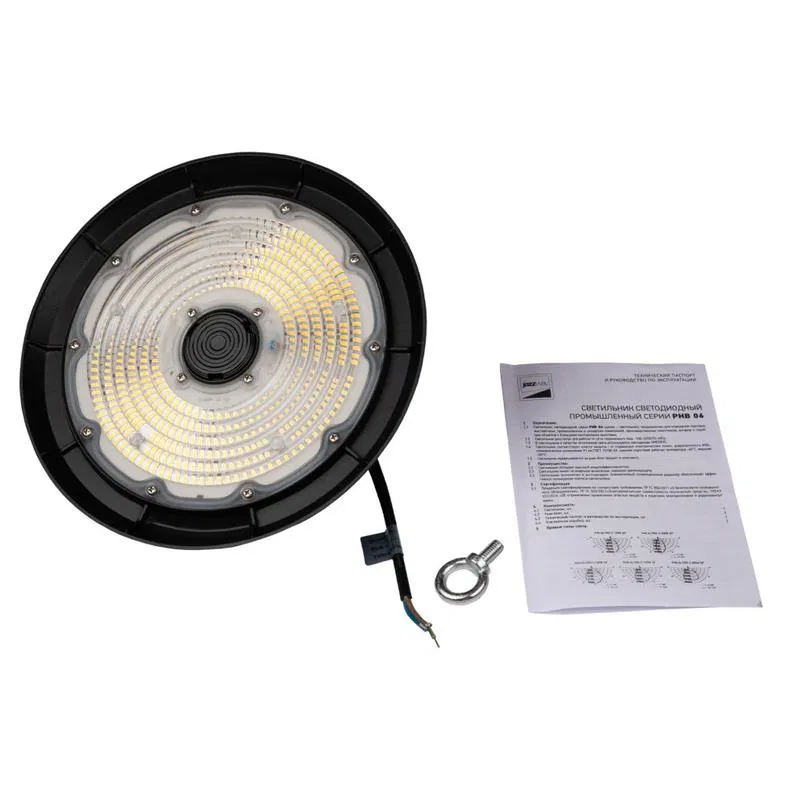

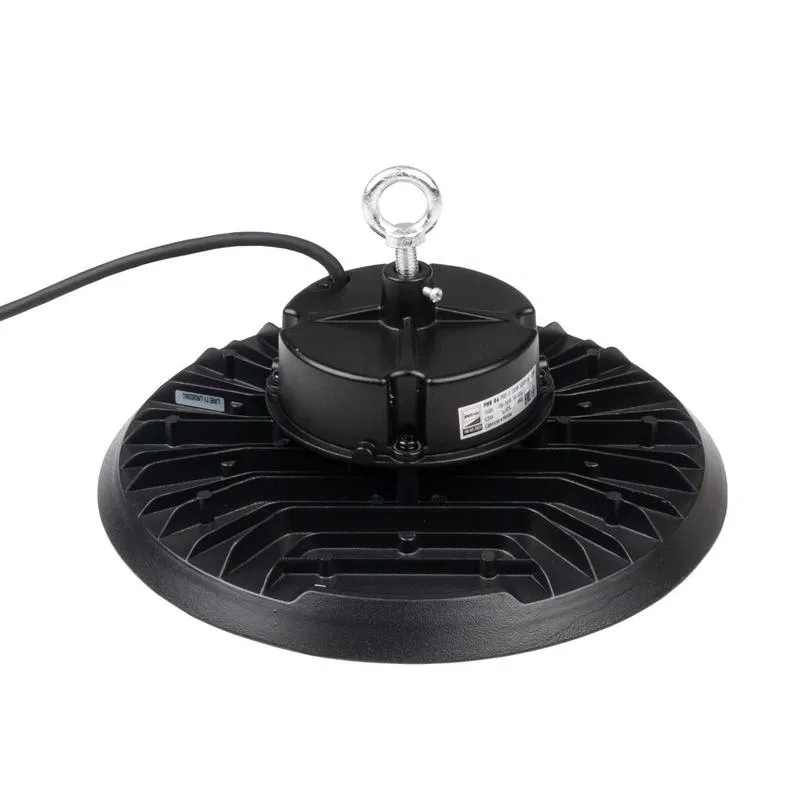

The luminaire is suspended by an eye bolt (included) and a lyre-type mounting (purchased separately, order codes 5042254, 5045675, 5045682.

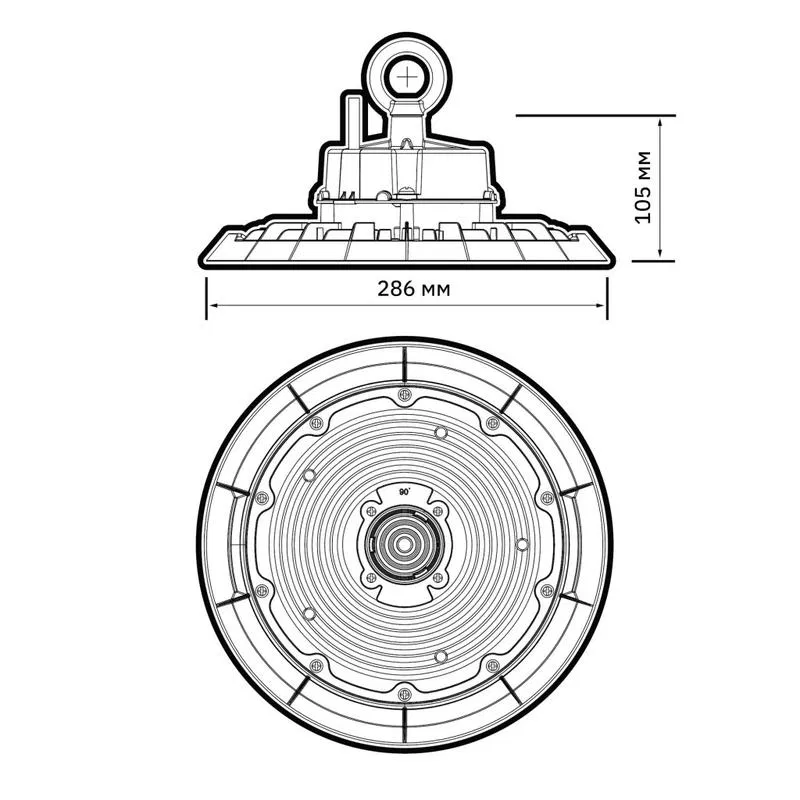

Outer diameter
286 mm
Height/depth
105 mm
Diameter
286 mm
Length
286 mm
Electric shock protection class
I
Maximum power
150 W
Housing material
Aluminum
Reflector material
Polycarbonate
Lamp power
150 W
Rated voltage up to
265 V
Rated voltage from
100 V
Rated luminous flux
27000 lm
Perforated grille
No
Luminous flux
27000 lm
Light distribution
Rotationally symmetric
Mounting method
Suspended
IP protection rating
IP65
Lamp type
LED
Impact resistance
IK06
Housing color
Black
Width
286 mm
