Diora

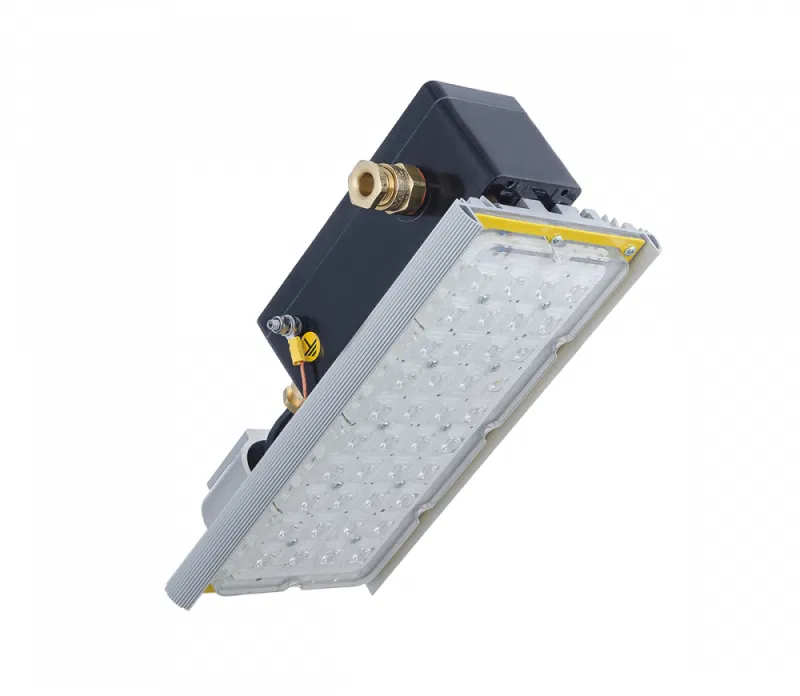

LED luminaire Unit DC Ex 25/3000 D120 3000lm 24W 5000K IP66 70Ra Kr<1 console Diora DUDCEx20D120-5K-C
SKU: DUDCEx20D120-5K-C
ETIM: EC001952
70,733 ₽
Get back 707 ₽ in points
Analogues by specifications
Explosion protection class 1Ex
Explosion protection marking 1Ex mb e IIC T6 Gb X
Junction box in an enclosure
Through-connection capability with power transit
Installation of any cable entries
Operation in a 36V DC network
Optimal choice for lighting any objects except mines
Supplied with lamp
Yes
Height/depth
100 мм
Length
229 мм
For gas explosion hazardous areas
1, 2
For dust explosion protection zone (EU ATEX directives)
21, 22
Electric shock protection class
III
Number of poles
2
Power factor
.98
Housing material
Aluminum
Diffuser/lampshade material
Structured plastic
Rated voltage from
24 В
Rated luminous flux
3000 лм
Rated LED DC current from
700 мА
Ballast included
Yes
Suitable for lamp power from
25 Вт
Suitable for number of light sources
1
Current type
Direct current (DC)
Core cross-section
1 кв.мм
Mounting method
Wall mount
Connection method
Screw terminal
IP protection rating
IP66
Ambient temperature up to
40 град.C
Ambient temperature from
-60 град.C
Lamp type
Non-replaceable LED
Connection type
Suitable for through-wiring
Light beam angle
Extra wide beam > 80 deg
Impact resistance
IK08
Control device
LED current-controlled device
Light color
White
Color temperature at
5000 К
Colour temperature from
5000 К
Lamp base (holder)
No (without)
Width
165 мм
