Diora

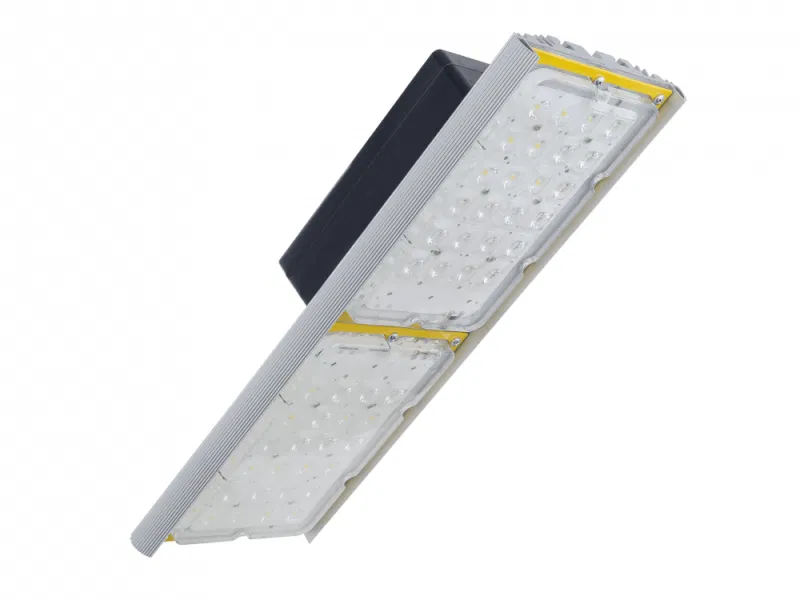

Unit DC Ex 32/3700 K10 3700lm 32W 5000K IP66 70Ra Cp<1 Diora DUDCEx32K10-5K-L
SKU: DUDCEx32K10-5K-L
ETIM: EC001952
71612 ₽
Preorder
Explosion protection class 1Ex
Explosion protection marking 1Ex mb e IIC T6 Gb X
Junction box in an enclosure
Through-connection capability with power transit
Installation of any cable entries
Operation in a 36V DC network
Optimal choice for lighting any objects except mines
| Supplied with lamp | Yes |
| Height/depth | 140 мм |
| Length | 226 мм |
| For gas explosion hazardous areas | 1, 2 |
| For dust explosion protection zone (EU ATEX directives) | 21, 22 |
| Electric shock protection class | III |
| Number of poles | 2 |
| Power factor | .98 |
| Housing material | Aluminum |
| Diffuser/lampshade material | Structured plastic |
| Rated voltage from | 24 В |
| Rated luminous flux | 3700 лм |
| Rated LED DC current from | 700 мА |
| Ballast included | Yes |
| Suitable for lamp power from | 32 Вт |
| Suitable for number of light sources | 1 |
| Current type | Direct current (DC) |
| Core cross-section | 1 кв.мм |
| Mounting method | Wall/Ceiling |
| Connection method | Screw terminal |
| IP protection rating | IP66 |
| Ambient temperature up to | 40 град.C |
| Ambient temperature from | -60 град.C |
| Lamp type | Non-replaceable LED |
| Connection type | Suitable for through-wiring |
| Light beam angle | Narrow beam 10-20 deg. |
| Impact resistance | IK08 |
| Control device | LED current-controlled device |
| Light color | White |
| Color temperature at | 5000 К |
| Colour temperature from | 5000 К |
| Lamp base (holder) | No (without) |
| Width | 165 мм |
