EKF

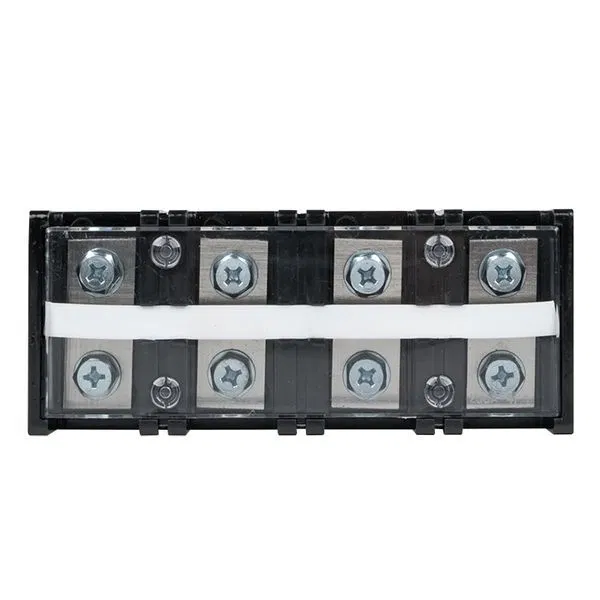

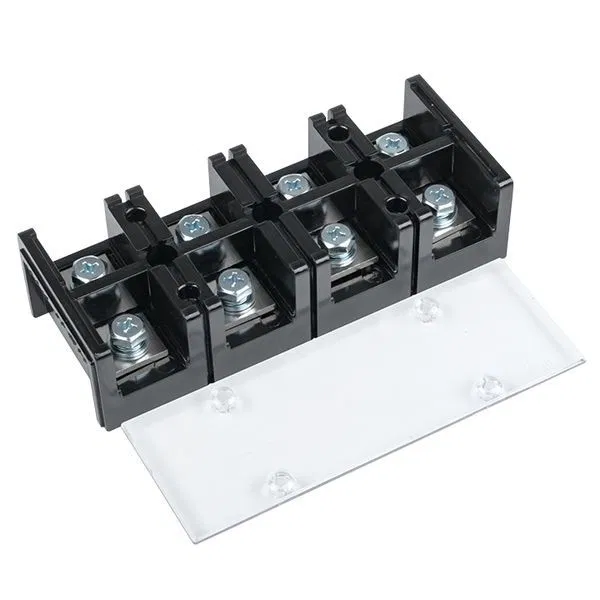

Terminal block TC-2004 up to 95 mm2 200A 4 terminal pairs EKF PROxima tc-2004
SKU: tc-2004
ETIM: EC001284
2,558 ₽
Get back 25 ₽ in points
Analogues by specifications
Stock by warehouse
Terminal blocks of the TV, TC, TK, BZD EKF PROxima series are designed for connecting and branching copper and aluminum conductors in AC electrical circuits with a voltage of up to 660 V and a frequency of 50 Hz, and are used as components in stationary installations.
Version tested for explosion protection "Ex e"
No
Length
177 мм
Length
177 мм
Number of terminals per pole
2
Number of poles
4
Housing insulation material
Thermoplastic
Rated voltage
660 В
Rated current In
200 А
Operating temperature
100 град.C
Operating temperature from
-30 град.C
Connection position
Side
Flexible stranded conductor cross-section up to
95 кв.мм
Stranded flexible conductor cross-section from
95 кв.мм
Solid conductor cross-section to
95 кв.мм
Solid conductor cross-section from
95 кв.мм
Mounting method
Direct mounting
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Colour
Black
Color
Black
Width/connection pitch
23 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
