Signal generator tester MS6813T Mastech 13-1221

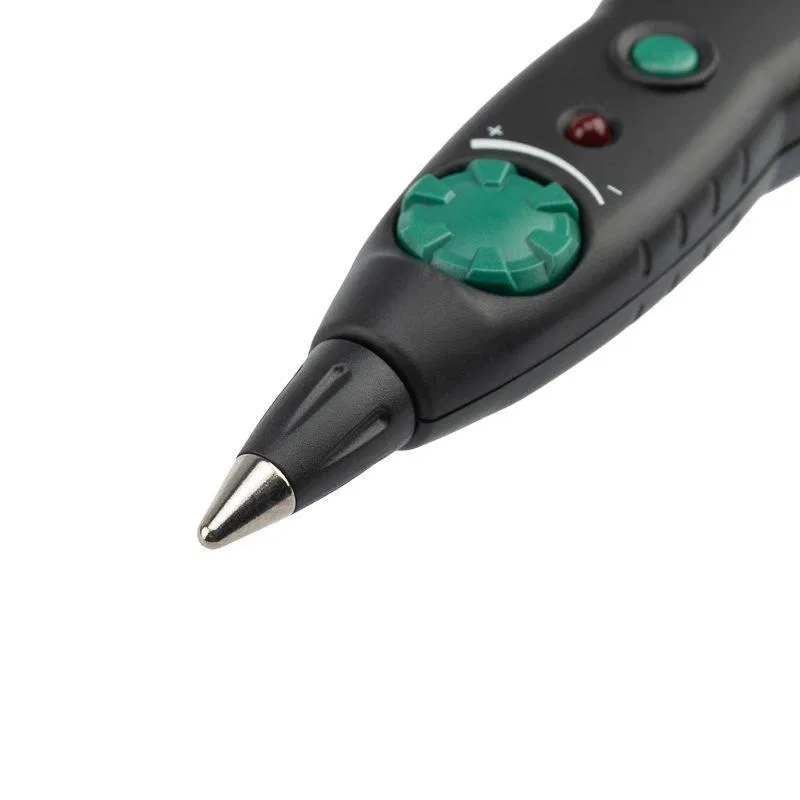

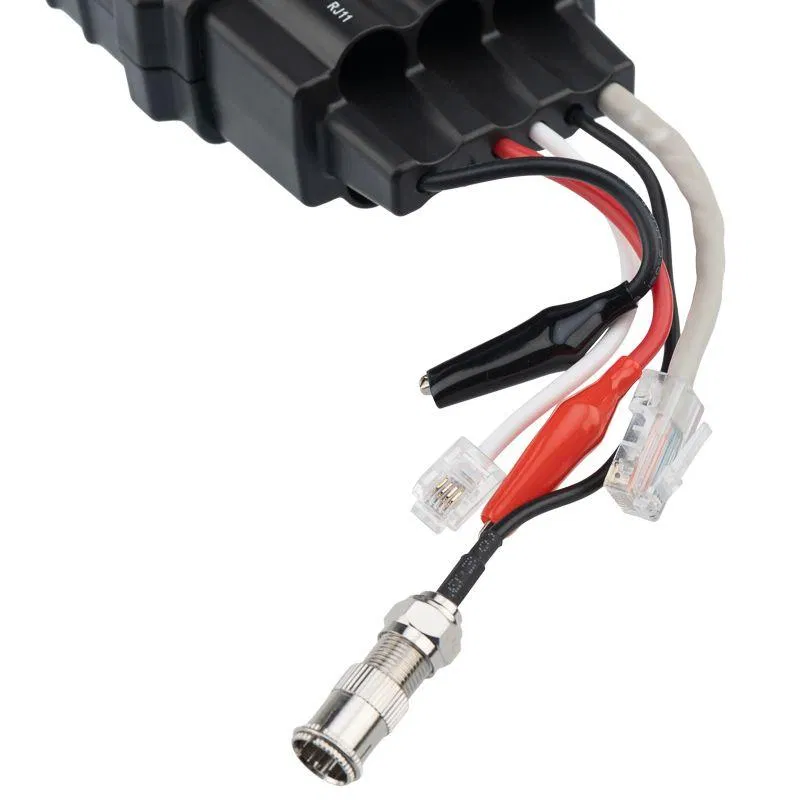

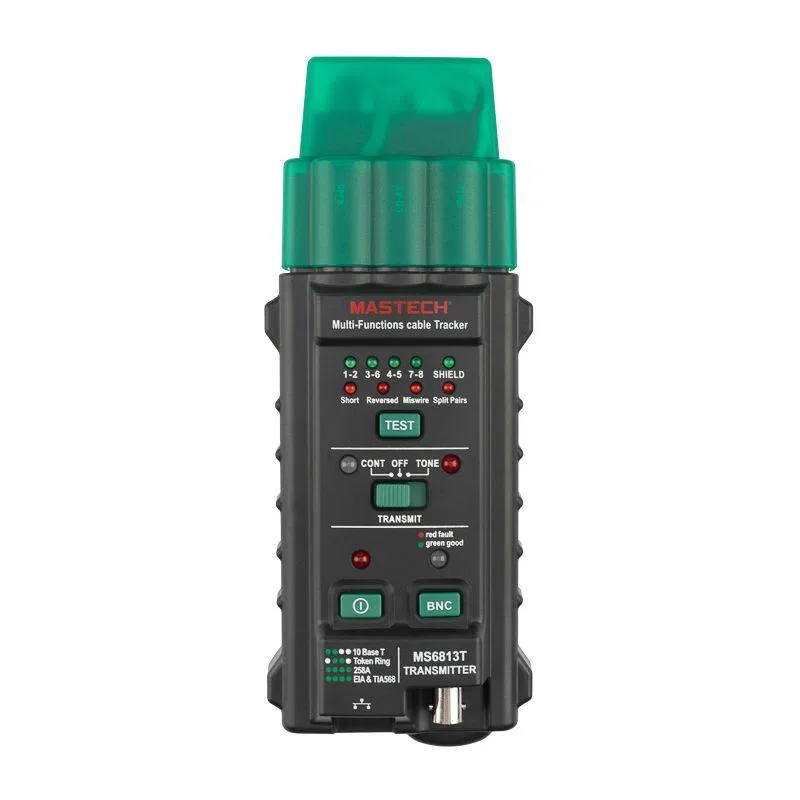

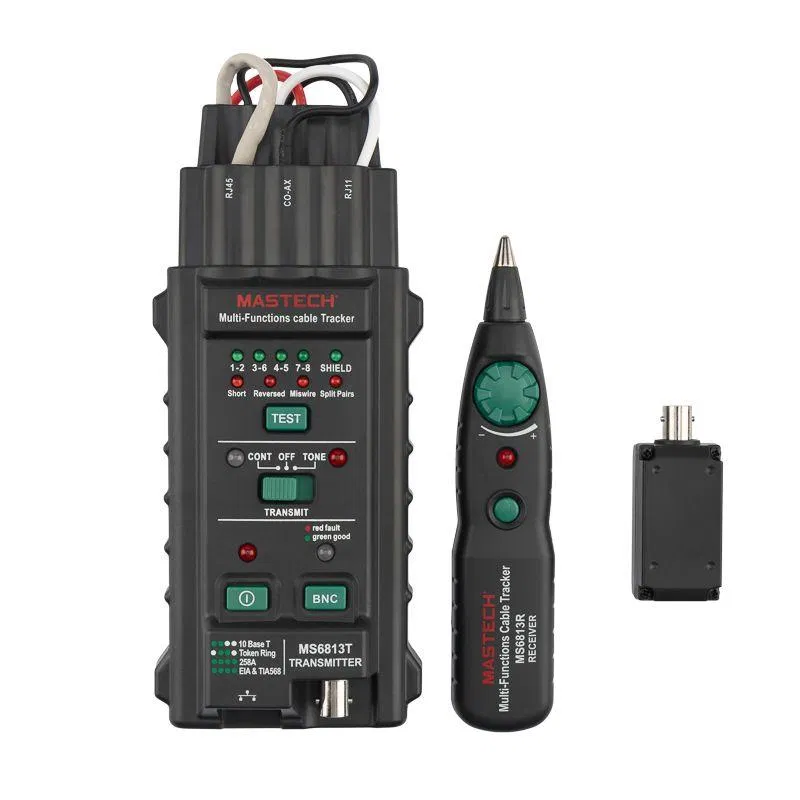

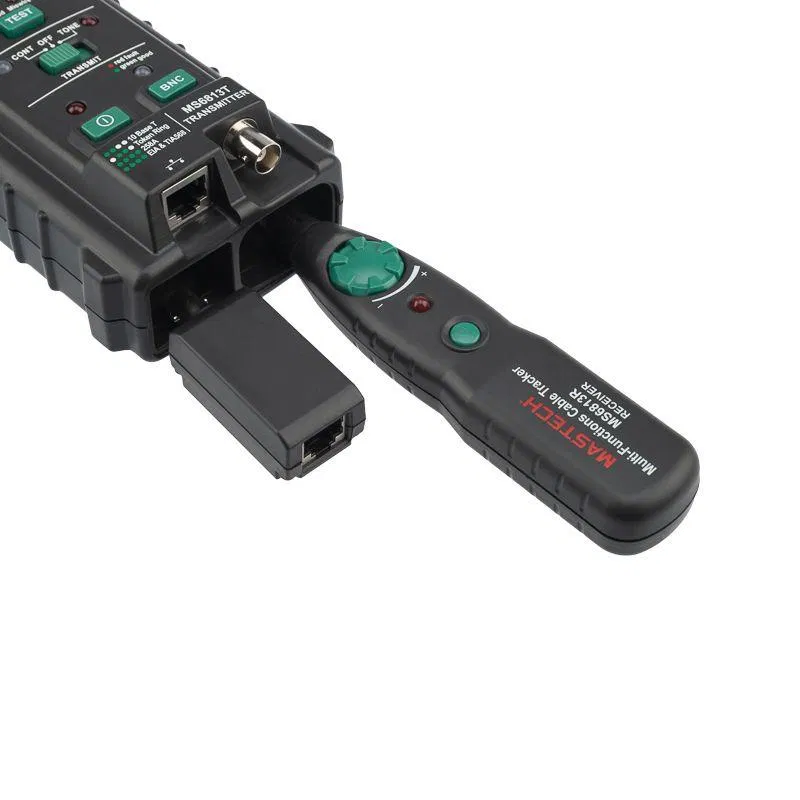

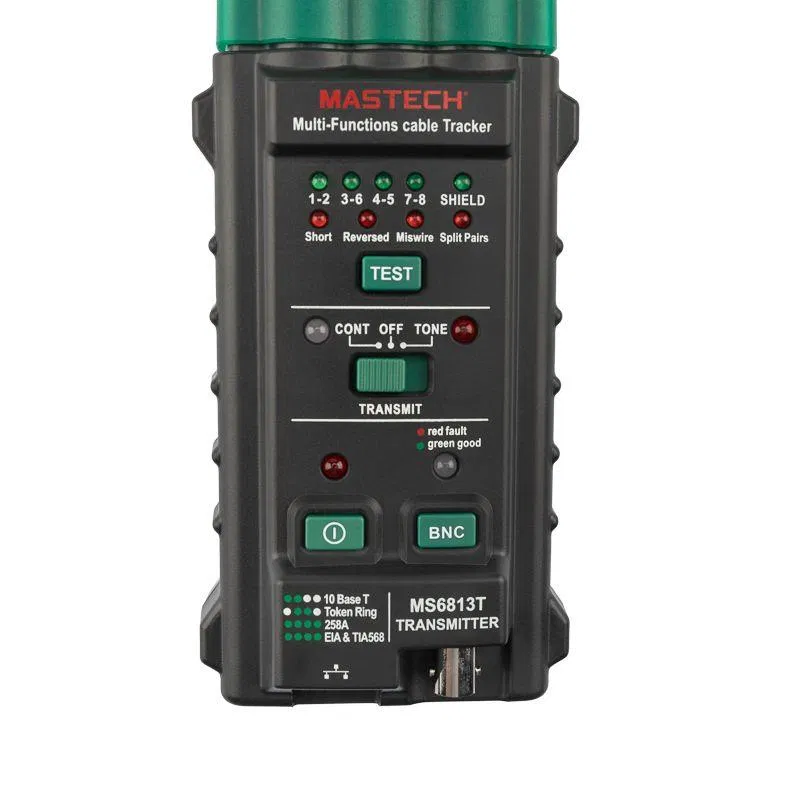

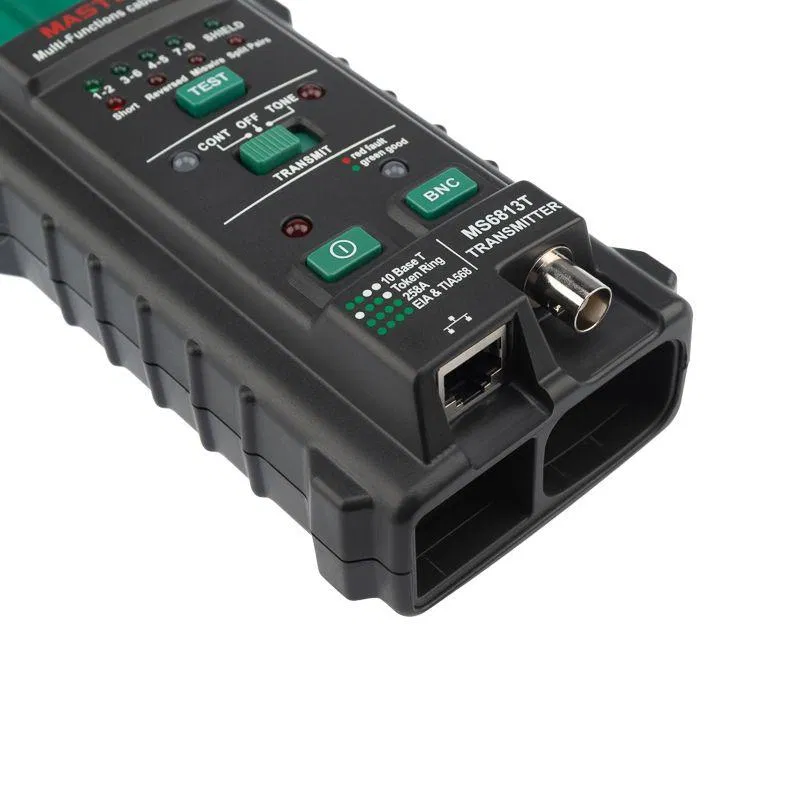

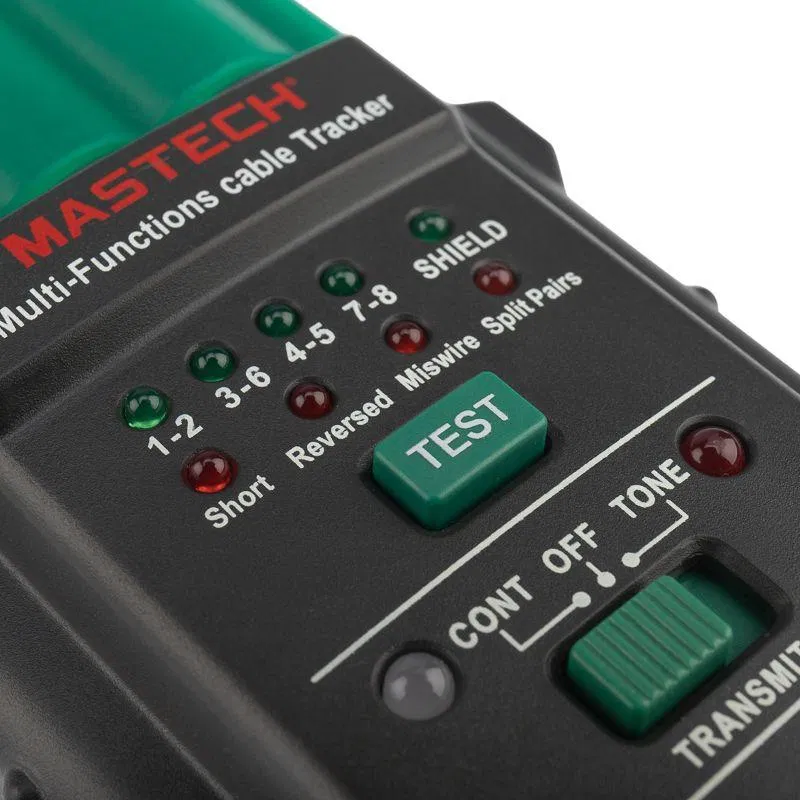

MASTECH MS6813 cable tracer — a versatile device with many functions. It is designed for detecting hidden wiring, both working and damaged, shielded and unshielded twisted pair, checking coaxial cable, testing telephone lines and LAN cables, checking network integrity and configuration, identifying open and short circuits, and detecting breaks and short circuits. The device features outstanding functionality and will be useful to both professional builders and workers and hobbyists due to its simple and intuitive operation and no need for setup. MASTECH tracer consists of several elements: two receivers and a transmitter. The transmitter is designed to send a signal, and the receiver to pick up this signal. This is necessary for searching and checking damaged wires, as the receiver can only recognize a signal in the wiring, and if no current is flowing through the damaged cable, the transmitter will generate it artificially. For greater convenience, the receiver is equipped with a speaker. The transmitter has 2 "alligator" clips for connection to the wire, coaxial cable connectors, LAN cable connectors, as well as a telephone jack for testing telephone lines. If the wire you are about to test is energized, you must not connect the transmitter to it. A bag is included with the device for greater convenience in transportation and carrying. The device is made of high-quality materials and has an ergonomic design. Calibration and testing of the devices are carried out under the supervision of SDS company. Specifications: Cable wiring integrity recognition function Cable routing tracking function Coaxial cable testing function Unshielded and shielded twisted pair testing function LAN cable testing function Cable break location detection function Short and open circuit testing function Telephone line status recognition function Tone signal reception frequency: 100-300 kHz Tone signal transmission frequency: 1.5 kHz Maximum detection distance for the receiver: 300 mm Battery type: 9V "Krona"
