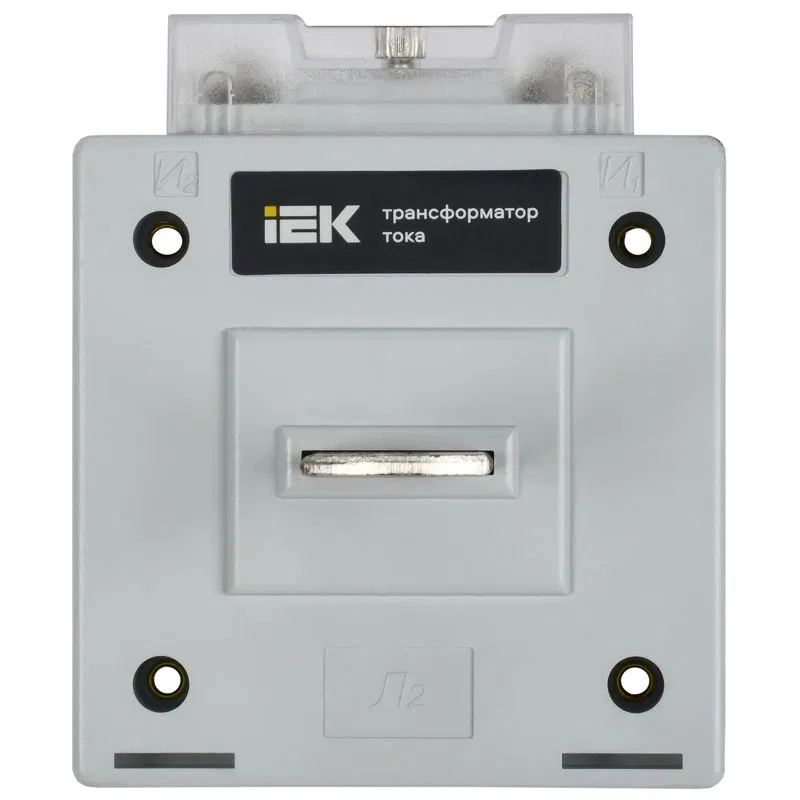

Current transformer TOP-0,66 200/5A 10VA 0.5 IEK ITP10-2-10-0200
SKU: ITP10-2-10-0200
ETIM: EC002048
1,705 ₽
Get back 17 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
TOP-0.66 reference current transformers in plastic housing are designed for:
- use in electricity metering circuits for settlements with consumers;
- use in commercial electricity metering circuits;
- transmission of measurement information signals to measuring instruments or protection and control devices.
Comply with GOST 7746 requirements.
Based on positive test results, TOP-0.66 current transformers have been issued a type approval certificate for measuring instruments.
TOP-0.66 current transformers are entered in the state register of measuring instruments under number 58386-20.
Quick fastening
No
Design
Current transformer with primary winding
Accuracy class
.5 %
Measurement accuracy class
0.5
Climatic version
UKhL3
Number of secondary windings
1
Maximum operating voltage
0.72
Rated secondary winding safety factor
5
Rated frequency
50
Rated secondary apparent power
10 В.А
Rated voltage
660 В
Rated secondary current
5 А
Rated instrument security factor
FS 5
Rated primary current
200 А
Secondary winding connection
Screw connection
Operating position
Any
With protection against contact with live parts
Yes

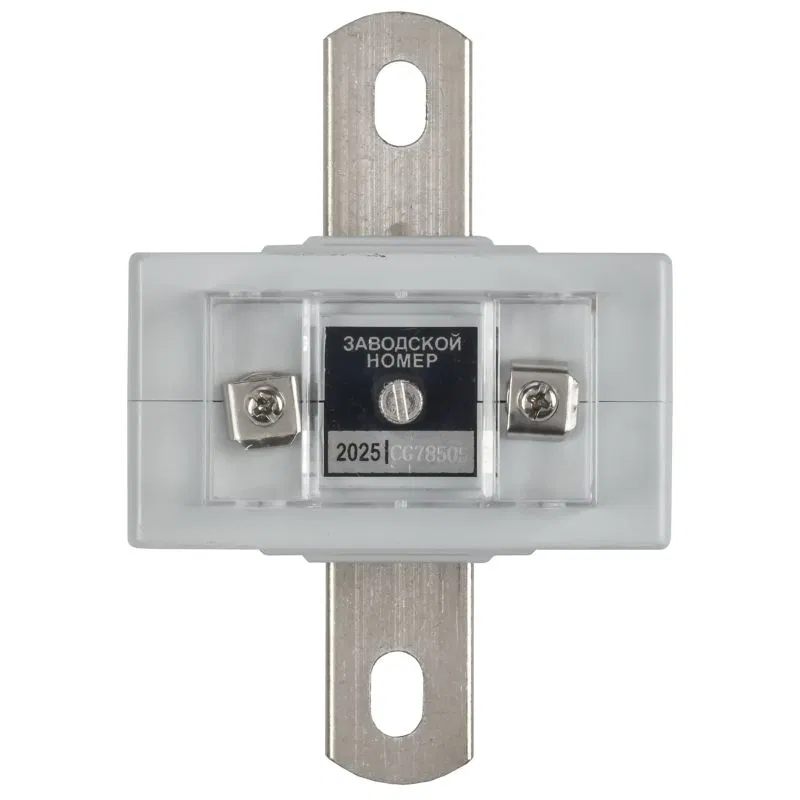

With copper busbar
Yes
Certified
Yes
IP protection rating
IP20
Operating temperature from
-45...50 град.C
