IEK

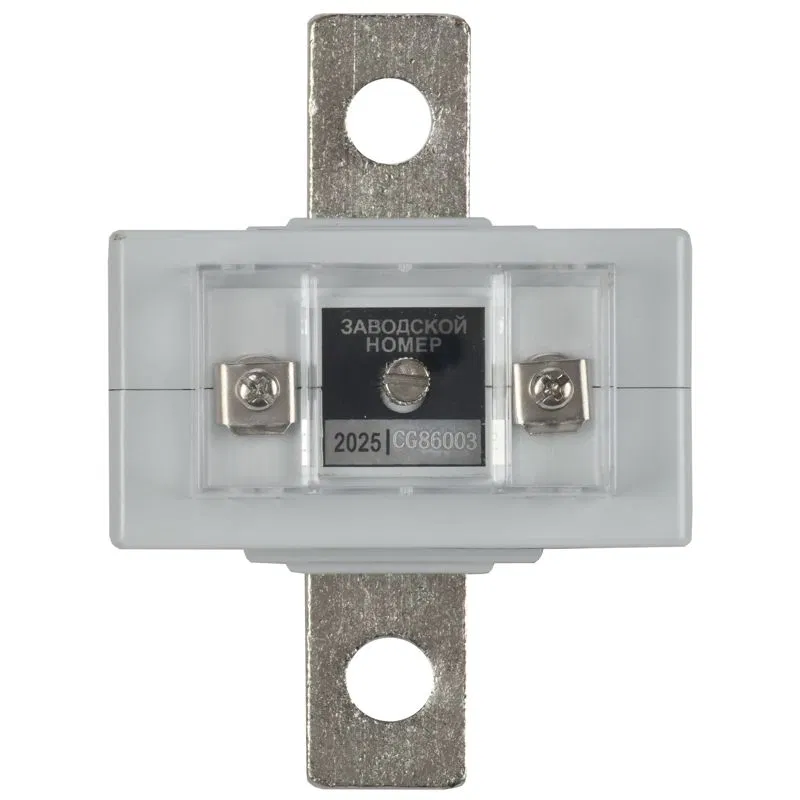

Current transformer TOP-0.66 600/5A 10VA 0.5 IEK ITP10-2-10-0600
SKU: ITP10-2-10-0600
ETIM: EC002048
1,239 ₽
Get back 12 ₽ in points
Analogues by specifications
TOP-0.66 reference current transformers in plastic housing are designed for:
- use in electricity metering circuits for settlements with consumers;
- use in commercial electricity metering circuits;
- transmission of measurement information signals to measuring instruments or protection and control devices.

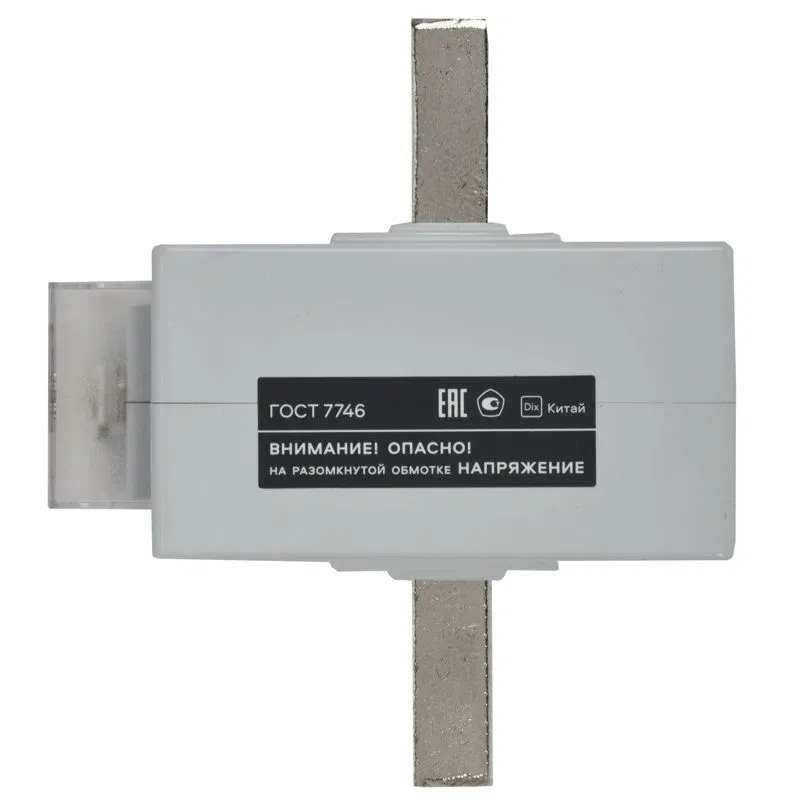

Comply with GOST 7746 requirements.
Based on positive test results, TOP-0.66 current transformers have been issued a type approval certificate for measuring instruments.
TOP-0.66 current transformers are entered in the state register of measuring instruments under number 58386-20.
Quick fastening
No
Design
Current transformer with primary winding
Accuracy class
It appears your message contains only ".5". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. %
Measurement accuracy class
0.5
Climatic version
UKhL3
Number of secondary windings
1
Maximum operating voltage
0.72
Rated secondary winding safety factor
5
Rated frequency
50
Rated secondary apparent power
10 В.А
Rated voltage
660 В
Rated secondary current
5 А
Rated instrument security factor
FS 5
Rated primary current
600 А
Secondary winding connection
Screw connection
Operating position
Any
With protection against contact with live parts
Yes
With copper busbar
Yes
Certified
Yes
IP protection rating
IP20
Operating temperature from
-45...50 град.C
