IEK

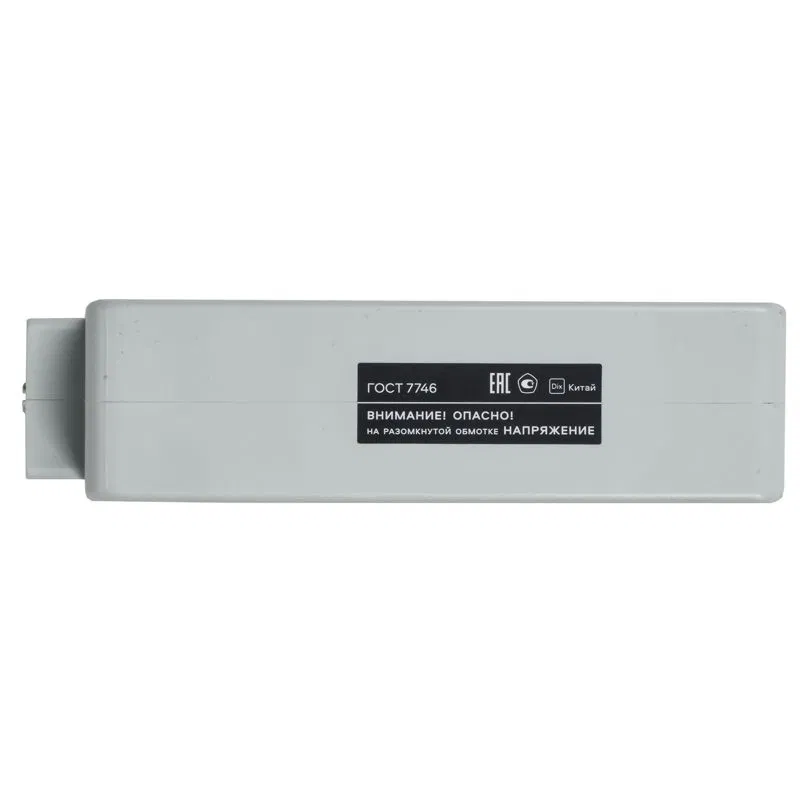

Current transformer TSHP-0,66 1500/5A 15VA 0.5S 85 IEK ITB50-3-15-1500
SKU: ITB50-3-15-1500
ETIM: EC002048
2,128 ₽
Get back 21 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Quick fastening
No
Hole diameter
82 мм
Design
Current transformer with primary winding
Measurement accuracy class
0.5S
Climatic version
UKhL3
Number of secondary windings
1
Maximum operating voltage
0.72
Rated secondary winding safety factor
5
Rated frequency
50
Rated secondary apparent power
15 В.А
Rated voltage
660 В
Rated secondary current
5 А
Rated instrument security factor
FS 5
Rated primary current
1500 А
Suitable for max. cable diameter
82 мм

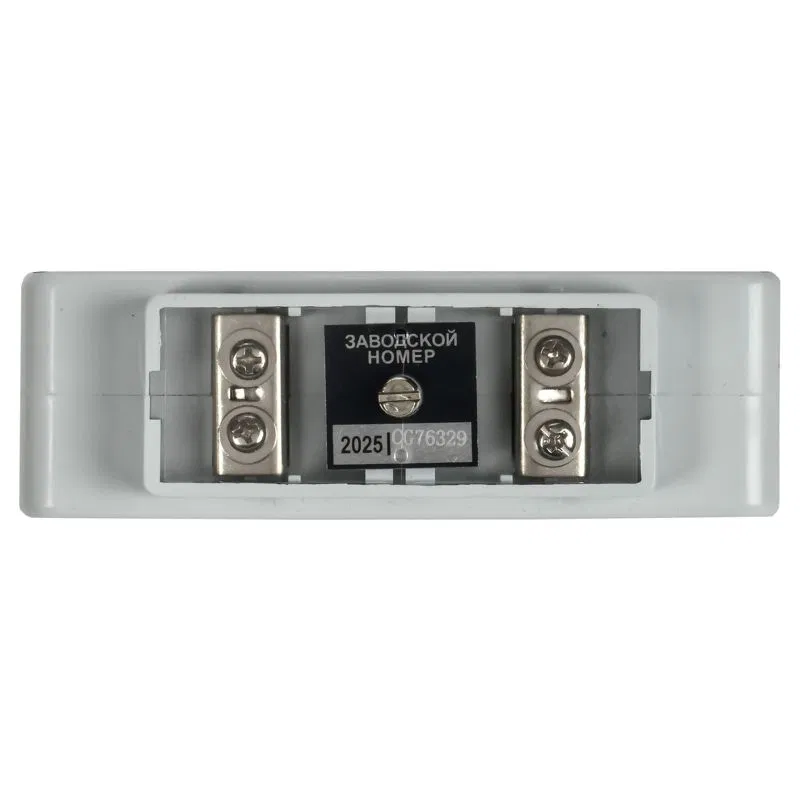

Secondary winding connection
Screw connection
Operating position
Any
With protection against contact with live parts
Yes
With copper busbar
No
Certified
Yes
IP protection rating
IP20
Operating temperature from
-45...50 град.C
