Current transformer TTE-A-125/5A accuracy class 0.5 EKF PROxima tte-a-125
SKU: tte-a-125
ETIM: EC002048
800 ₽
Get back 8 ₽ in points
Analogues by specifications
Stock by warehouse
Current transformer TTE-A-120/5A accuracy class 0.5 EKF is a measuring current transformer with primary current 120A and secondary current 5A, rated secondary power 5VA.

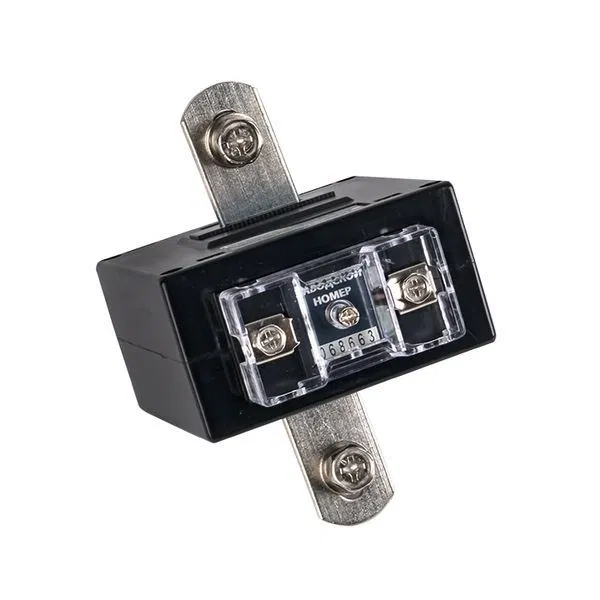

This modification has a built-in primary winding in the form of a copper busbar.
Mounting: on the current-carrying busbar or on a mounting panel (appropriate fasteners are provided).
Busbar size - 25x3x120 mm
Screw size for fastening to current-carrying parts M8x16 (included).
Secondary winding terminals are equipped with screw terminals with protection against unauthorized access (sealable).
Measuring instruments certificate - No. 73808-19.
Quick fastening
No
Design
Feed-through current transformer
Measurement accuracy class
0.5
Number of secondary windings
1
Rated secondary apparent power
5 В.А
Rated secondary current
5 А
Rated instrument security factor
FS 10
Rated primary current
125 А
Secondary winding connection
Screw connection
With protection against contact with live parts
No
With copper busbar
Yes
Certified
Yes
