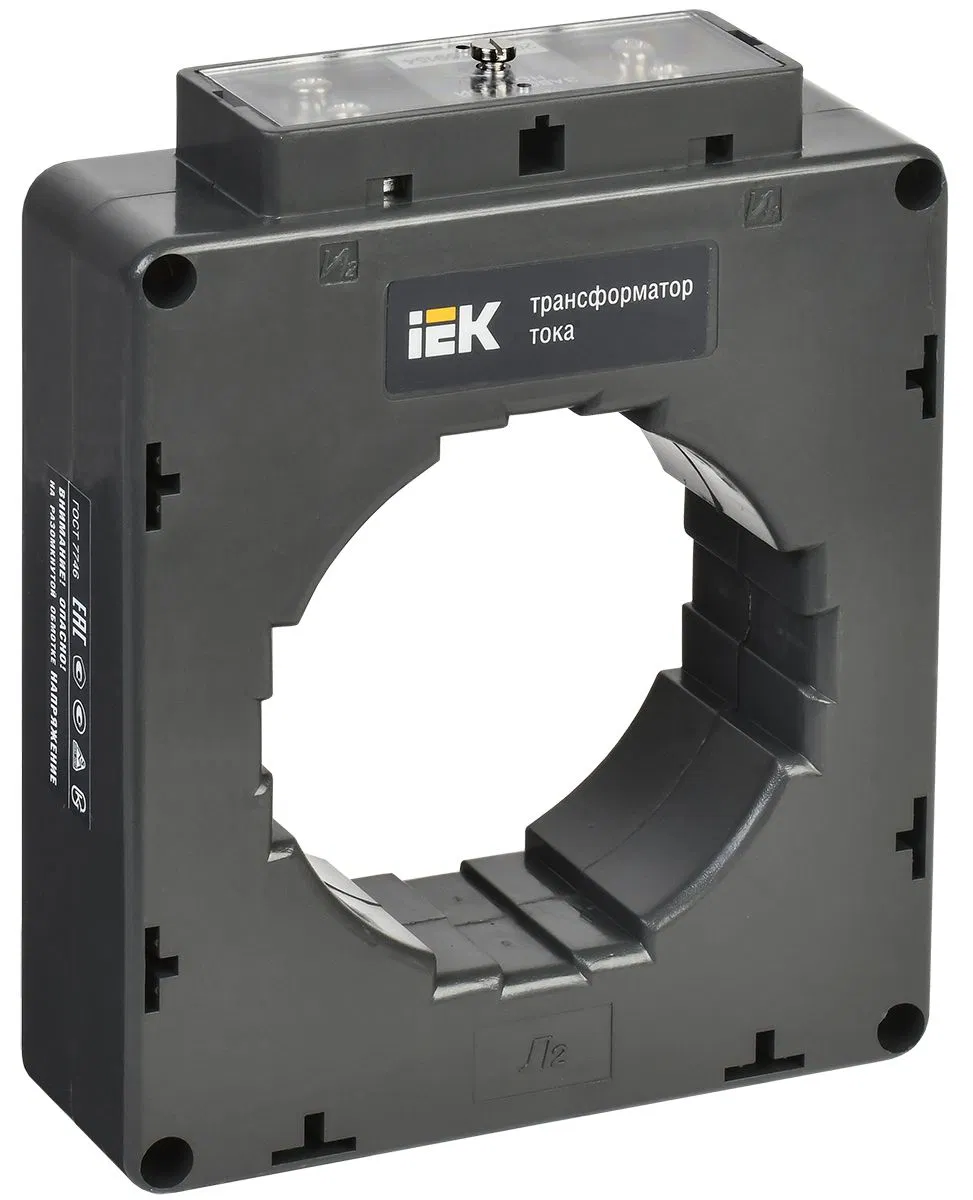

Current transformer TTI-85 800/5A 15VA 0.5 IEK ITT50-2-15-0800

IEK

Current transformer TTI-85 800/5A 15VA 0.5 IEK ITT50-2-15-0800

SKU: ITT50-2-15-0800 ETIM: EC002048

16,476 ₽

Get back 164 ₽ in points

Order multiple: 12 шт

Description Specifications Reviews

Quick fastening No

Hole diameter 82 мм

Design Current transformer with primary winding

Measurement accuracy class 0.5

Climatic version UKhL3

Number of secondary windings 1

Maximum operating voltage 0.72

Rated frequency 50

Rated secondary apparent power 15 В.А

Rated voltage 660 В

Rated secondary current 5 А

Rated instrument security factor FS 5

Rated primary current 800 А

Suitable for max. cable diameter 82 мм

Secondary winding connection Screw connection

Operating position Any

With protection against contact with live parts Yes

With copper busbar No

Certified Yes

IP protection rating IP20

Operating temperature from -45...50 град.C
