18,269 ₽
Get back 182 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications

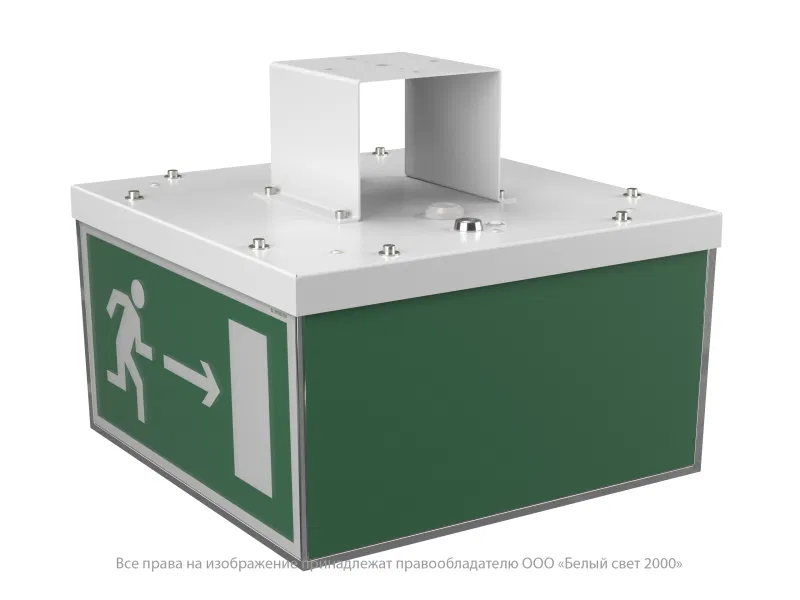

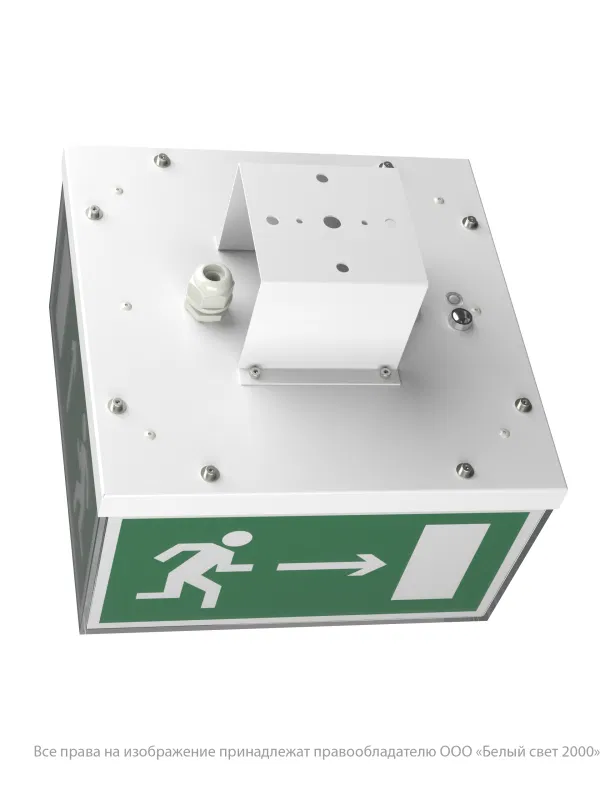

BS-CUBE-10-S1-BZ light indicator has a recognition distance of 29 m.
The light indicator is designed to indicate the direction of movement along evacuation routes in large premises with high ceilings: stations, airports, hypermarkets, exhibition halls, workshops, etc. The design of the light device allows for reducing the number of light devices used, as the four-sided light indicator is recognized from any direction and has no "blind spots".
Compatible safety sign series BL-2915B.
The model has a centralized operating mode, rated emergency operation duration 0 h.
Nominal power consumption 9.30 W.
Electrical shock protection class: I
Testing and control supported: No
Housing material steel, powder enamel
Diffuser material light-stabilized polycarbonate
IP rating IP44

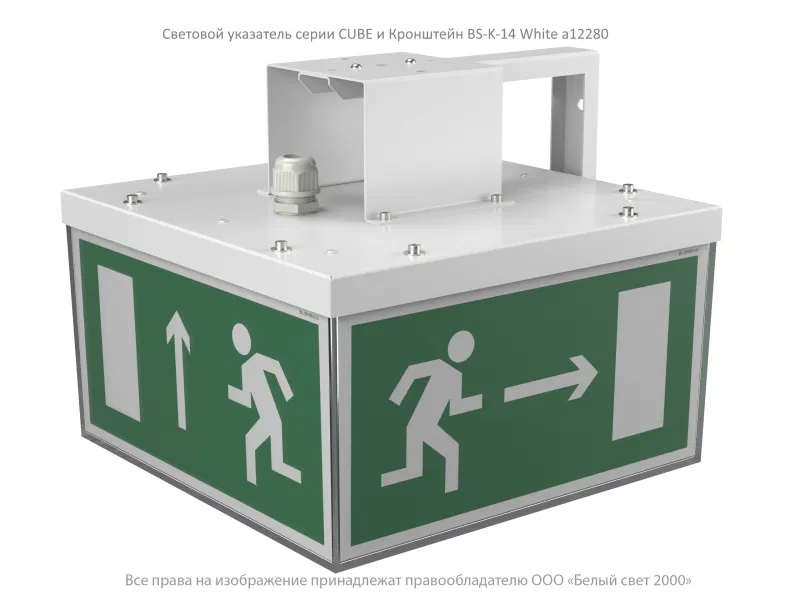

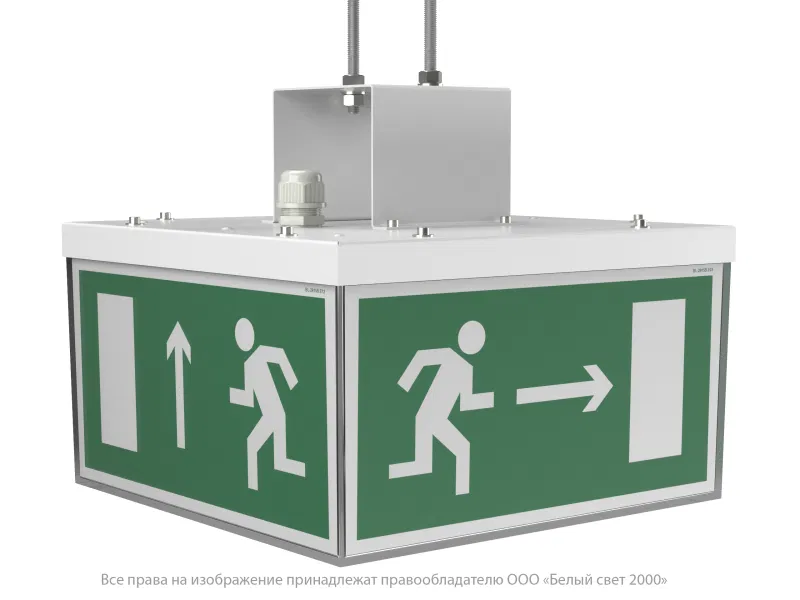

The light indicator is designed for installation on the ceiling surface using M8 bolts or studs, as well as on a wall using bracket BS-K-14.
Supplied with lamp
Yes
Supplied with pictogram
No
Emergency operating time to
0 ч
Emergency operation time from
0 ч
Height/depth
265 мм
Length
309 мм
Electric shock protection class
I
Power factor
.98
Maximum power
9.3 Вт
Housing material
Steel
Diffuser/lampshade material
Light-stabilized polycarbonate
Lamp power
4 Вт
Purpose
Escape route sign
Rated voltage up to
253 В
Rated voltage from
170 В
Suitable for number of light sources
5
Recognition distance
29 м
Current type
AC/DC
With connection to remote switch panel
No
Power supply system
Centralized (central battery)
Mounting method
Surface/Recessed
Connection method
Screw connection
IP protection rating
IP44
Ambient temperature up to
40 град.C
Ambient temperature from
-40 град.C
Lamp type
Non-replaceable LED
Connection type
Terminating
Connection diagram type
Maintained
Monitoring device
No (without)
Control device
LED current-controlled device
Housing color
White
Color temperature at
5000 К
Colour temperature from
5000 К
Lamp base (holder)
No (without)
Width
309 мм
