IEK

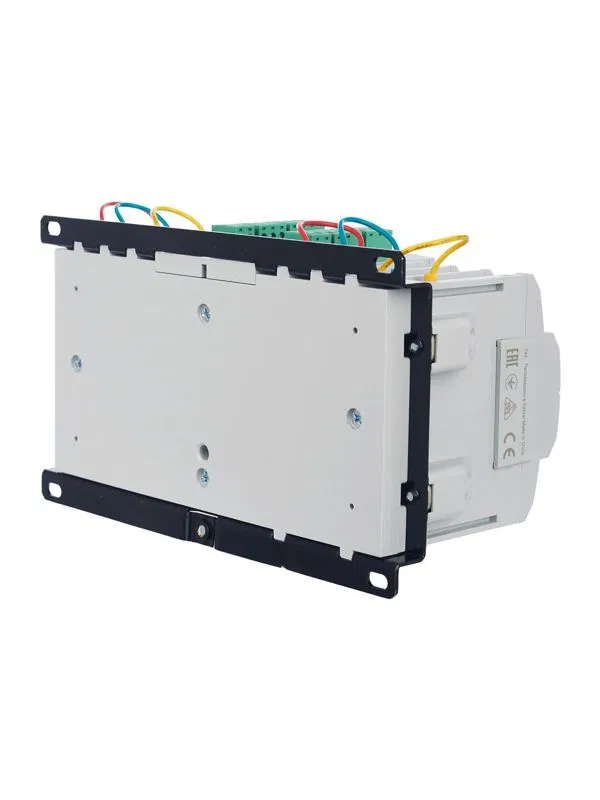

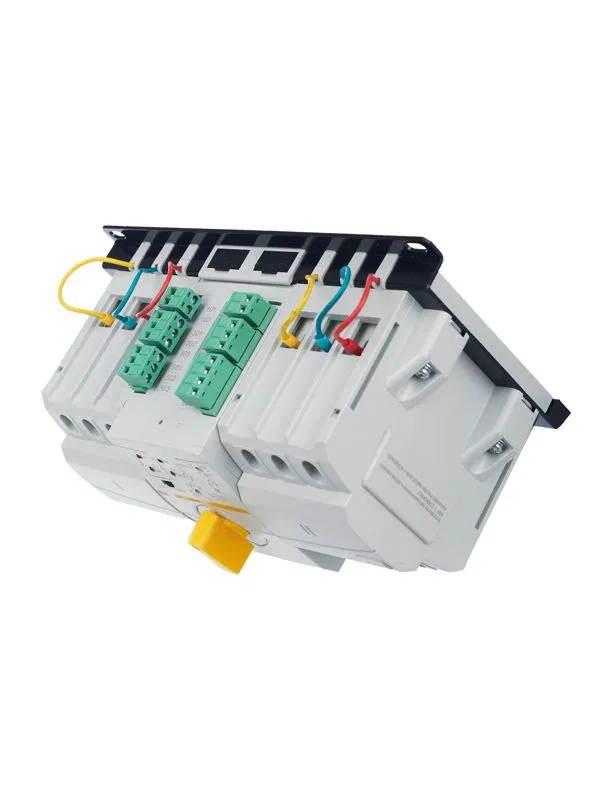

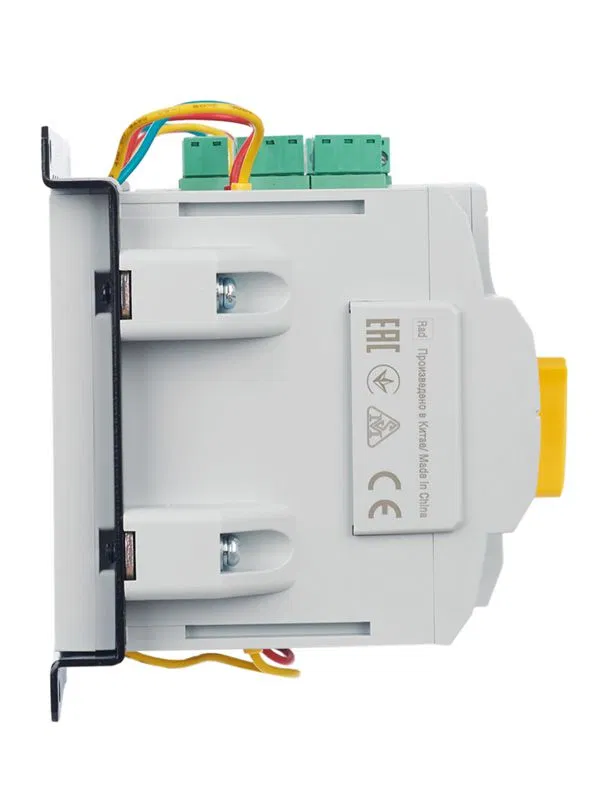

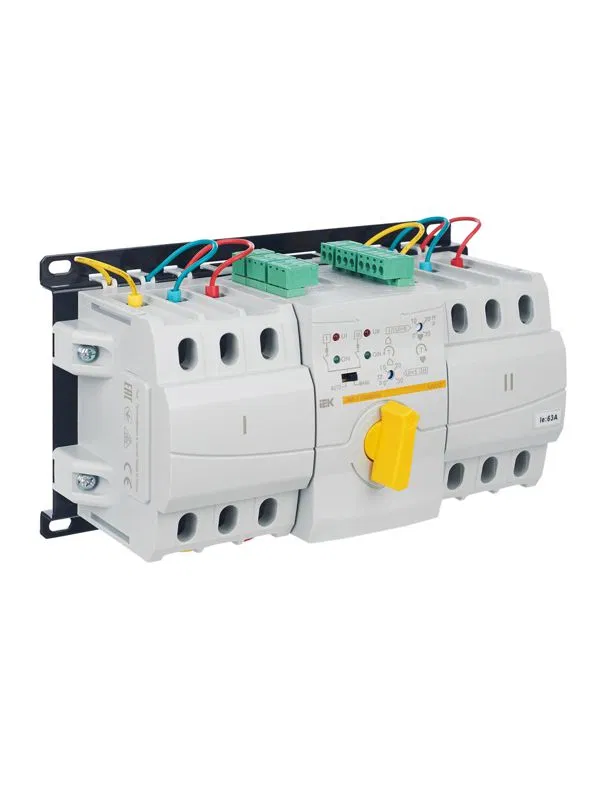

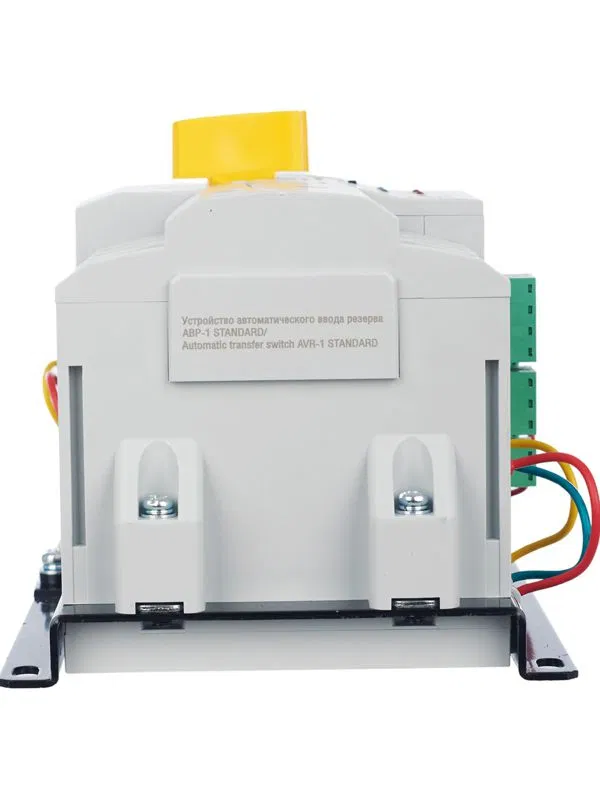

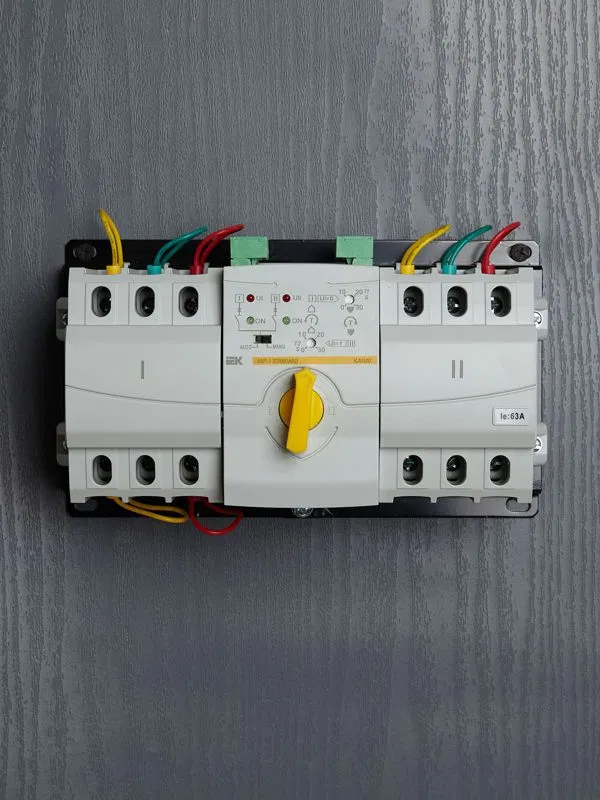

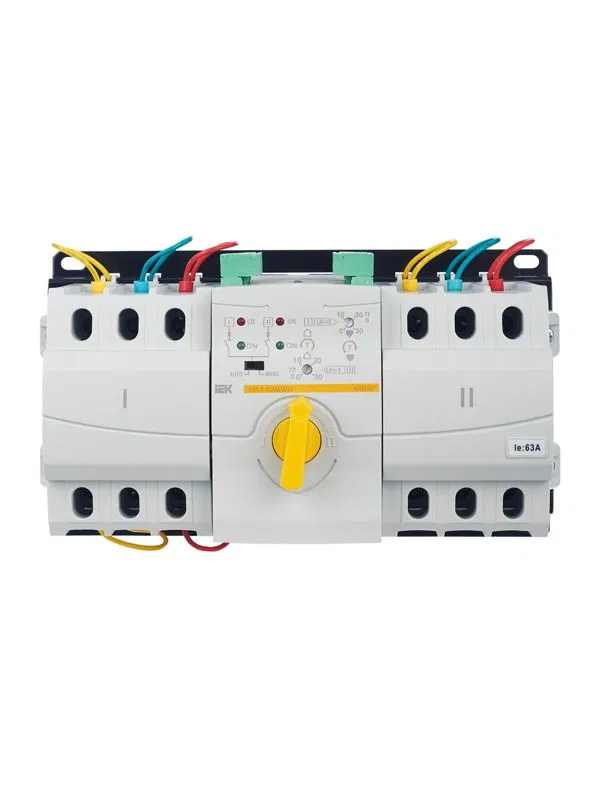

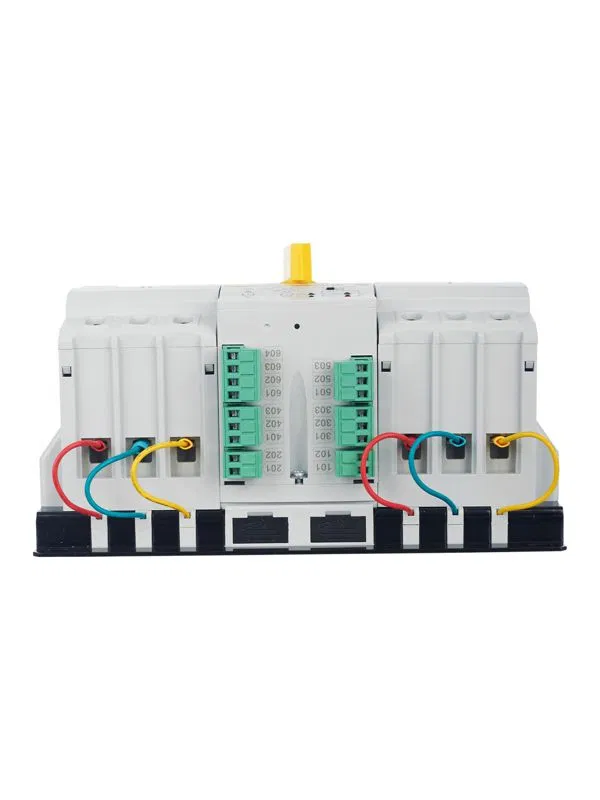

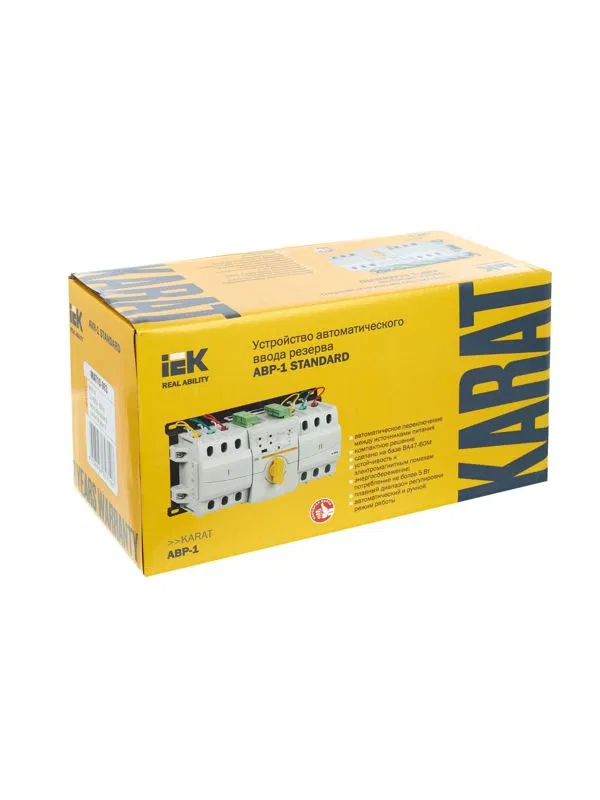

Modular automatic transfer switch AVR-1 STANDARD 63A KARAT IEK MAT10-063
SKU: MAT10-063
ETIM: EC002283
25,159 ₽
Get back 251 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Upper voltage threshold for ATS operation
260
Height
125 мм
Height
125 мм
Depth
121 мм
Mechanical design group per GOST 17516.1
M2
Operating voltage range
175...265
Operating temperature range
-5...40
Classification by short-circuit current response capability per GOST IEC 60947-6-1
SV
Number of handle operating positions
3
Number of poles
3
Maximum number of conductors per terminal
≤ 2
Modular design
No
Tightening torque of contact terminal screws
2
Fire protection present
Yes
Generator control relay present
Yes
Lower ATS operating voltage threshold
180
Rated AC voltage 50 Hz
400 В
Rated current
63 А
Rated current of generator control relay
3
Power consumption
≤ 5 кВт
Connection capability
1...25
Breaking capacity in accordance with IEC947, Icu, 400 V
6.0 кА
Switching modes
Auto changeover with auto return, without auto return, generator start mode
With earth fault protection function
No
Switching control method
Manual and automatic
Type of built-in circuit breakers
VA47-60M
Type of connectable conductors
Wires and cables with special preparation and busbars
Overload protection device to
63 А
Overload protection device from
63 А
Overcurrent tripping characteristic type
S
Width
248 мм
