Automatic transfer switch ATS 3p TSM-100/50 PROxima EKF ats-tsm-50A-3p-pro
SKU: ats-tsm-50A-3p-pro
ETIM: EC002283
52215 ₽
Price list (incl. VAT):
97903 ₽
Preorder

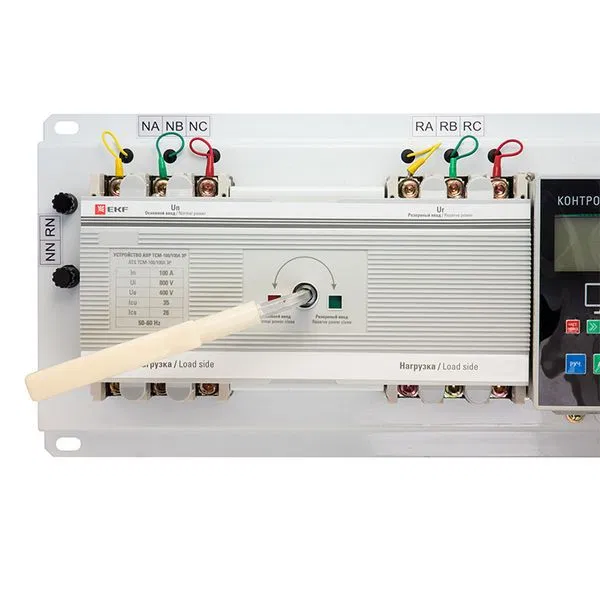

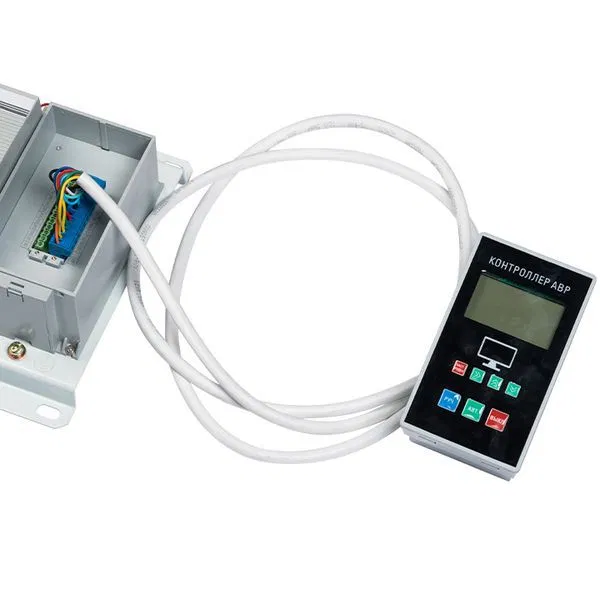

The ATS TSM EKF device is designed to provide backup power supply to a load connected to a power supply system that has a main and a backup input. The ATS device automatically connects the backup power line in case of voltage loss on the main line. Additionally, the ATS TSM device has a protection function against overload currents and short circuits of distribution networks and electric motors. The ATS TSM device with controller control can be configured for several switching programs.
| Standby contact closing time | 0...30 мс |
| Main supply contact opening time | 0...30 мс |
| Height | 241 мм |
| Height | 241 мм |
| Depth | 141 мм |
| Number of inputs | 2 |
| Number of outputs | 1 |
| Number of poles | 3 |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Modular design | No |
| Rated input voltage | 400 В |
| Rated AC voltage 50 Hz | 400 В |
| Generator rated input current | 50 А |
| Rated input current from external fixed mains | 50 А |
| Rated current | 50 А |
| Breaking capacity in accordance with IEC947, Icu, 400 V | 35 кА |
| With overheating protection | Yes |
| With LED display | Yes |
| With earth fault protection function | No |
| IP protection rating | IP20 |
| Operating temperature from | -5...40 град.C |
| Residual current device (RCD) | No |
| Overload protection device to | 50 А |
| Overload protection device from | 50 А |
| Frequency (Hz) | 50/60 Hz |
| Width | 420 мм |
