105,174 ₽
Get back 1,051 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse

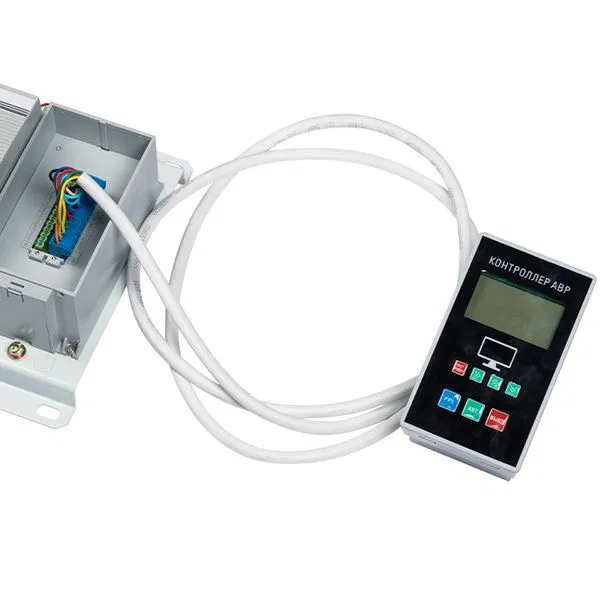

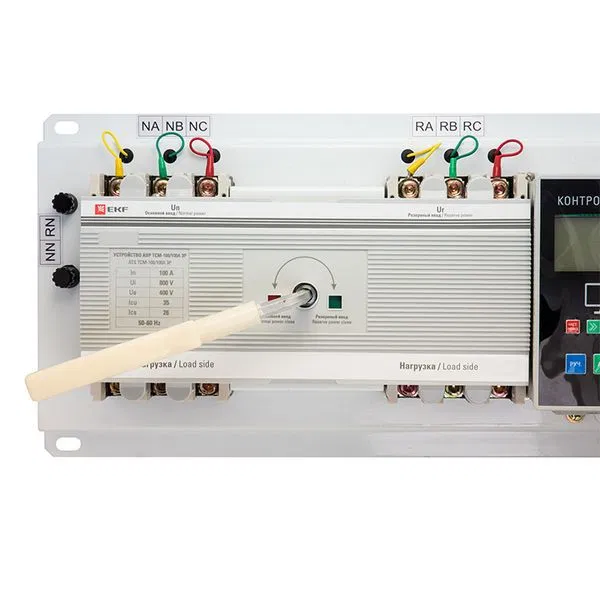

The ATS TSM EKF device is designed to provide backup power supply to a load connected to a power supply system that has a main and a backup input. The ATS device automatically connects the backup power line in case of voltage loss on the main line. Additionally, the ATS TSM device has a protection function against overload currents and short circuits of distribution networks and electric motors. The ATS TSM device with controller control can be configured for several switching programs.
Standby contact closing time
0...30 ms
Main supply contact opening time
0...30 ms
Height
332 mm
Depth
200 mm
Number of inputs
2
Number of outputs
1
Number of poles
3
Number of input phases
3
Number of output phases
3
Modular design
No
Rated input voltage
400 V
Rated AC voltage 50 Hz
400 V
Generator rated input current
400 A
Rated input current from external fixed mains
400 A
Rated current
400 A
Breaking capacity in accordance with IEC947, Icu, 400 V
50 kA
With overheating protection
Yes
With LED display
Yes
With earth fault protection function
No
IP protection rating
IP20
Operating temperature from
-5...40 °C
Thermal protection
No
Residual current device (RCD)
No
Overload protection device to
400 A
Overload protection device from
400 A
Frequency (Hz)
50/60 Hz
Width
613 mm
