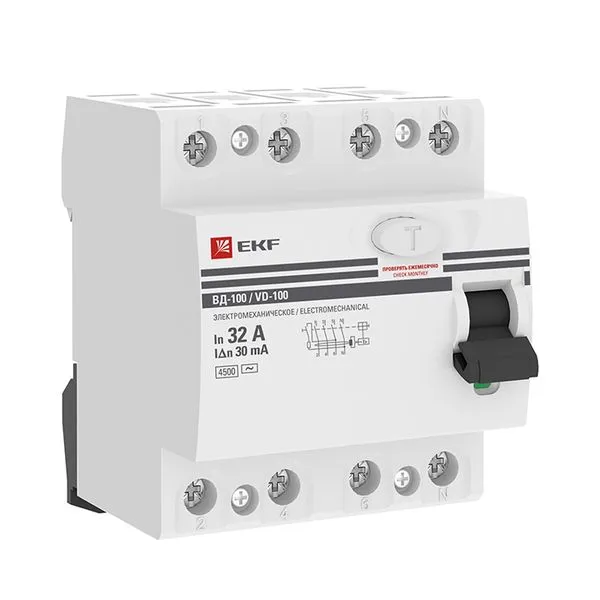

Residual current device VD-100 4P 32A 30mA type AC electromechanical 4.5kA PROXIMA EKF elcb-4-32-30-em-pro
SKU: elcb-4-32-30-em-pro
ETIM: EC000003
1,923 ₽
Get back 19 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Additional equipment possible
No
Mounting installation depth
74 мм
Number of poles
4
Rated breaking capacity in accordance with EN 60898
4.5 кА
Rated ultimate breaking capacity (Icw)
4.5 кА
Rated impulse voltage
4 кВ
Rated voltage
400 В
Rated insulation voltage Ui
660 В
Rated current
32 А
Rated leakage current
0.03 мА
Ambient operating temperature to
50 град.C
Ambient operating temperature from
-25...55 град.C
With short-time delayed tripping
No
With interlock device
No
Selective protection
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
1...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1...25 кв.мм
Mounting method
DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Residual current type
AC (alternating)
Resistance to current surges
4.5 кА
Frequency (Hz)
50 Hz
Width in modular units
4
