EKF
Surge protection device T1+T2; Iimp-12.5kA; In-20kA; Uc-275V; 1+0 EKF OV12-1-501
SKU: OV12-1-501
ETIM: EC000941
4,125 ₽
Get back 41 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Built-in input fuse
No
Pole design
1
Class 2
Yes
Frame size (overall dimension)
1 module
DC system configuration
No
IT system configuration
No
TN system configuration
Yes
TN-C system configuration
Yes
TN-C-S system configuration
Yes
TN-S system configuration
Yes
TT system configuration
Yes
Maximum solid conductor cross-section (single-wire/stranded)
25 кв.мм
Maximum solid conductor cross-section (single-wire/stranded)
25 кв.мм
Maximum discharge current (8/20)
12.5 кА
Maximum continuous AC voltage
275 В
Rated AC voltage
.22 В
Rated DC voltage
0 В
Rated impulse current (8/20)
20 кА
With remote signalling contact
Yes
Rigid conductor cross-section to
25 кв.мм
Rigid conductor cross-section from
6...25 кв.мм
Alarm in device
Optical
Earthing system
Other
Mounting method
DIN rail (O-profile) 35 mm
IP protection rating
IP20
Voltage protection level
1.6 кВ
Voltage protection level, type L-PE/N-PE
1.6 кВ
Number of conductive cores (without earth)
1
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
1637 ₽

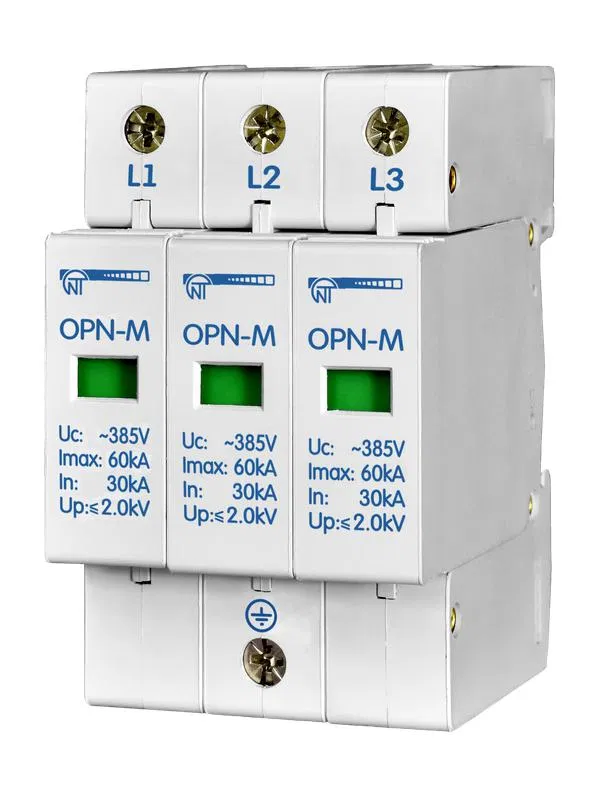

НовАтек-Электро Surge Arrester OPN-M (1S) 30kA 1 module 380V In:30kA Novatek-Electro 567891-30
