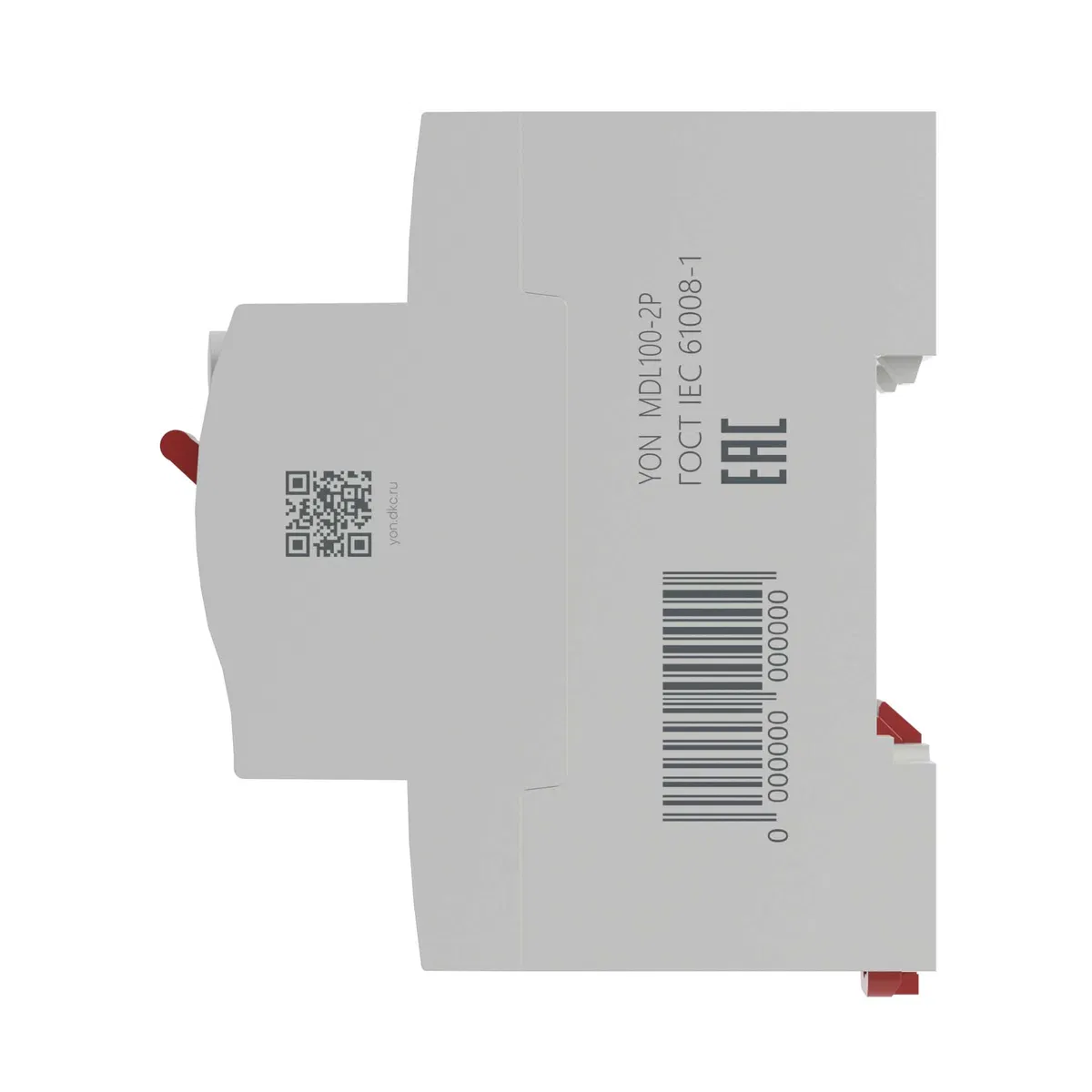

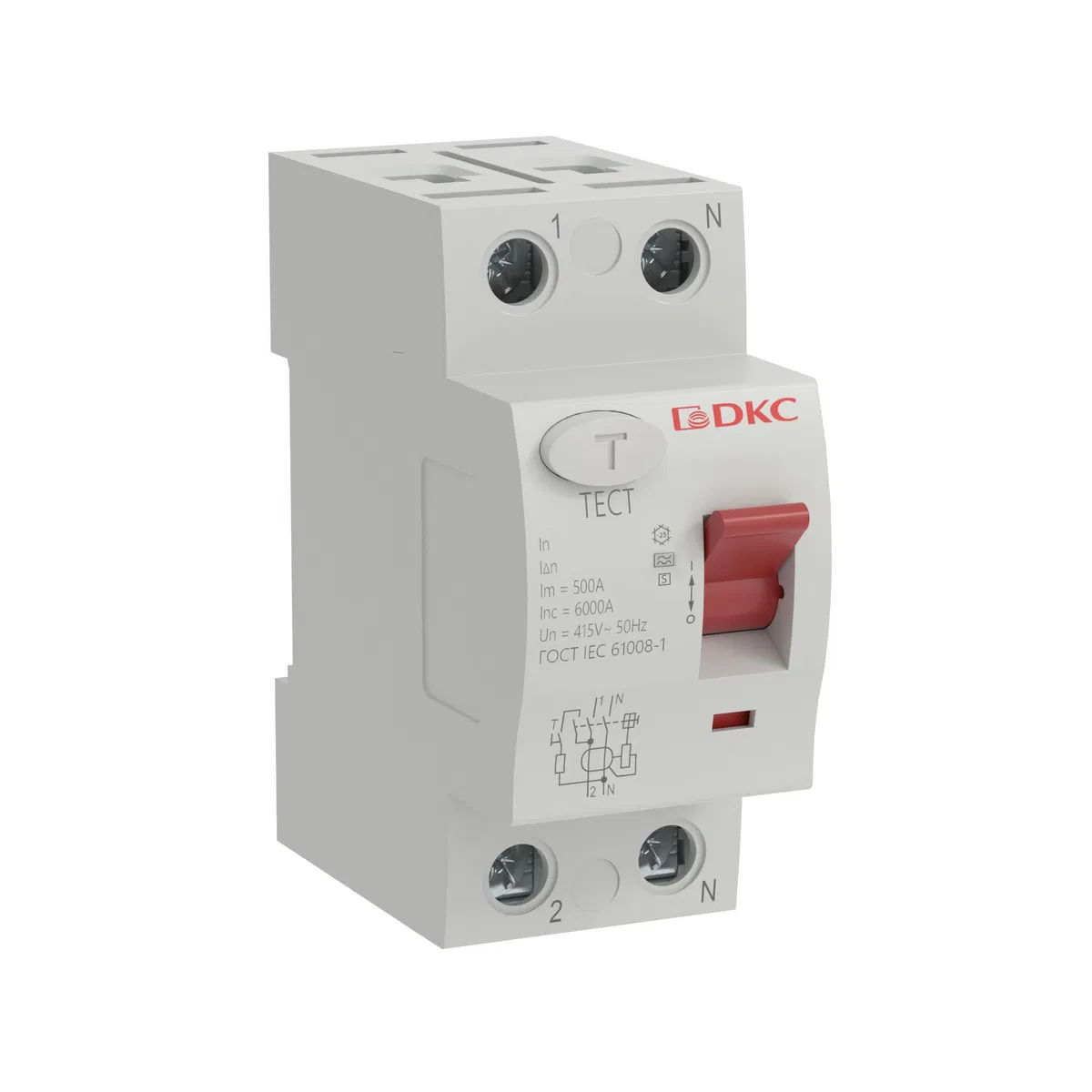

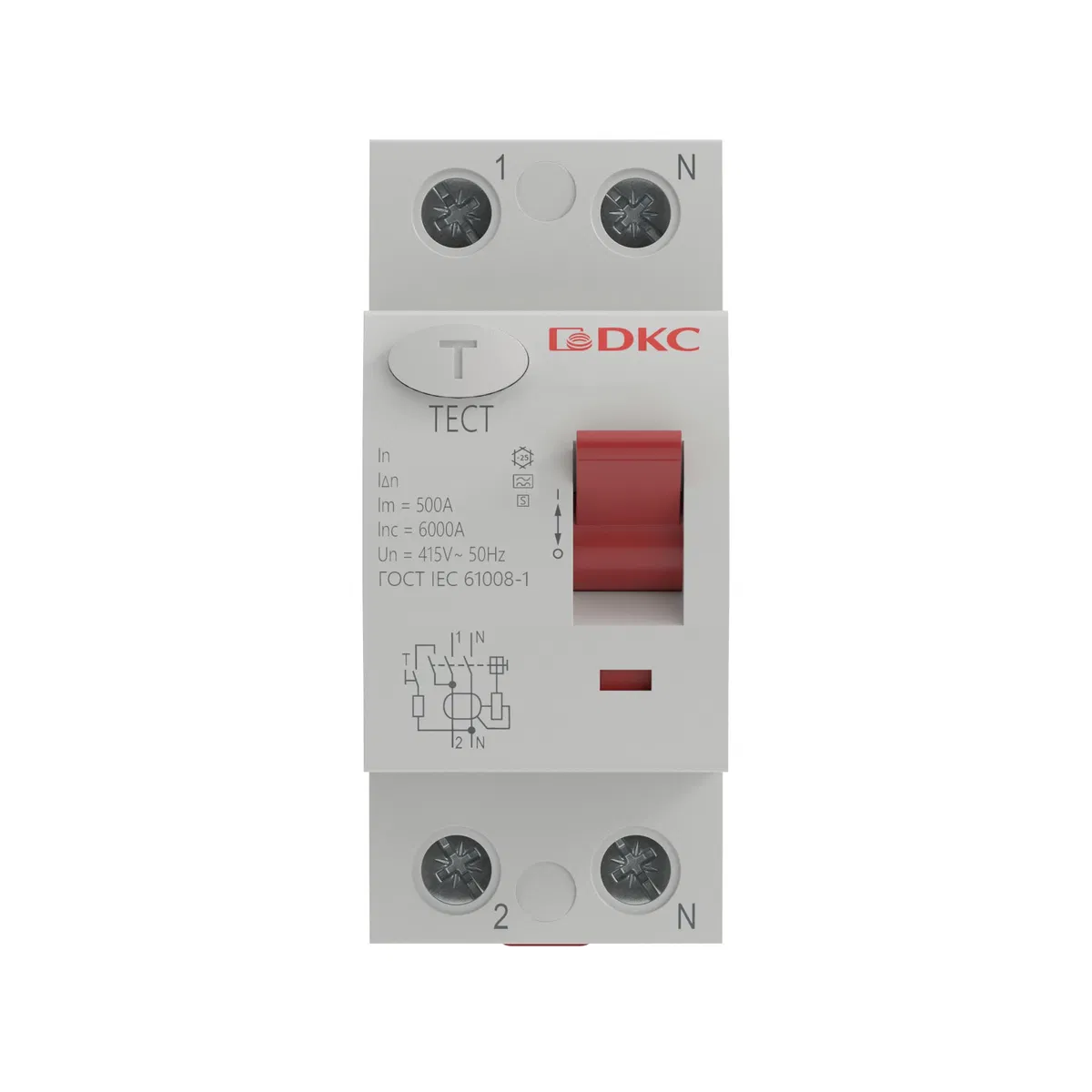

Selective Residual Current Device YON max (YON max) type MDL100, 2 poles, 30mA, 32A, type A MDL100-2P2-32-A-S DKC
SKU: MDL100-2P2-32-A-S
ETIM: EC000003
2,212 ₽
Get back 22 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
Selective two-pole residual current device (RCD) type A with rated current 32 A, leakage current 30 mA, breaking capacity 10 kA. Designed to protect people from electric shock and protect against fires due to current leakage. Used in networks with voltage 230 V. Manufacturer's warranty — 5 years. Modular equipment "YON max" is an ideal solution used in both residential and industrial segments. A wide range (modular circuit breakers up to 10 kA, residual current circuit breakers, residual current devices, surge protective devices, and modular contactors) allows for electrical protection of any facility.
Number of poles
2
Rated ultimate breaking capacity (Icw)
10 кА
Rated impulse voltage
4 кВ
Rated voltage
240 В
Rated current
32 А
Rated leakage current
30 мА
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-25 град.C
Selective protection
Yes
Mounting method
DIN rail
IP protection rating
IP20
Residual current type
A
Resistance to current surges
10 кА
Frequency (Hz)
50 Hz
Width in modular units
2
