DKC

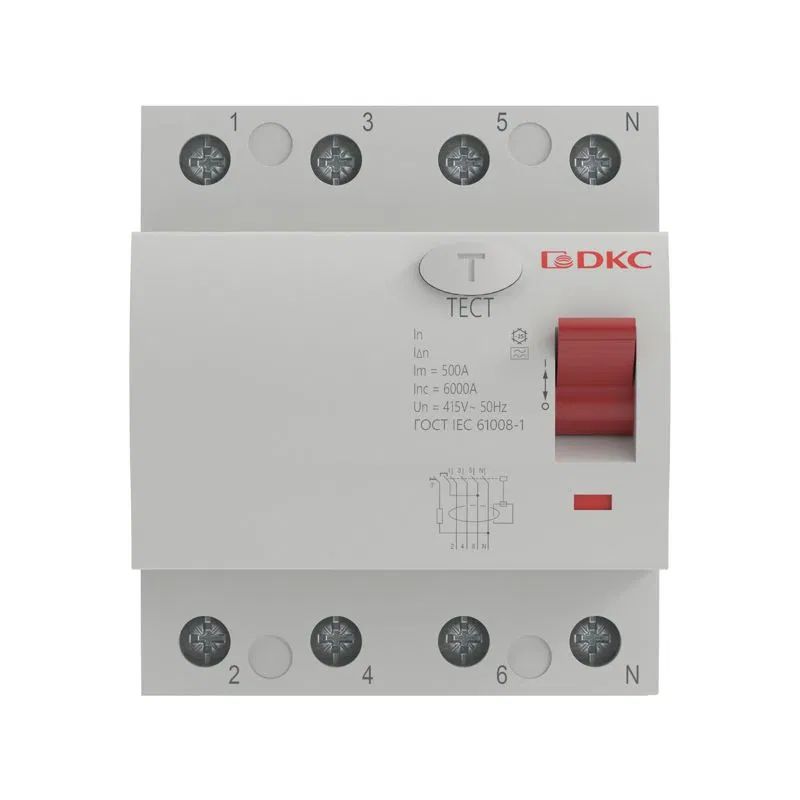

Residual Current Device YON max (YON max) type MDL100, 4 poles, 300mA, 16A, type A MDL100-4P4-16-A DKC
SKU: MDL100-4P4-16-A
ETIM: EC000003
3,832 ₽
Get back 38 ₽ in points
Analogues by specifications
Four-pole residual current device (RCD) type A with rated current 16 A, leakage current 300 mA, breaking capacity 10 kA. Designed to protect people from electric shock and protect against fires due to current leakage. Used in networks with a voltage of 400 V. Manufacturer's warranty — 5 years. Modular equipment "YON max" (YON max) is an ideal solution used in both the residential and industrial segments. A wide range (modular circuit breakers up to 10 kA, differential circuit breakers, residual current devices, surge protection devices, and modular contactors) allows for the implementation of electrical protection for any facility.
Number of poles
4
Rated ultimate breaking capacity (Icw)
10 кА
Rated impulse voltage
4 кВ
Rated voltage
415 В
Rated current
16 А
Rated leakage current
300 мА
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-25 град.C
Selective protection
No
Mounting method
DIN rail
IP protection rating
IP20
Residual current type
Please provide the text you would like me to translate.
Resistance to current surges
10 кА
Frequency (Hz)
50 Hz
Width in modular units
4
