DKC

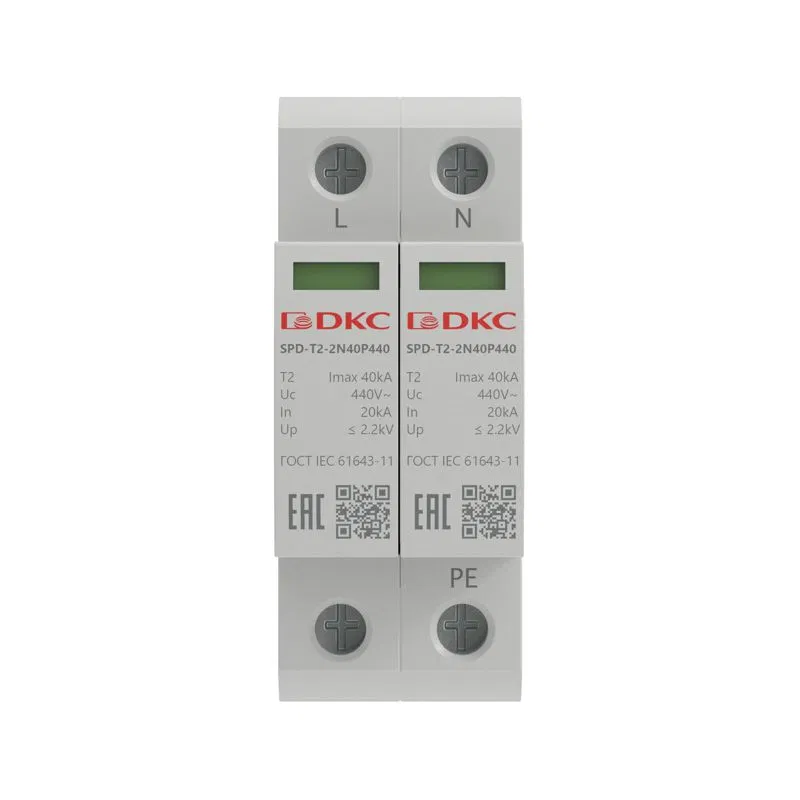

Surge protective device, type 2, 2 poles, Imax 40kA, with replaceable module, Un 440V SPD-T2-2N40P440 DKC
SKU: SPD-T2-2N40P440
ETIM: EC000941
4,641 ₽
Get back 46 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Built-in input fuse
No
Other system configuration
false
Class 2
Yes
Frame size (overall dimension)
2 modular spacing
DC system configuration
false
IT system configuration
false
TN system configuration
Yes
TN-C system configuration
false
TN-C-S system configuration
Yes
TN-S system configuration
Yes
TT system configuration
Yes
Maximum solid conductor cross-section (single-wire/stranded)
35 кв.мм
Maximum solid conductor cross-section (single-wire/stranded)
35 кв.мм
Maximum discharge current (8/20)
40 кА
Maximum continuous AC voltage
440 В
Rated AC voltage
440 В
Rated impulse current (8/20)
20 кА
With remote signalling contact
No
Alarm in device
No (without)
Earthing system
TN-S
Mounting method
DIN rail 35 mm
IP protection rating
IP20
Voltage protection level
2.2 кВ
Number of conductive cores (without earth)
2
