IEK

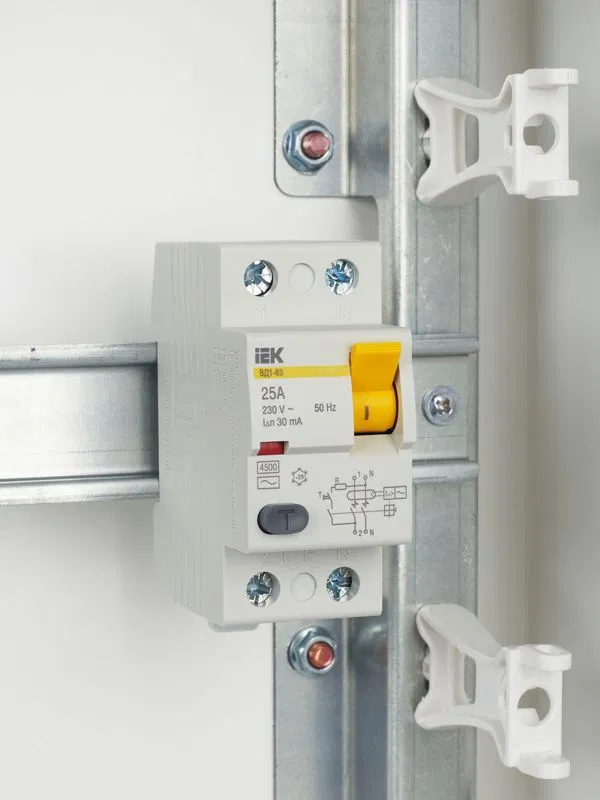

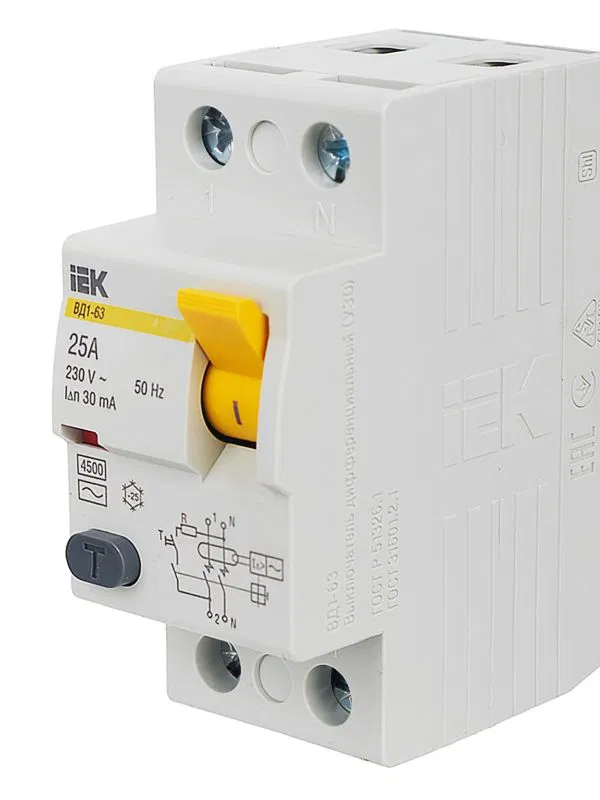

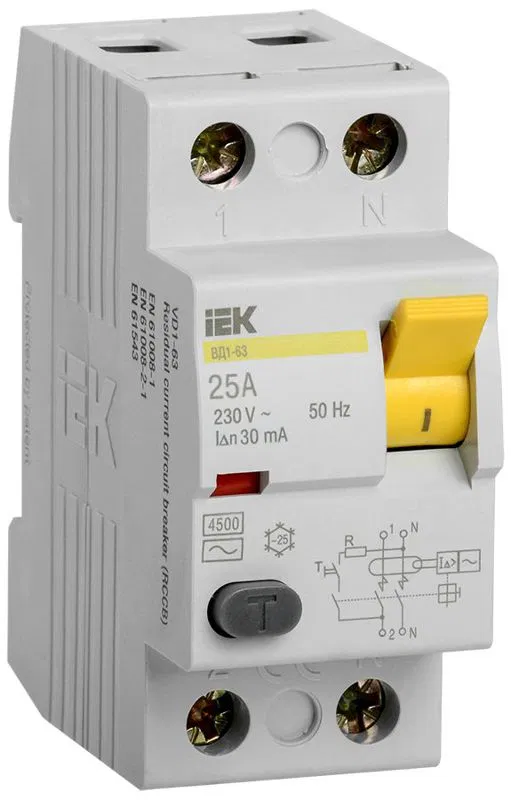

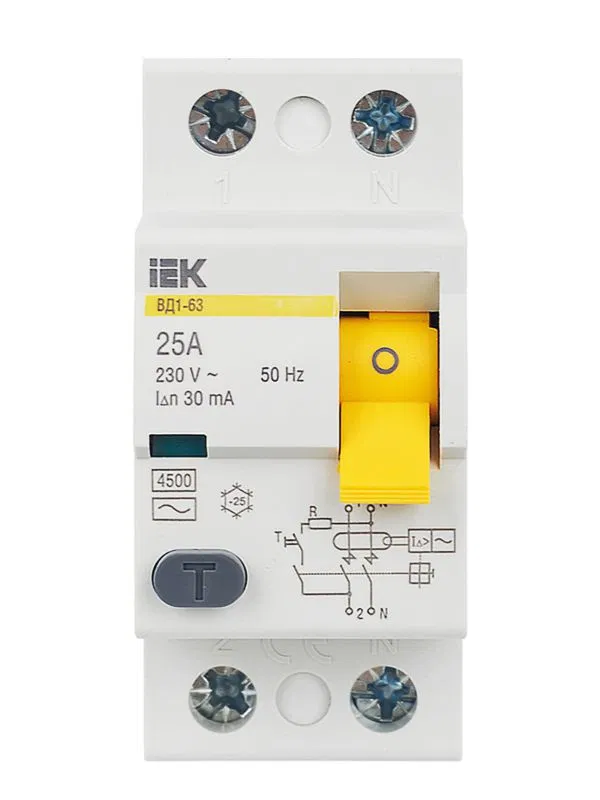

Residual Current Circuit Breaker (RCCB) VD1-63 2P 25A 30mA IEK MDV10-2-025-030
SKU: MDV10-2-025-030
ETIM: EC000905
71,616 ₽
Get back 716 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 48 шт
Analogues by specifications
Stock by warehouse
Rapid-acting residual current circuit breaker, reacting to differential current, without built-in overcurrent protection. Designed to protect humans from electric shock during accidental unintentional contact with live parts of electrical installations and prevents fires due to leakage currents to ground. It has no power consumption and high mechanical wear resistance.
Additional equipment possible
No
Mounting installation depth
74.0 мм
Number of poles
2
Maximum supply cable cross-section
50 кв.мм
Rated impulse withstand voltage
6
Rated leakage current
0.03
Rated ultimate breaking capacity (Icw)
3 кА
Rated voltage
230 В
Rated current
25 А
Rated current
25 А
Rated leakage current
.03 мА
With short-time delayed tripping
No
Selective protection
No
Mounting method
On DIN rail
IP protection rating
IP20
Residual current type
Alternating current (AC)
Conditional rated residual short-circuit current
4.5
Conditional rated short-circuit current Iq
4.5 кА
Resistance to current surges
0.25 кА
Frequency
50 Hz Гц
Frequency (Hz)
50 Hz
Width in modular units
2
