ITK (группа IEK)

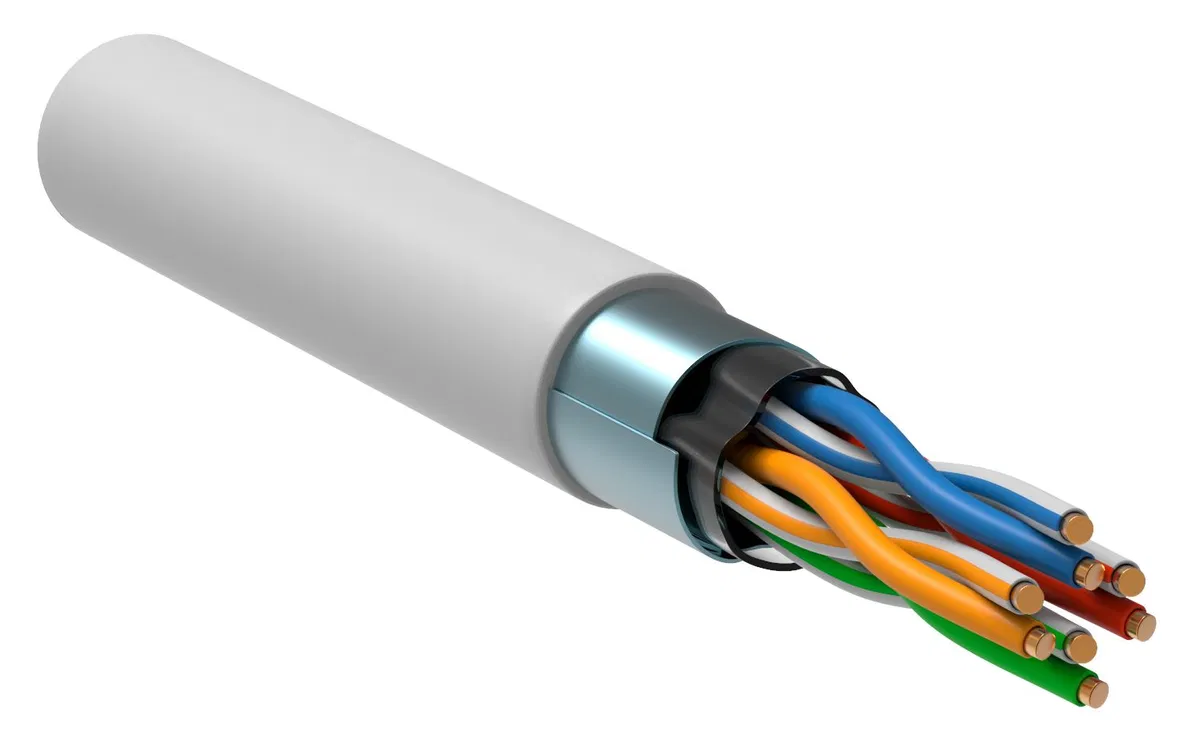

ITK Twisted Pair F/UTP cat.5E 4x2x0.52 solid PVCLS ng(A)-LSLTx white (305m) RF/T LC1-C5E04-328-T-P-R
SKU: LC1-C5E04-328-T-P-R
ETIM: EC003249
Price on request
Analogues by specifications
Stock by warehouse
No description available
Cable outer diameter
6.1
Wave impedance
100 Ом
Conductor diameter
0.52 мм
Cable length
305 м
Permissible operating temperature (without movement) from
-50...70 град.C
Core insulation
Solid polyethylene
Category
5E
Conductor class
Class 1 (solid conductor)
Reaction to fire class in accordance with EN 13501-6
P1b.8.2.1.2
Max mutual capacitance per 100 metres
5.6
Max. contact resistance
20
Max. capacitance unbalance pF per 100 m
160
Max DC resistance per 100m at 20°C, not more than
9.5
Outer sheath material
Other
Mounting temperature from
-30...70 град.C
Rated transmission rate
69
Rated voltage from
≤ 48 В
Rated conductor cross-section
0.21 кв.мм
Core cross-section
24 мм
Insulation resistance
5000
Operating temperature from
-50...70 град.C
Twist type
Lay (layer)
Outer sheath colour
White
Signal frequency
100
Screen over stranding element
No
Dielectric strength
1000
Twisting element
Paired
