ITK (группа IEK)

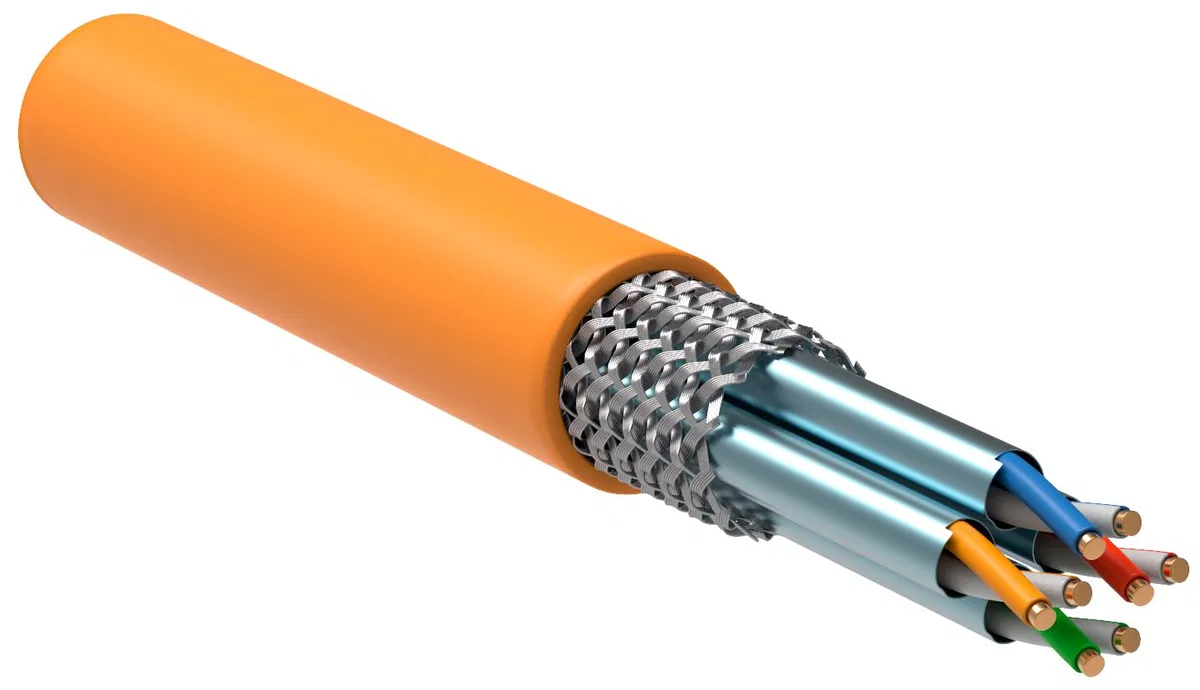

ITK Twisted pair S/FTP cat.7A 4x2x23AWG solid LSZH нг(А)-HF orange (305m) LC1-C7A04-627-P
SKU: LC1-C7A04-627-P
ETIM: EC003249
Price on request
Analogues by specifications
No description available
Cable outer diameter
7.8
Wave impedance
100 Ом
Conductor diameter
0.58 мм
Cable length
305 м
Permissible operating temperature (without movement) from
-60…70 град.C
NVP value
74 %
Core insulation
Foamed polyethylene
Category
7A (IEC)
Conductor class
Class 1 (solid conductor)
Reaction to fire class in accordance with EN 13501-6
P1b.8.1.2.1
Max mutual capacitance per 100 metres
5.6
Max. contact resistance
20
Max. capacitance unbalance pF per 100 m
160
Max DC resistance per 100m at 20°C, not more than
9.38
Outer sheath material
Other
Mounting temperature from
-20...60 град.C
Low smoke emission in accordance with EN 61034-2 (ng-LS version)
Yes
Rated transmission rate
74
Rated voltage from
≤ 48 В
Rated conductor cross-section
0.255 кв.мм
Core cross-section
23 мм
Insulation resistance
5000
Operating temperature from
-60…70 град.C
Signal frequency
1000
Screen over the twist
Braid
Dielectric strength
1000
Twisting element
Paired
