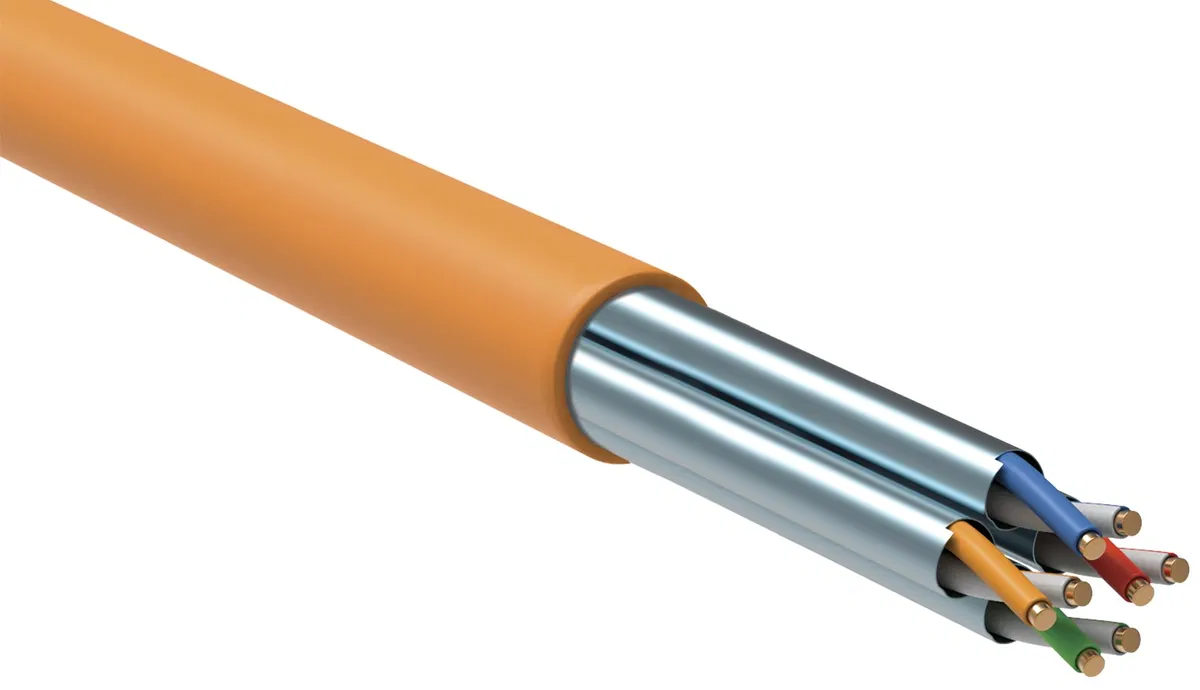

ITK Витая пара U/FTP кат.6A 4х2х23AWG solid LSZH нг(А)-HF оранжевый (305м) LC1-C6A04-227-P

SKU: LC1-C6A04-227-P

ETIM: EC003249

Price on request

Preorder

Description Specifications Reviews

Cable outer diameter	7,1
Wave impedance	100 Ом
Conductor diameter	0.57 мм
Cable length	305 м
For laying in the ground
Permissible operating temperature (without movement) from	-60…70 град.C
NVP value	72 %
Core insulation	Foamed polyethylene
Category	6A (IEC)
Conductor class	Class 1 (solid conductor)
Reaction to fire class in accordance with EN 13501-6	P1b.8.1.2.1
Number of cores
Number of twisted elements
Max mutual capacitance per 100 metres	5.6
Max. contact resistance	20
Max. capacitance unbalance pF per 100 m	160
Max DC resistance per 100m at 20°C, not more than	9,5
Cable/wire grade	U/FTP
Core marking
Outer sheath material	Other
Conductor material
Mounting temperature from	-20...60 град.C
Outer diameter (approx.)	мм
Low smoke emission in accordance with EN 61034-2 (ng-LS version)	Yes
Rated transmission rate	72
Rated voltage from	≤ 48 В
Rated conductor cross-section	0,255 кв.мм
Halogen-free (per IEC 60754-2)
Core cross-section	23 мм
Insulation resistance	5000
Operating temperature from	-60…70 град.C
UV resistance
Outer sheath colour
Signal frequency	500
Screen over the twist	No
Screen over stranding element
Dielectric strength	1000
Twisting element	Paired
