ITK (группа IEK)

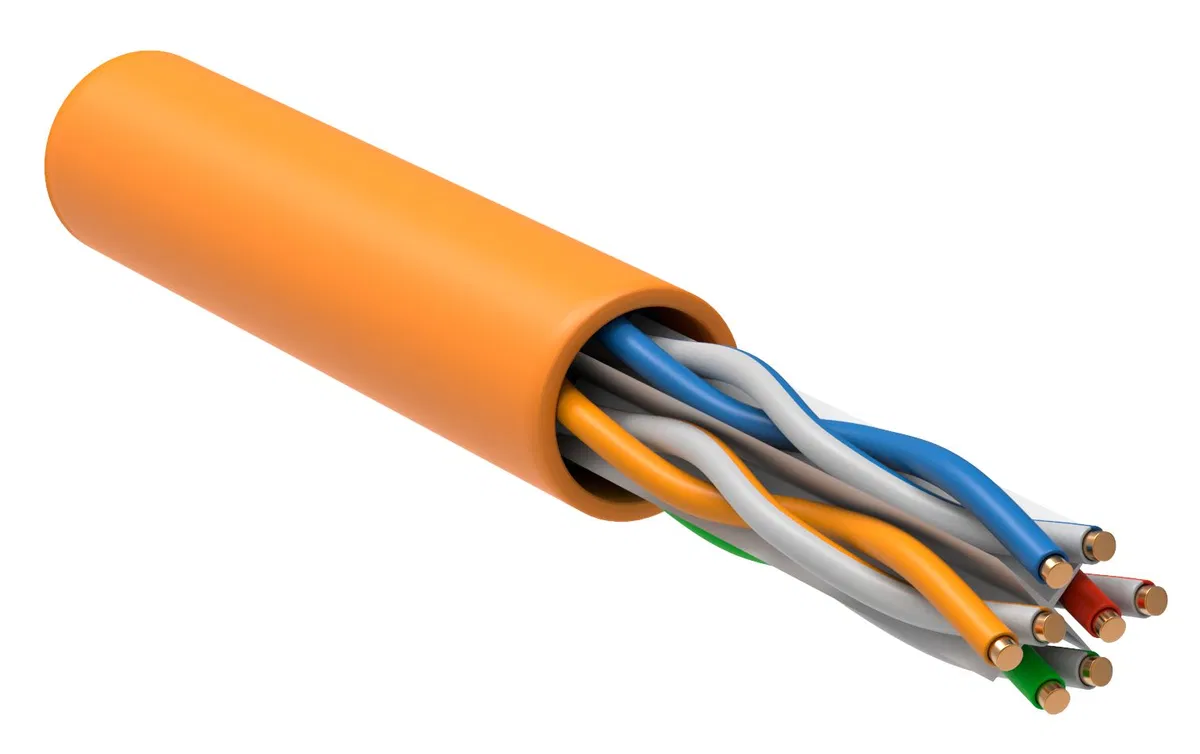

ITK Twisted Pair U/UTP cat.6 4x2x0.57 LSZH ng(A)-HF orange (305m) RF/T LC1-C604-127-T-P-R
SKU: LC1-C604-127-T-P-R
ETIM: EC003249
Price on request
Analogues by specifications
Stock by warehouse
No description available
Cable outer diameter
6.3±0.3
Wave impedance
100 Ом
Conductor diameter
0.57 мм
Cable length
305 м
Permissible operating temperature (without movement) from
-60…70 град.C
NVP value
70 %
Core insulation
Solid polyethylene
Conductor class
Class 1 (solid conductor)
Reaction to fire class in accordance with EN 13501-6
P1b.8.1.2.1
Max mutual capacitance per 100 metres
5.6
Max. contact resistance
20
Max. capacitance unbalance pF per 100 m
160
Max DC resistance per 100m at 20°C, not more than
9.5
Cable/wire grade
U/UTP
Outer sheath material
LSZH ng(A)-HF
Mounting temperature from
-30…70 град.C
Rated transmission rate
70
Rated voltage from
≤ 48 В
Rated conductor cross-section
0.26 кв.мм
With metal cable
No
Core cross-section
23 мм
Insulation resistance
5000
Operating temperature from
-60…70 град.C
Twist type
Lay (layer)
Signal frequency
250
Screen over the twist
No
Screen over stranding element
No
Dielectric strength
1000
Twisting element
Paired
