Fortisflex

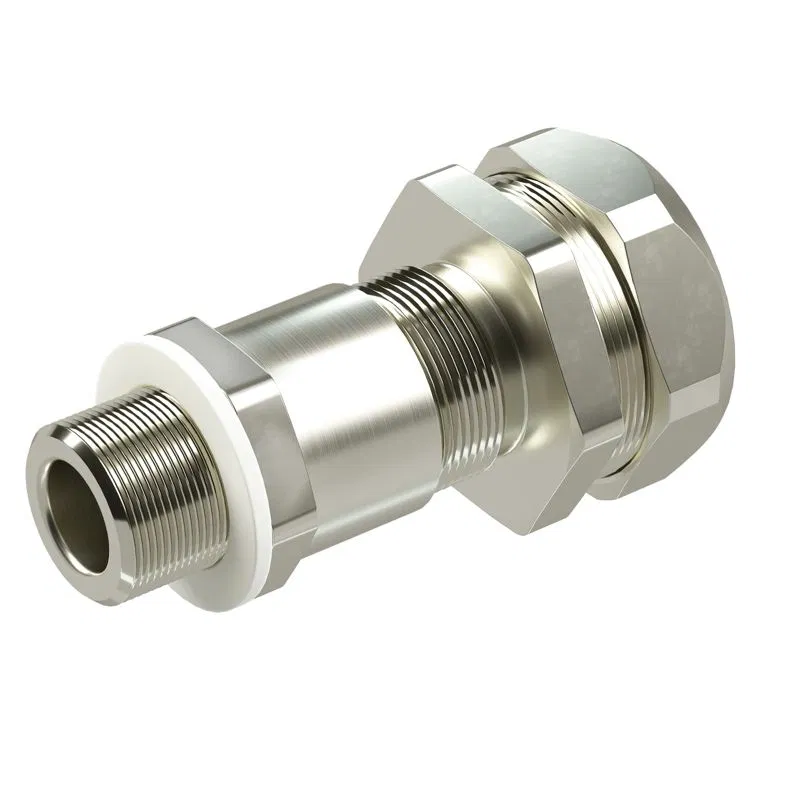

Cable gland for metal hose stainless steel VK-M20(6-12 mm)-MR15 (INOX) 88168 Fortisflex
SKU: 88168
ETIM: EC000441
1784 ₽
Available August 6
Order multiple: 10
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
|
Manufacturer warehouse
Available
|
397 | pcs | August 6 | August 6 |
Select a warehouse to order
• For hermetic cable and wire entry/exit in flexible metal conduit within electrical switchgear enclosures
• Material:
• nut, body, locknut: AISI 304 stainless steel
• clamping insert: nylon 6.6, self-extinguishing per UL94V2
• sealing insert and rings: neoprene
• Operating temperature: from -40 °C to +100 °C, short-term +120 °C
• Protection degree IP68
• Thread type: metric per EN 60423 2 in 1: cable gland and conduit connector in one product
• Resistant to synthetic oils and all types of fuel
• Possess special strength, durability, and resistance to aggressive environmental impacts
• Hole mounting tools:
• hydraulic systems for punching holes:
• PGPO-60
• PGPO-60A
• PGPO-115
• hydraulic presses for punching holes:
• PGRO-60A
• PGROu-60A
• PGROp-60A
• PGAPO-60A
• MPO dies for punching round holes, perfom sets: NMPO-PG, NMPO-MG
| Material type/grade | Stainless steel (V2A) |
| For gas explosion hazardous areas | No (without) |
| For cable diameter to | 12 мм |
| For cable diameter from | 6 мм |
| For dust explosion protection zone (EU ATEX directives) | No (without) |
| Kink protection | No |
| Design | Straight |
| Flat cable gland | No |
| Material | Metal |
| Halogen-free | Yes |
| Nominal metric/PG thread size | 15 |
| IP protection rating | IP68 |
| Operating temperature to | 100 град.C |
| Operating temperature from | -40 град.C |
| Thread type | Metric |
| Sealing type | Sealing ring (gasket) |
| Color | Nickel |
| Thread pitch | 1.5 мм |
| EMC-compatible version | Yes |
