Price on request
Order multiple: 2 шт
Analogues by specifications

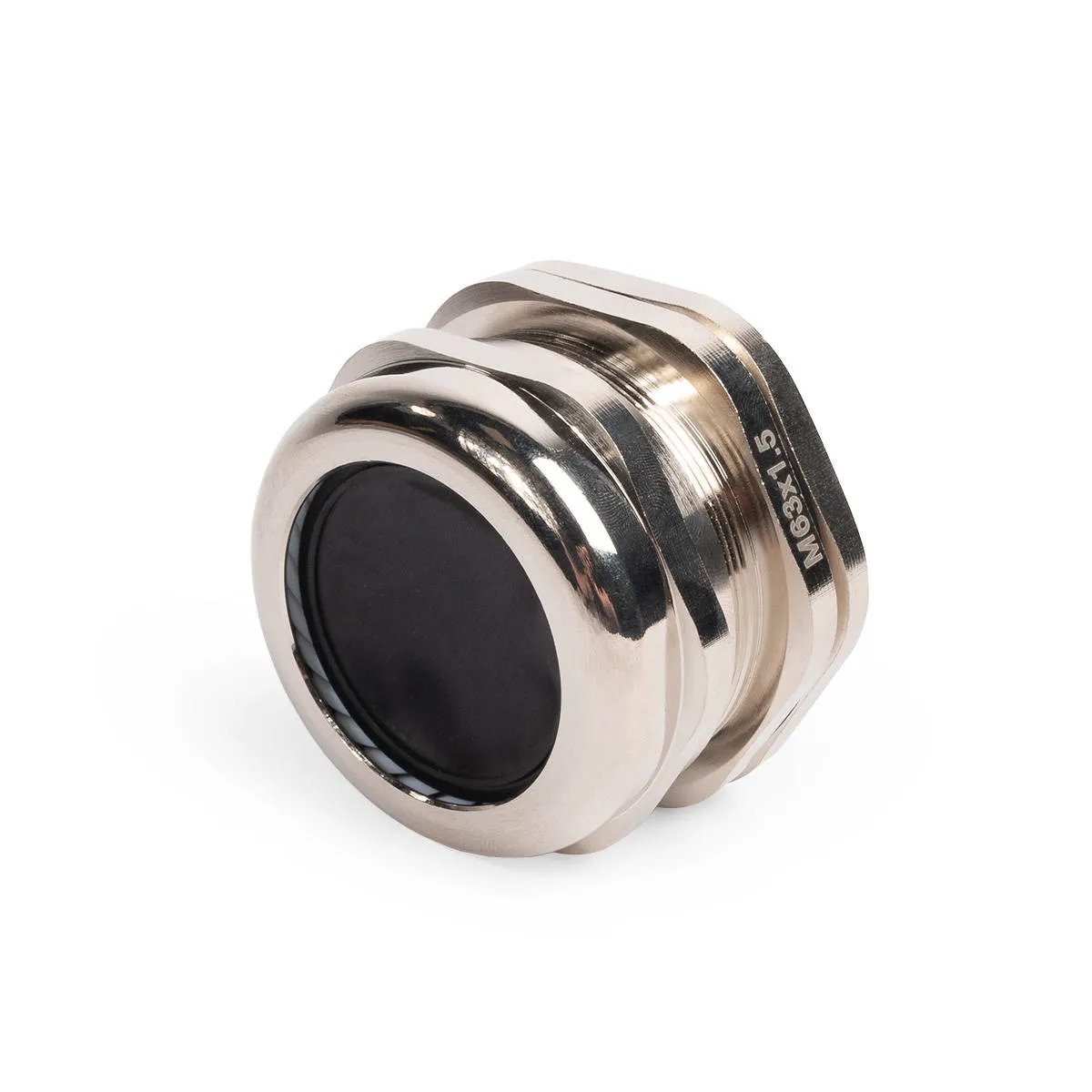

• For airtight cable and wire entry-exit in electrical switchgear enclosures
• Material:
• nut, body, union nut: nickel-plated brass
• clamping insert: nylon 6.6 per UL94 V2
• sealing insert and rings: neoprene
• Operating temperature: from -40 °C to +100 °C, briefly +120°C
• IP68 protection rating
• Thread type: metric according to EN 60423
• Resistant to synthetic oils and all types of fuel
• Thanks to the plastic insert and rubber ring, it provides a tight grip on the cable
• Possesses special strength, durability, and resistance to aggressive environmental impacts
• Protective membrane prevents dust ingress
• Hole mounting tools:
• hydraulic systems for punching holes:
• PGPO-60
• PGPO-60A
• PGPO-115
• hydraulic presses for punching holes:
• PGRO-60A
• PGROu-60A
• PGROp-60A
• PGAPO-60A
• MPO dies for punching round holes, perfomance sets: NMPO-PG, NMPO-MG
Material type/grade
Brass
Design capability
Yes
Device height
81 мм
Device depth
37 мм
For gas explosion hazardous areas
No (without)
For cable diameter to
44 мм
For cable diameter from
37 мм
For dust explosion protection zone (EU ATEX directives)
No (without)
For outdoor installation
No
Kink protection
No
Design
Straight
Flat cable gland
No
Category
3
Material
Metal
Mechanical coding
No
Cable trunking installation
No
Floor box/floor mounting
No
Halogen-free
Yes
Nominal metric/PG thread size
0
Terminating resistor
No
Separate earth terminal
No
Separate compensator
No
Suitable for number of sockets/couplings
1
With gland/connector
Yes
With text field
No
Flush mounting
Yes
Shield connection method
No (without)
Connection method
Insulation-piercing terminal
IP protection rating
IP65
Operating temperature to
100 град.C
Operating temperature from
-40 град.C
Configuration type
Basic element with assembled housing
Fastening type
Screw
Connector type
RJ11
Thread type
Metric
Sealing type
Sealing ring (gasket)
Color
Nickel
Colour coding
Yes
Thread pitch
1.5 мм
Device width
81 мм
Shielded connectors
No
Shielded housing
No
