Fortisflex

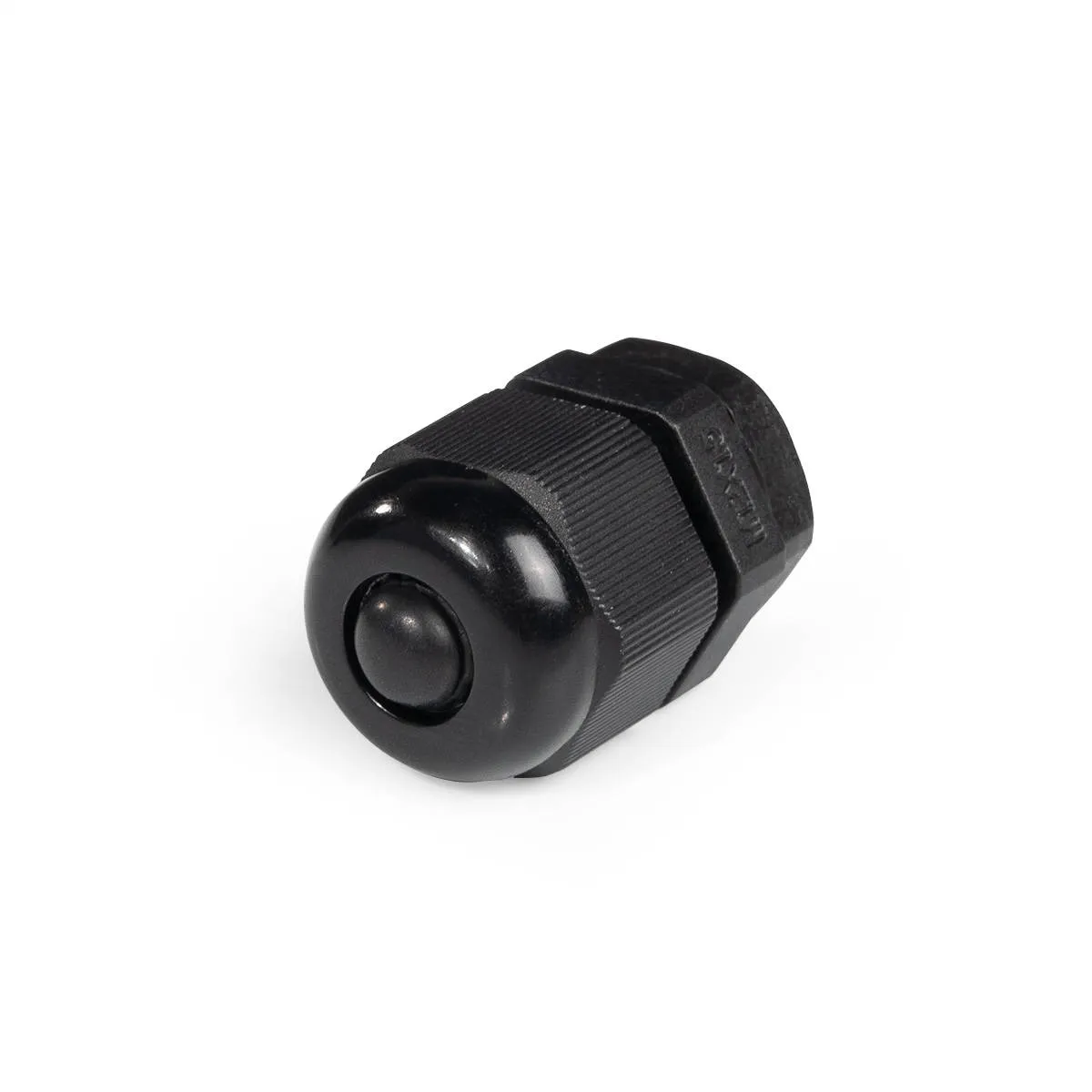

Plastic cable gland M12 (4-8 mm) 88159 Fortisflex
SKU: 88159
ETIM: EC000441
13 ₽
Preorder
Order multiple: 100
• Designed for the hermetic entry and exit of cables and wires into switchgear enclosures
• Enclosure material: nylon 6.6, self-extinguishing, halogen-free, UV-resistant
• Sealing material: neoprene
• Color: black
• Operating temperature: from -40 °C to +100 °C, short-term 120 °C
• Thread type: M-metric according to EN 60423
• The locknut design features special locking notches to prevent self-loosening
• IP68 protection rating
• Dielectric strength: 60 kV/mm
• Specific resistance: 1*1012 Ohm cm
• Resistant to synthetic oils and all types of fuel
• UV resistant and recommended for outdoor installation
• Wrench size marking on the fastening nut
• Protective membrane prevents dust ingress
• Recommended tools:
• hydraulic hole punching systems: PGPO-60, PGPO-60A
• hydraulic hole punching presses: PGRO-60A, PGROu-60A, PGROp-60A
• NMPO-MG die set for MG series cable gland installation
| Material type/grade | Polyamide (PA) |
| For gas explosion hazardous areas | No (without) |
| For cable diameter to | 8 мм |
| For cable diameter from | 4 мм |
| For dust explosion protection zone (EU ATEX directives) | No (without) |
| Design | Straight |
| Flat cable gland | Yes |
| Material | Plastic |
| Halogen-free | Yes |
| Nominal metric/PG thread size | 0 |
| IP protection rating | IP68 |
| Operating temperature to | 100 град.C |
| Operating temperature from | -40 град.C |
| Thread type | Metric |
| Sealing type | Sealing ring (gasket) |
| Color | Black |
| Thread pitch | 1.5 мм |
