Price on request
Order multiple: 50 шт
From our own stock you can buy 10 шт in any quantity. Above that — supply on order, in multiples of 50 шт.
Analogues by specifications
Stock by warehouse

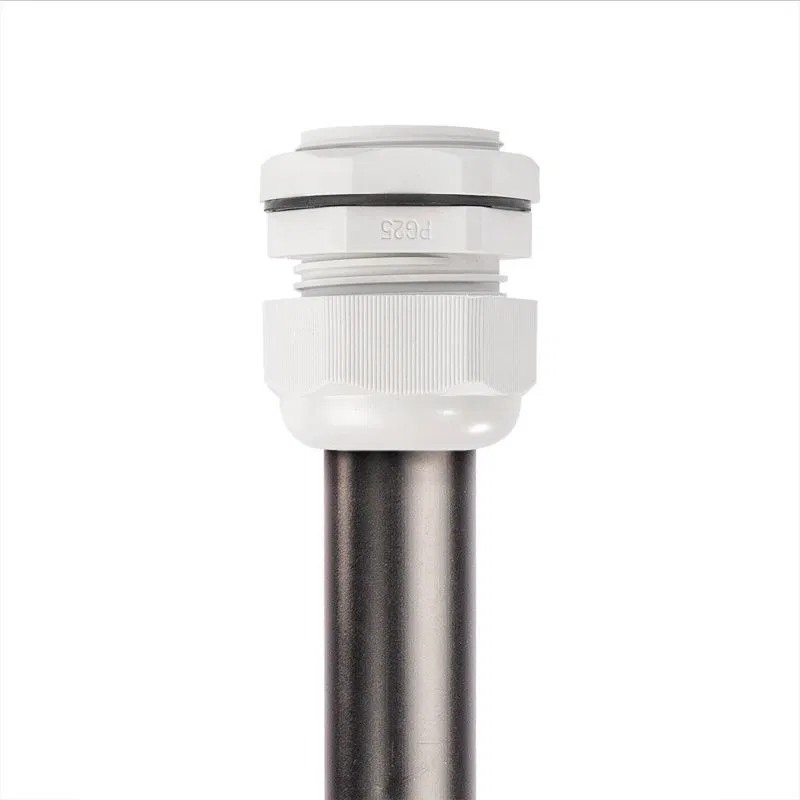

• Designed for the hermetic entry and exit of cables and wires into switchgear enclosures
• Enclosure material: nylon 6.6, self-extinguishing, halogen-free according to UL94V2
• Seal material: neoprene
• Color: light gray
• Operating temperature: from -40 °C to +100 °C, short-term +120 °C
• Thread type: PG- electrical according to DIN 40430
• The compression nut design features special locking notches to prevent self-loosening
• IP 68 protection rating
• Resistant to synthetic oils and all types of fuel
• Wrench size marking on the fastening nut
• Protective membrane prevents dust ingress
• Recommended tools:
• hydraulic hole punching systems:
• PGPO-60
• PGPO-60A
• hydraulic hole punching presses:
• PGRO-60A
• PGROu-60A
• PGROp-60A
• NMPO-PG die set for installing PG series cable glands
Material type/grade
Polyamide (PA)
For gas explosion hazardous areas
No (without)
For cable diameter to
20 мм
For cable diameter from
16 мм
For dust explosion protection zone (EU ATEX directives)
No (without)
Kink protection
No
Design
Straight
Flat cable gland
No
Material
Plastic
Halogen-free
Yes
Nominal metric/PG thread size
0
IP protection rating
IP65
Operating temperature to
100 град.C
Operating temperature from
-40 град.C
Thread type
PG
Sealing type
Sealing ring (gasket)
Color
Light grey
Thread pitch
1.5 мм
0
★★★★★
