Analogues by specifications

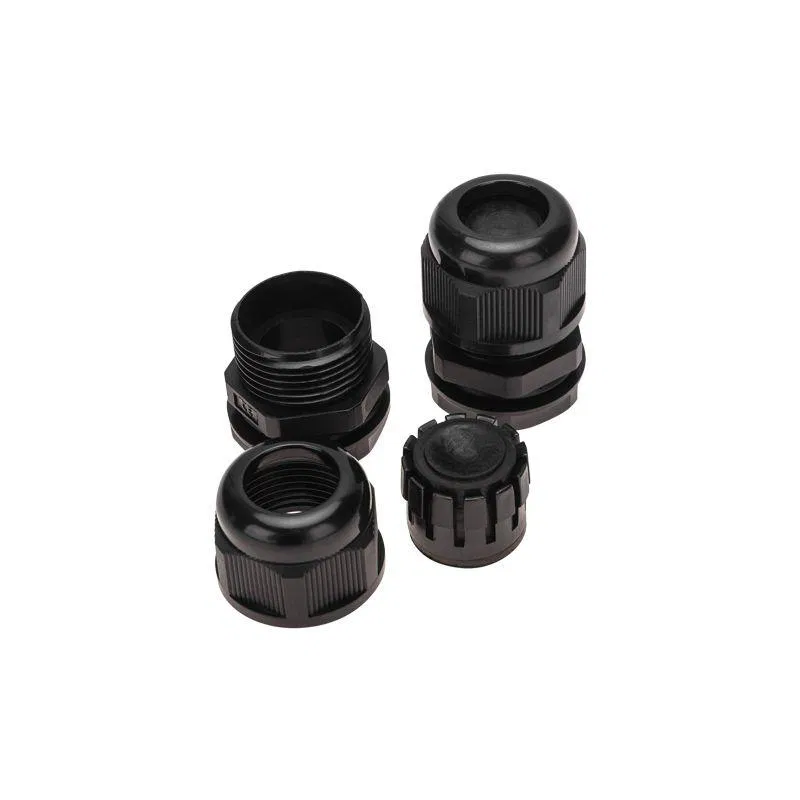

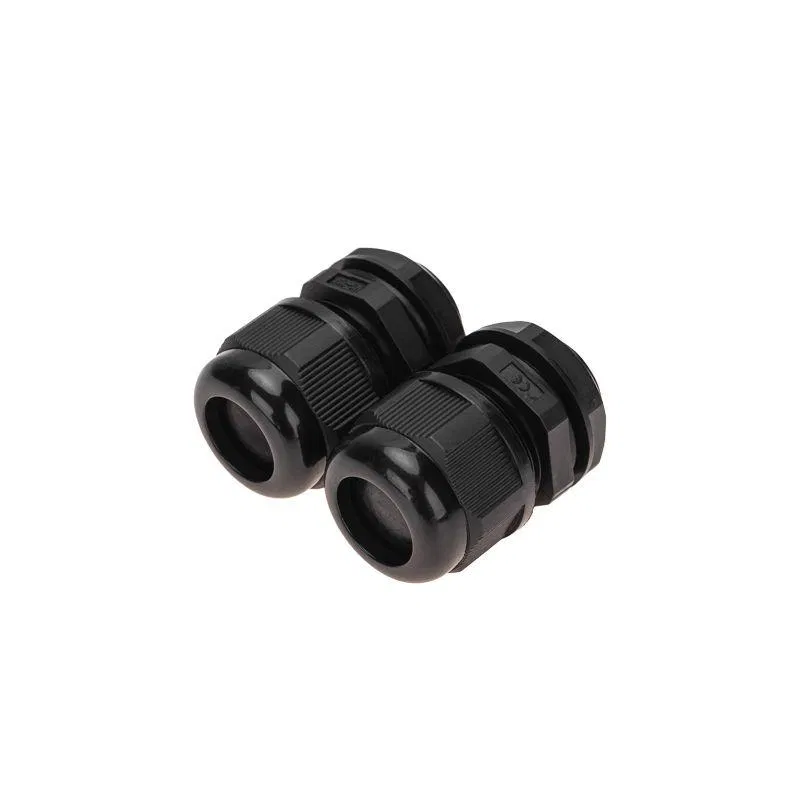

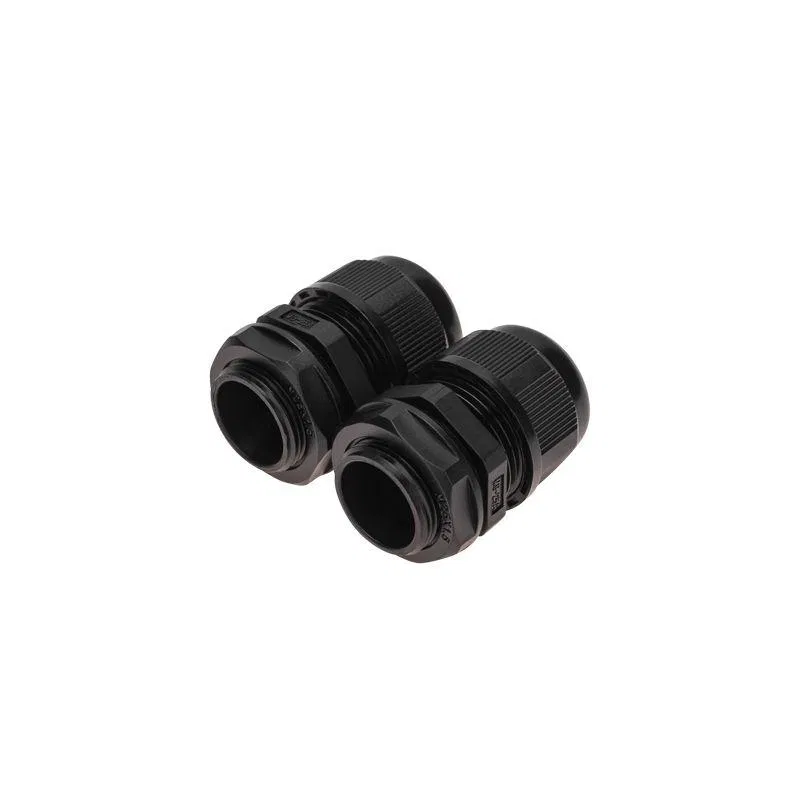

Cable gland is designed to secure a cable when entering electrical equipment. For example, into switchgear cabinets, enclosures, or control panels intended for outdoor use, in basements, in conditions of sea fog, increased pollution, etc. The product protects the cable from damage by sharp edges of the equipment during operation.
The cable gland housing is made of nylon, the seal is made of neoprene. Thanks to the materials used, the product is resistant to aggressive environments such as salt water, weak acids, alcohol, oils, fats, general-purpose solvents, etc.
The special design of the nut prevents unscrewing.
Classification: by cable diameter within the specified range before and after its fastening.
Material type/grade
Polyamide (PA)
For armoured cable
No
For gas explosion hazardous areas
No (without)
For cable diameter to
13 мм
For cable diameter from
18 мм
For dust explosion protection zone (EU ATEX directives)
No (without)
Kink protection
No
Design
Straight
Flat cable gland
No
Material
Plastic
Halogen-free
Yes
Nominal metric/PG thread size
25
IP protection rating
IP68
Operating temperature to
100 град.C
Operating temperature from
-40 град.C
Thread type
Metric
Sealing type
Sealing ring (gasket)
Impact-resistant
Yes
Color
Black
Thread pitch
1.5 мм
Screened
No
EMC-compatible version
No
