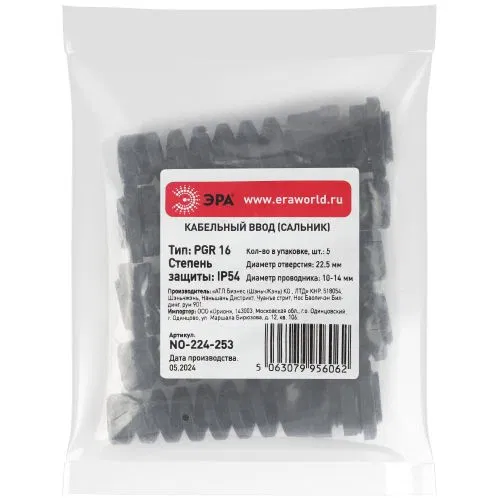

Cable gland PGR 16 d10-14mm (d screwdriver 22.5mm) IP54 with flexible outlet (pack 5pcs) Era B0065203

PGR cable entries (glands) allow for the safe and durable entry of electrical conductors into distribution boards, junction boxes, and electrical installations. They are installed at the points of conductor entry and exit into the electrical installation using a pipe (gas) wrench and protect against the penetration of dust and moisture inside, as well as protect conductors from mechanical damage. PGR series cable entries (glands) with a flexible strain relief consist of a lock nut, a sealing ring, a body, a fixing clamp, a gland, a gasket, and a spiral flexible strain relief. The elongated spiral strain relief serves to protect the conductor from bending and mechanical damage at the entry/exit point. They are installed at the points of conductor entry and exit into the electrical installation and protect against the penetration of dust and moisture inside according to the IP54 standard. Design features: · IP54 protection rating · Thread type: PG-inch electrical according to DIN 40430 · The spiral flexible strain relief prevents conductor breakage at the connection point with the sheath. · Resistance to synthetic oils and all types of fuel · The clamping nut design has special locking notches to prevent loosening · The wrench size marking is applied to the clamping nut · Housing and clamping nut material: nylon, non-flammable, halogen-free according to UL94V2, UV-resistant · Seal and gasket material: neoprene
