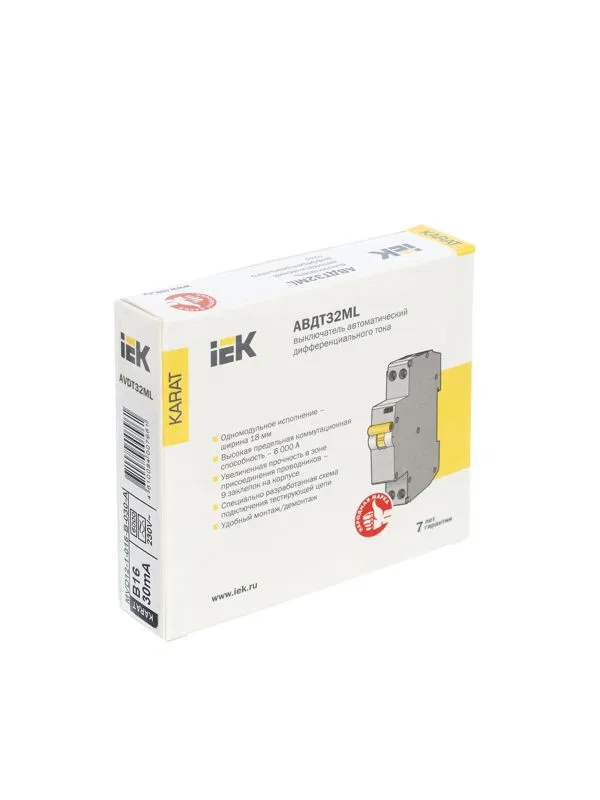

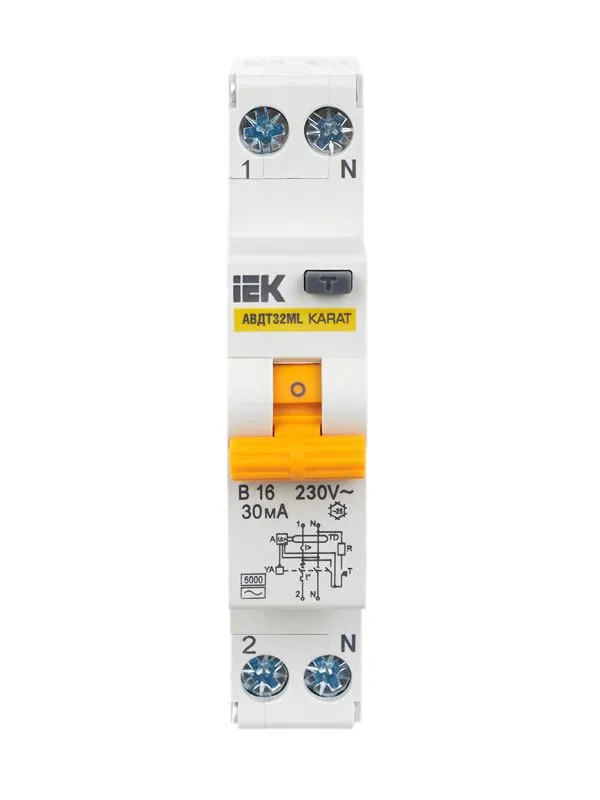

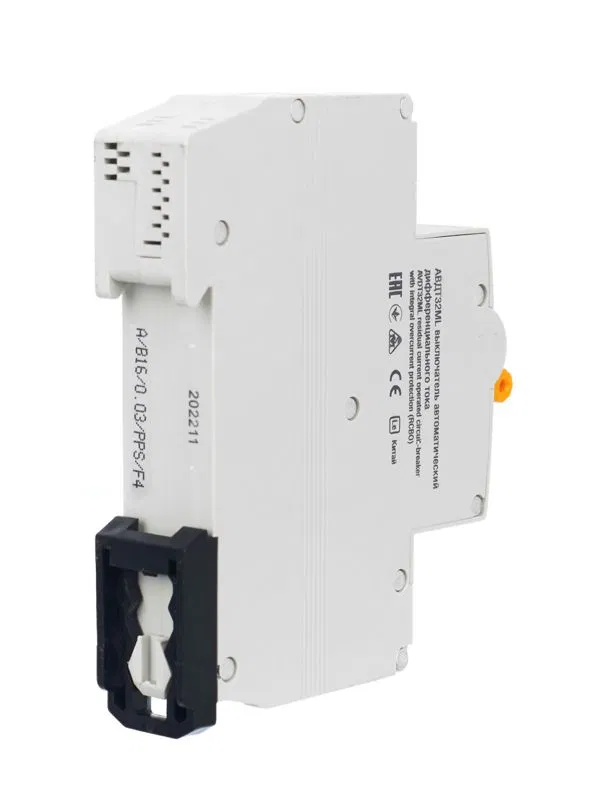

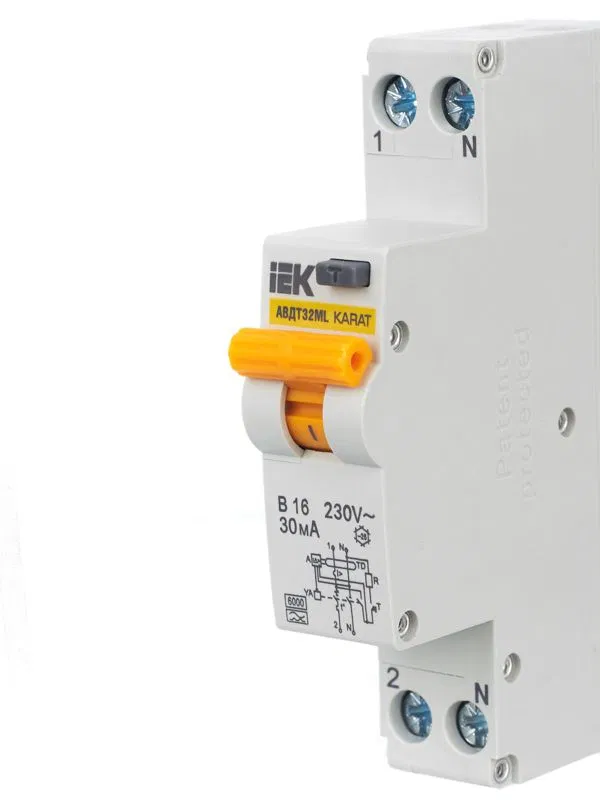

RCBO AVDT32ML type A B16 30mA KARAT IEK MVD12-1-016-B-030-A
SKU: MVD12-1-016-B-030-A
ETIM: EC000905
2,873 ₽
Get back 28 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Overvoltage protection
Yes
Protection class per GOST IEC 61140
0
Number of protected poles
1
Number of poles
1P+N
Maximum supply cable cross-section
6 кв.мм
Mechanical durability
≥ 15000
Tightening torque of contact terminal screws
1
Availability of residual current release
Yes
Thermal release available
Yes
Electromagnetic release present
Yes
Electronic release available
No
Rated impulse withstand voltage
4
Rated non-tripping residual current
0.5IΔn
Rated differential making and breaking capacity
500
Rated breaking capacity in accordance with EN 60898
6 кА
Rated breaking capacity per IEC 60947-2
6 кА
Rated voltage
230 В
Rated current
16 А
Rated leakage current
0.03 мА
Total number of poles
2
Breaking capacity per IEC 61009-1
6000
Operating mode
Continuous
Breaking capacity
6.0 кА
Current type
Alternating current (AC)
With switched neutral conductor
Yes
Tripping system
Thermal, electromagnetic

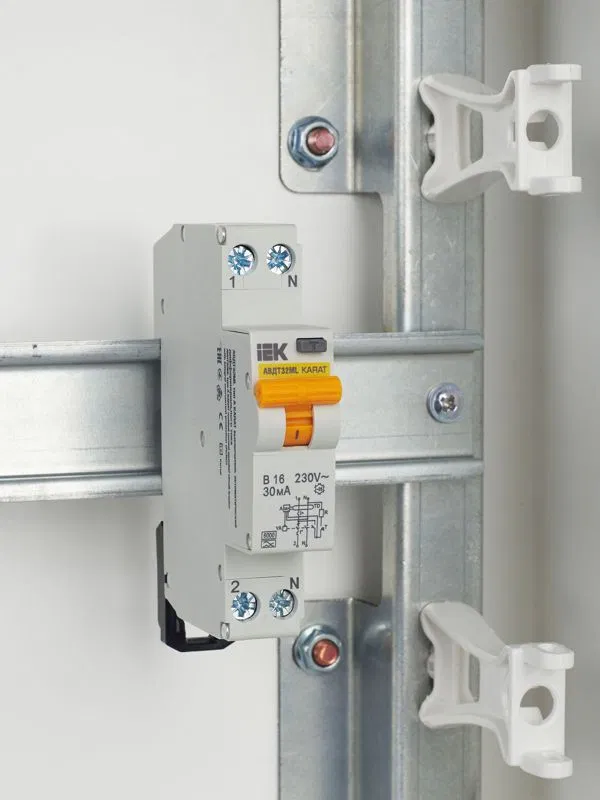

Mounting method
On DIN rail
IP protection rating
IP20
Operating temperature
-40...50
Residual current type
A
Connection type
Screw connection
Tripping characteristic
B
Frequency (Hz)
50 Hz
Width in modular units
1
Electrical wear resistance
≥ 6000
